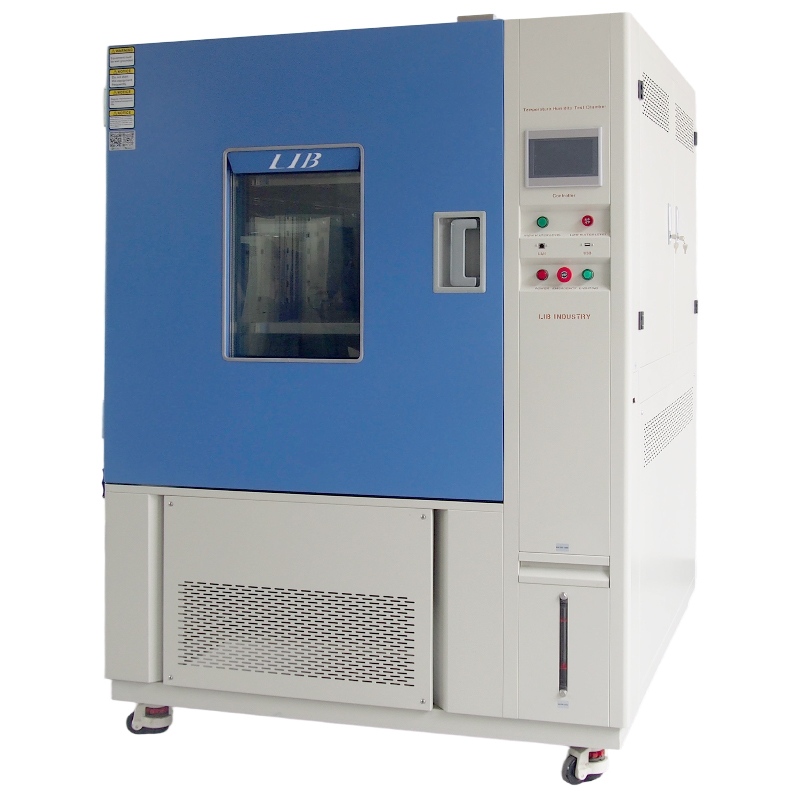

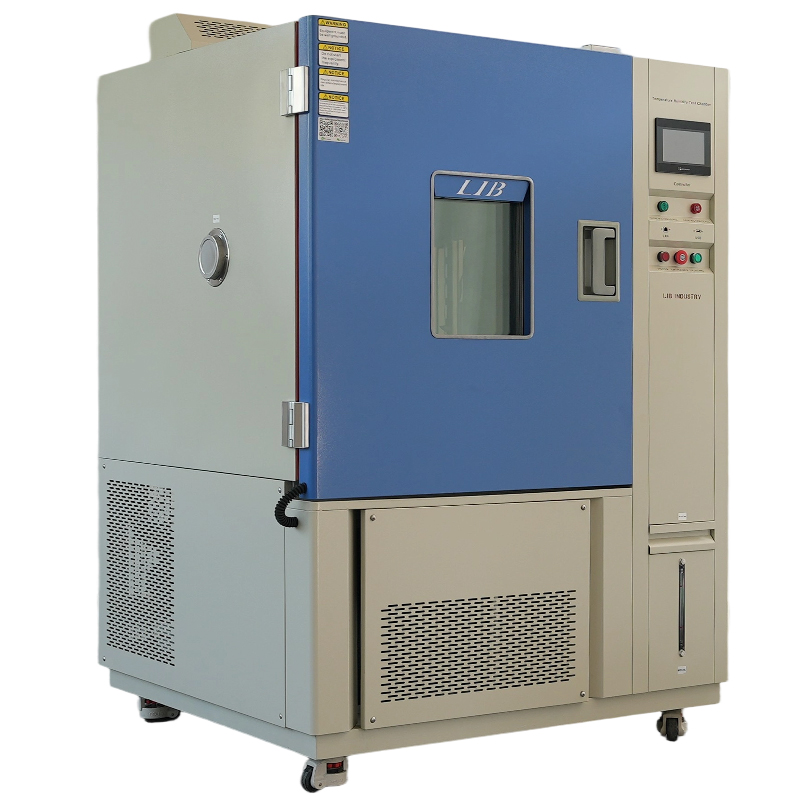

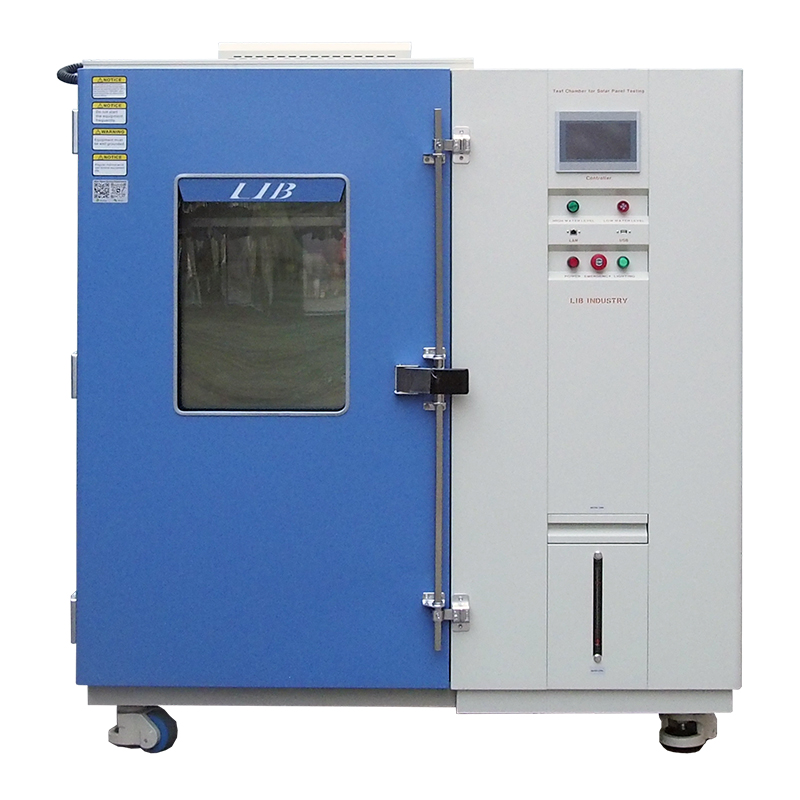

Temperature Humidity Test Chamber – Heat, Cold and Humidity

CHARACTERISTIC
MODEL
Video

CHARACTERISTIC

Wide temperature/humidity ranges and volume selection
Temperature control and display unit
Humidity control and display unit
PID programmable color touch screen controller, network connection computer
Multi-language interface
USB and Ethernet

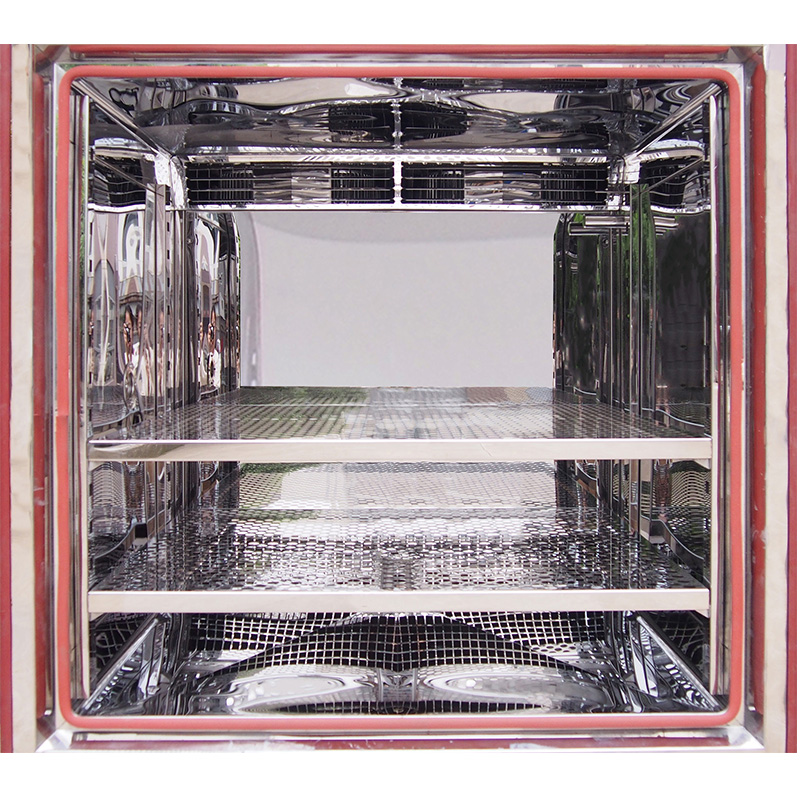

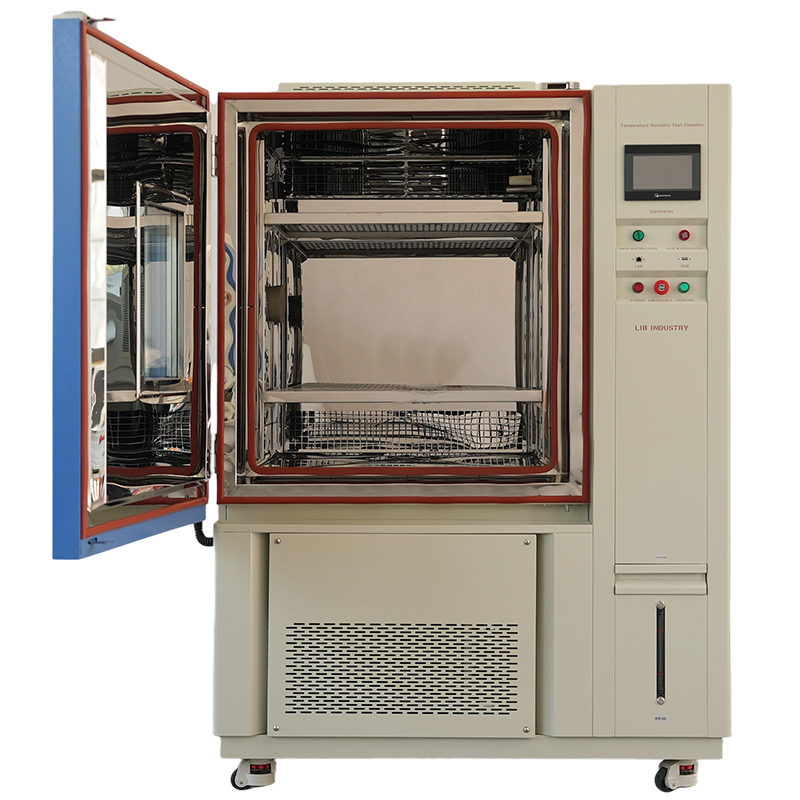

The internal material is 304 stainless steel, mirror surface
SUS304 stainless steel punching sample shelf 2pcs

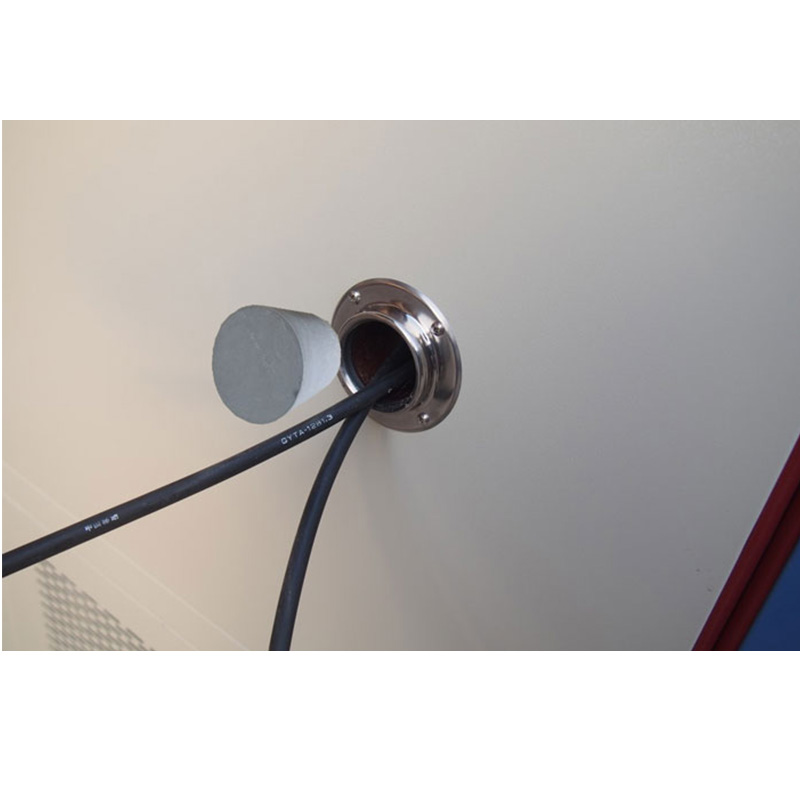

A standard test hole, located at the left side of the work room
Water re-circulation system that reduced water use and a series of water pipes
Automatic control of the water intake of equipment
Install 4 castors for ease moving, and with brakes function.
Mechanical compression refrigeration system
Low temperature can cool down to -86℃
Long time to perform 85℃ 85%RH test
The Refrigerant can be replaced by R449A/R508B
Safety protection system
Standard and custom
CE mark

Product Details

Controller

PID programmable color touch screen controller, network connection computer;
Can edit 100 programs 20 segment;
LIB also can preset program into the controller based on user testing requirements;
The set system language is English for standard.

Cooling system
The refrigerant completes a refrigeration cycle through four basic processes of evaporation, compression, condensation, and throttling in the system.

Application Area

Temperature Humidity Test Chamber – Heat, Cold and Humidity is widely used in automobile, aerospace, materials, electronics, military, paintings, battery, cable, pv panels, pharmaceuticals, navigation, commodity industry, for testing the function and service life of the product by simulating harsh natural environment.

MODEL

Model	TH-100	TH-225	TH-500	TH-800	TH-1000
Internal Dimension (mm)	400500500	500600750	700800900	80010001000	100010001000
Overall Dimension (mm)	86010501620	96011501860	118013502010	128015502110	150015502110
Interior Volume	100L	225L	500L	800L	1000L
Heat load	1000W
Temperature Range	A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃
Temperature Fluctuation	± 0.5 ℃
Temperature Deviation	± 2.0 ℃
Humidity Range	20% ~ 98% RH
Humidity Deviation	± 2.5% RH
Cooling Rate	1 ℃ / min
Heating Rate	3 ℃ / min
Cooling system	Mechanical compression refrigeration system
Controller	Programmable color LCD touch screen controller; Ethernet connection, PC Link
Water supply system	Automatic water supply，Water purification system
Safety Device	Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection
Exterior Material	Steel Plate with protective coating
Interior Material	SUS304 stainless steel
Power Supply	220V 50Hz / 380V 50Hz
Environmental Conditional	5℃～+35 ℃ ≤85% RH

Warranty

3 Years Warranty, Lifelong Follow-up Services

LIB test chambers product all provide a three-year long-term warranty, and lib provides free maintenance and after-sales service within three years from the date of purchase.

Service

Professional customer service team, sales staff, after-sales team to solve customers’ problems online at any time. We set up agent centers and local service centers to improve service efficiency.

LIB Industry concentrates on providing the Turn-key solution for environmental testing, that research, design, producing, commissioning, delivery, install and training, provide the whole products and service according to customer’s requirements. Tell us what you need, let us help you.
