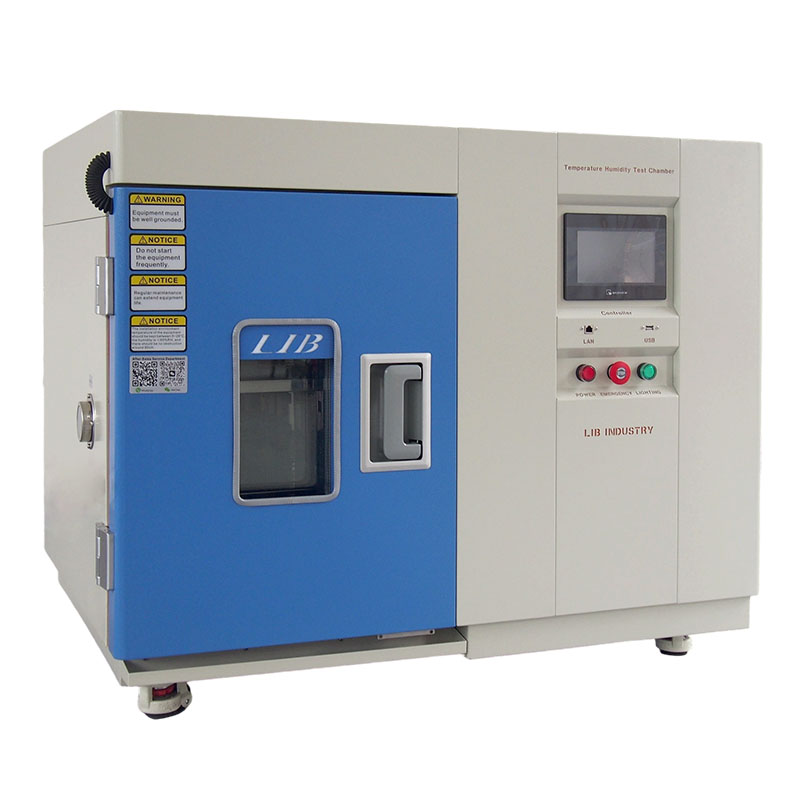

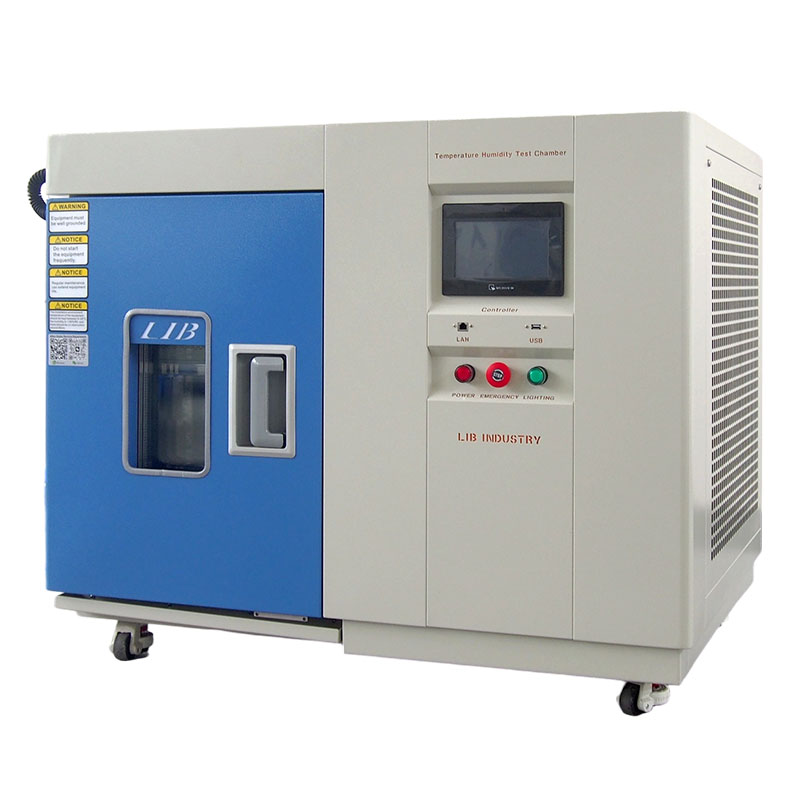

Benchtop Temperature humidity Test Chamber

INTRODUCTION

30L, 50L min benchtop temperature humidity test chambers are small, bench-top type test chamber for simulating temperature and humidity environments,low types available -20℃/-40℃/-60℃/-70℃,10% – 98% RH.

Included only temperature, temperature and humidity test chambers. Widely used in electronics, automotive,battery, manufacturing, research and laboratories. Its very good advantages are small, desktop, small footprint, portable, stable performance and Full function.

CHARACTERISTIC

  • Small, portable, benchtop design
  • Wide temperature ranges and volume selection
  • Reliable performance
  • Temperature control and display unit
  • Humidity control and display unit
  • Programmable color LCD touch screen controller
  • Multi-language interface
  • USB and Ethernet
  • Mechanical compression refrigeration system
  • Build-in water tank
  • Adjustable and removable sample shelves
  • Safety protection system
  • CE mark, ISO17025 calibration



Product Details

Controller

PID programmable color touch screen controller, network connection computer;
Can edit 100 programs 20 segment;
LIB also can preset program into the controller based on user testing requirements;
The set system language is English for standard.

Build-in Water Tank
The water stored in the built-in water tank meets the needs of the test. it will alarm when it’s low water level, At this time, it is necessary to add enough water till to the high water level.



Application Area

Benchtop Temperature humidity Test Chamber is widely used in automobile, aerospace, materials, electronics, military, paintings, battery, cable, pv panels, pharmaceuticals, navigation, commodity industry, for testing the function and service life of the product by simulating harsh natural environment.

MODEL

Benchtop Temperature Chamber



Model T-50 T-80
Internal dimension (mm) 320*350*450 400*400*500
Overall dimension (mm) 800*1050*950 900×1100×1000
capacity 50L 80L
Temperature range A:-20℃ ~+150 ℃
Low type B: -40℃   C:-70℃   D: -86℃
Temperature fluctuations ± 0.5 ℃
Temperature deviation ± 2.0 ℃
Heating rate 3 ℃ / min
Cooling rate 1 ℃ / min
Controller Programmable color LCD touch screen controller, Ethernet , USB
Cooling system Mechanical compression refrigeration system

Safety device

over-temperature protection; over-current protection; Refrigerant high-pressure protection;  Earth leakage protection;
Exterior material Steel Plate with protective coating
Interior material SUS304 stainless steel

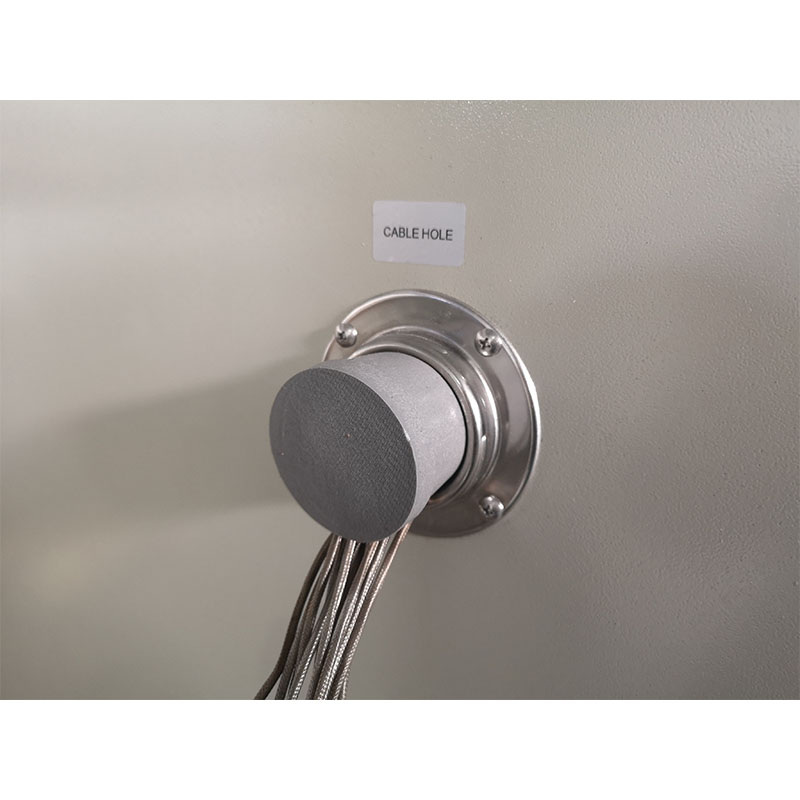

Standard configuration 1 Cable hole (Φ 50) with plug; 2 shelves
Power Supply 220V 50HZ



Benchtop Temperature and Humidity Chamber



Model TH-50 TH-80
Internal dimension (mm) 320*350*450 400*400*500
Overall dimension (mm) 800*1050*950 900×1100×1000
capacity 50L 80L
Temperature range A:-20℃ ~+150 ℃
Low type B: -40℃   C:-70℃   D: -86℃
Humidity range 20% ~ 98% RH
Temperature fluctuations ± 0.5 ℃
Temperature deviation ± 2.0 ℃
Heating rate 3 ℃ / min
Cooling rate 1 ℃ / min
Humidity deviation ± 2.5% RH
Controller Programmable color LCD touch screen controller, Ethernet , USB
Cooling system Mechanical compression refrigeration system
Safety device Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection, Earth leakage protection
Exterior material Steel Plate with protective coating
Interior material SUS304 stainless steel
Power Supply 220V 50HZ



Warranty

3 Years Warranty, Lifelong Follow-up Services

LIB test chambers product all provide a three-year long-term warranty, and lib provides free maintenance and after-sales service within three years from the date of purchase.



Service

Professional customer service team, sales staff, after-sales team to solve customers’ problems online at any time.  We set up agent centers and local service centers to improve service efficiency.

LIB Industry concentrates on providing the Turn-key solution for environmental testing, that research, design, producing, commissioning, delivery, install and training, provide the whole products and service according to customer’s requirements. Tell us what you need, let us help you.
