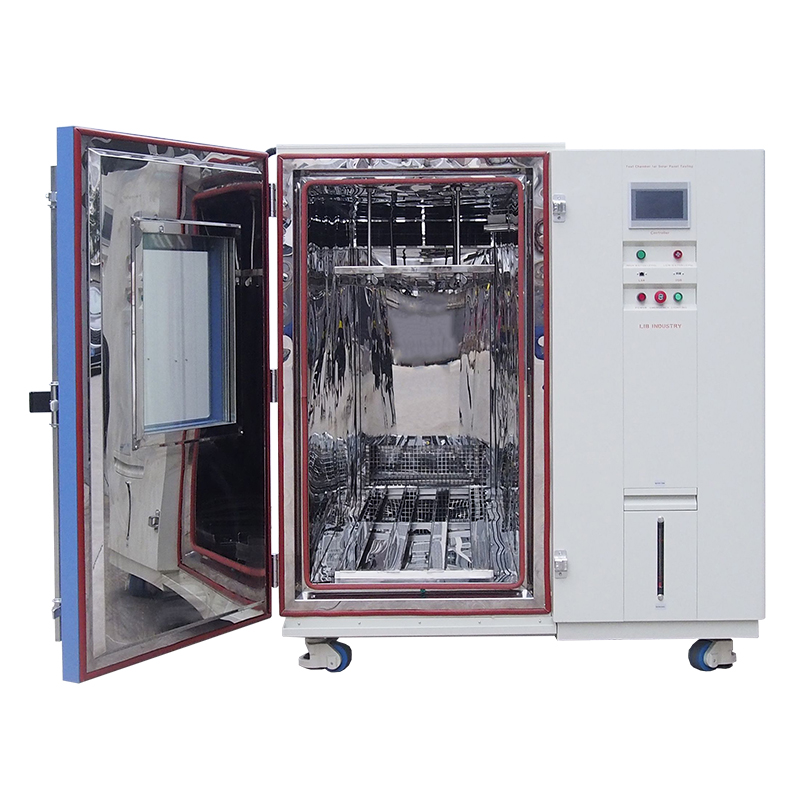

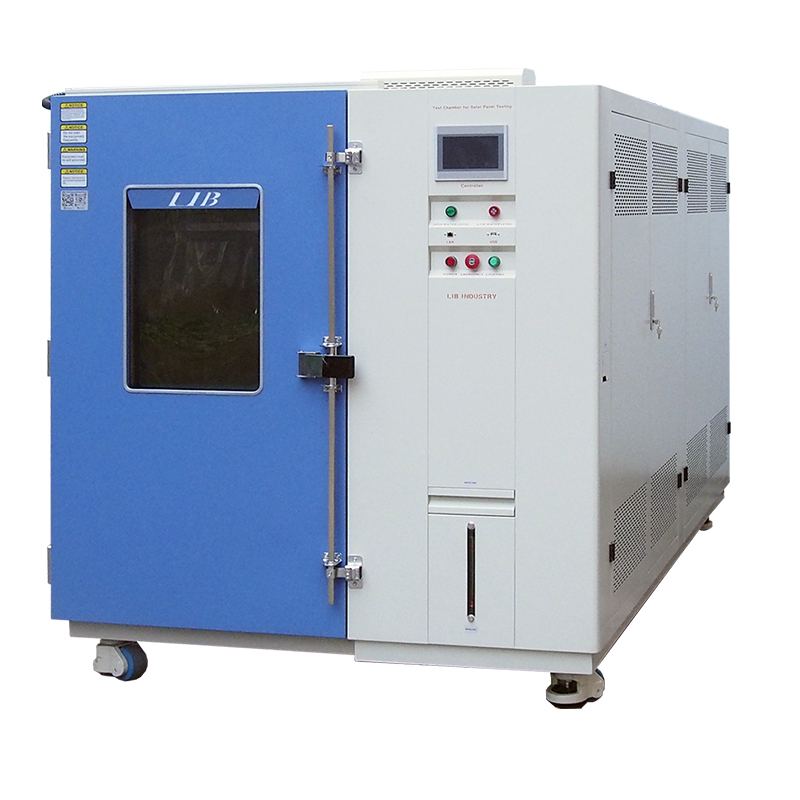

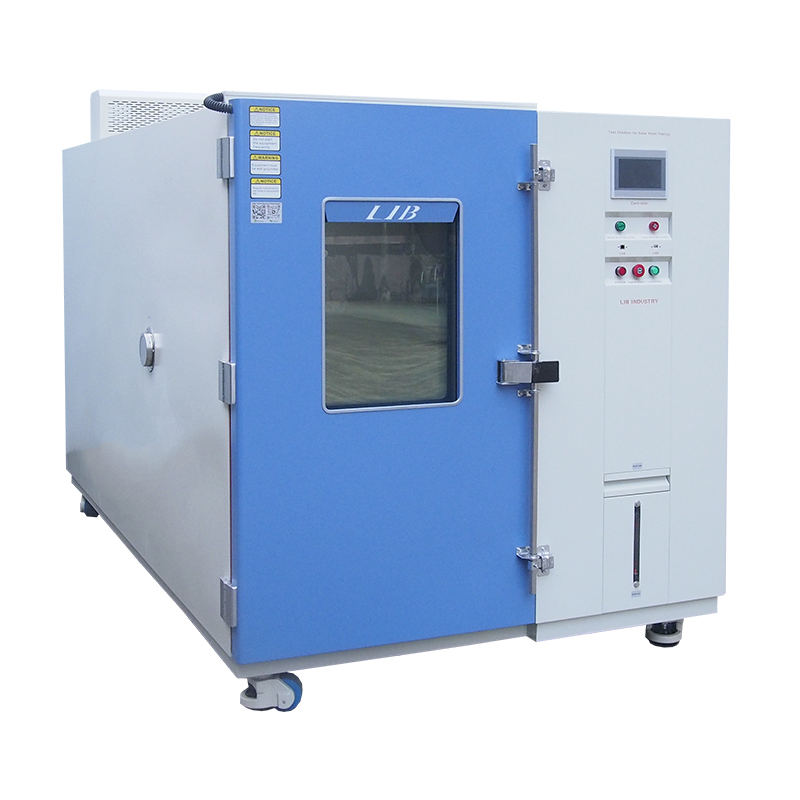

PV Solar Panel Environmental Test chamber


Environmental test chamber is for PV modules (solar panels) thermal cycling, humidity freeze cycle, and damp heat RH testing, to test whether PV modules can withstand high temperature with humidity and low temperature, to test its fatigue and thermal failure after temperature repeated changes, to confirm its thermal stress PV modules generated under high humidity circumstance and capability of long-term resistance to moisture penetration. This test chamber is widely used in solar panels testing.

Different models let you choose size, configuration and performance to suit many types of solar panels for IEC, UL test methods.


  • Test chambers meet IEC 61215, IEC61646,UL-1703 and similar test methods
  • Thermal cycle test – 50 and 200 cycles from -40℃ to +85℃
  • Humidity freeze test – 10 cycles from +85℃ & 85%RH to -40℃
  • Damp heat test – 1000h at 85℃ & 85%RH
  • Different models to suit various size of PV Solar Panels

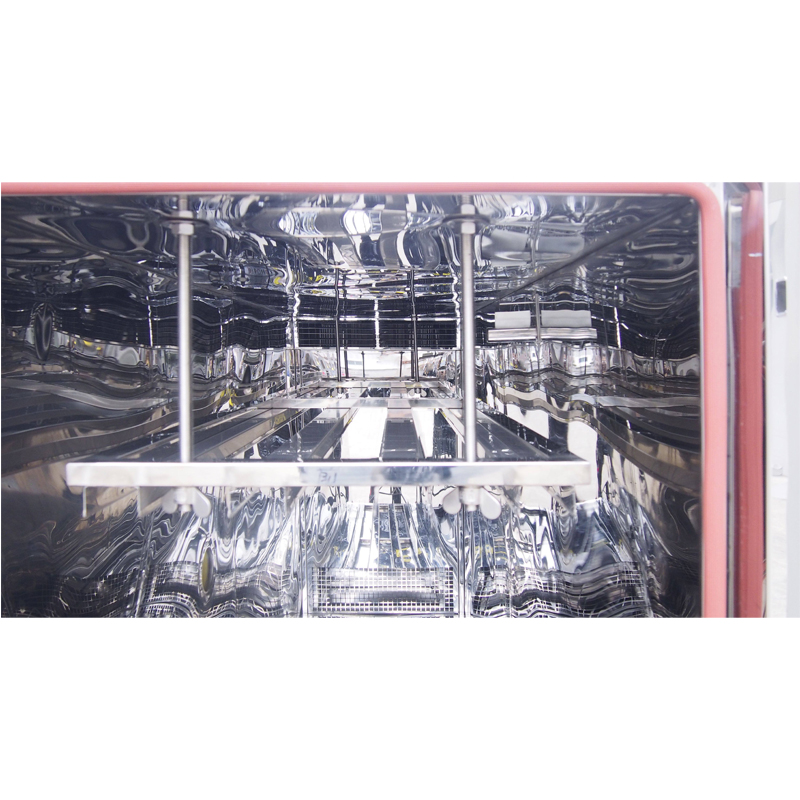

  • Supporting racks for fix PV panels
  • Adjusting heat & cooling change rate
  • Reliable performance
  • Temperature control and display unit
  • Humidity control and display unit
  • Programmable color LCD touch screen controller
  • Multi-language interface
  • USB and Ethernet
  • Mechanical compression refrigeration system

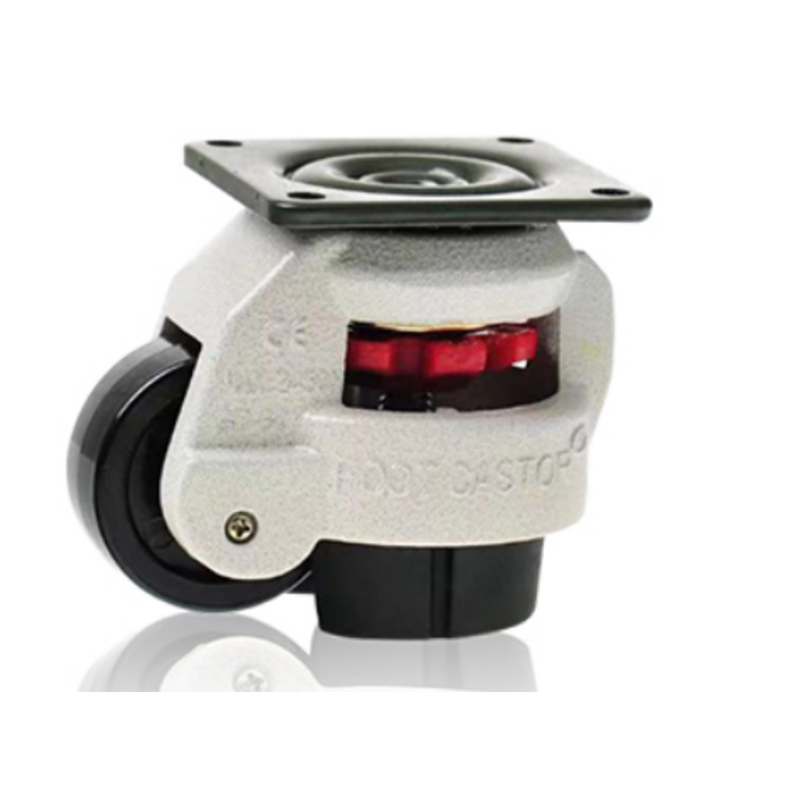

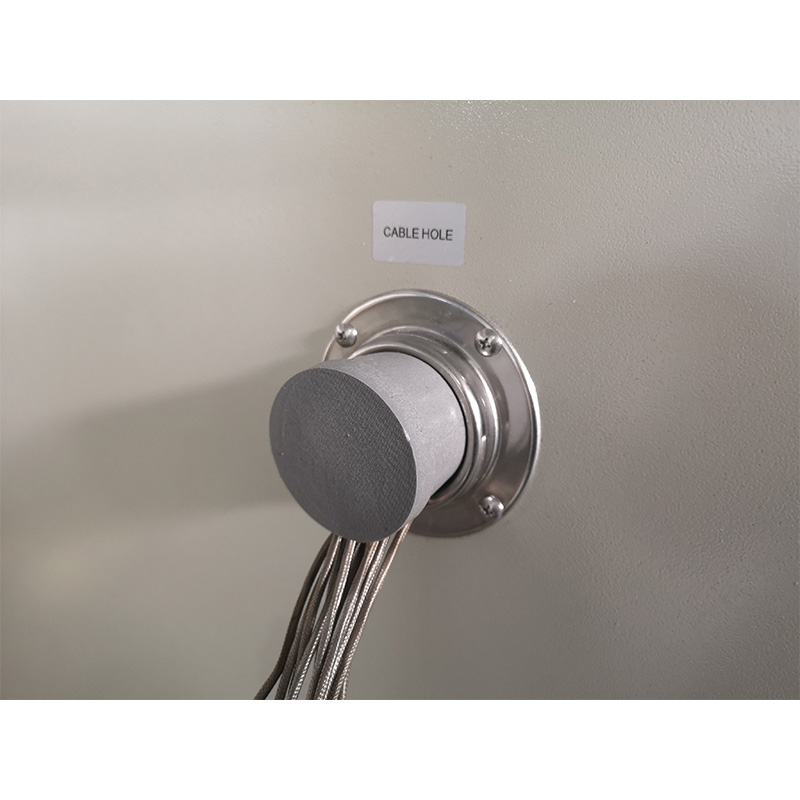

  • Casters, racks, and cable port are standard
  • Build-in water tank
  • Safety protection system
  • CE mark


Application Area

PV Solar Panel Environmental Test chamber is mainly used in pv panels industry, for testing the function and service life of the product by simulating outdoor harsh natural environment.




Internal size(mm)

1300(D) * 700(W) * 1350(H)

External size(mm)

1900(D) * 1100(W) * 1750(H)

Effective volume

1220Liters  (1.22m3)

Temperature range

-40°C~+100°C, controllable

Temperature fluctuation


Temperature uniformity


Humidity range

20%~98%RH, controllable

Humidity deviation

+2 /-3%RH

Heating rate

1 ~ 3.4 ℃/min (adjustable)

Cooling rate

1 ~ 3.4 ℃/min (adjustable)

Exterior material

Steel Plate with protective coating

Interior material

SUS304 stainless steel


Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB

Safety protection system

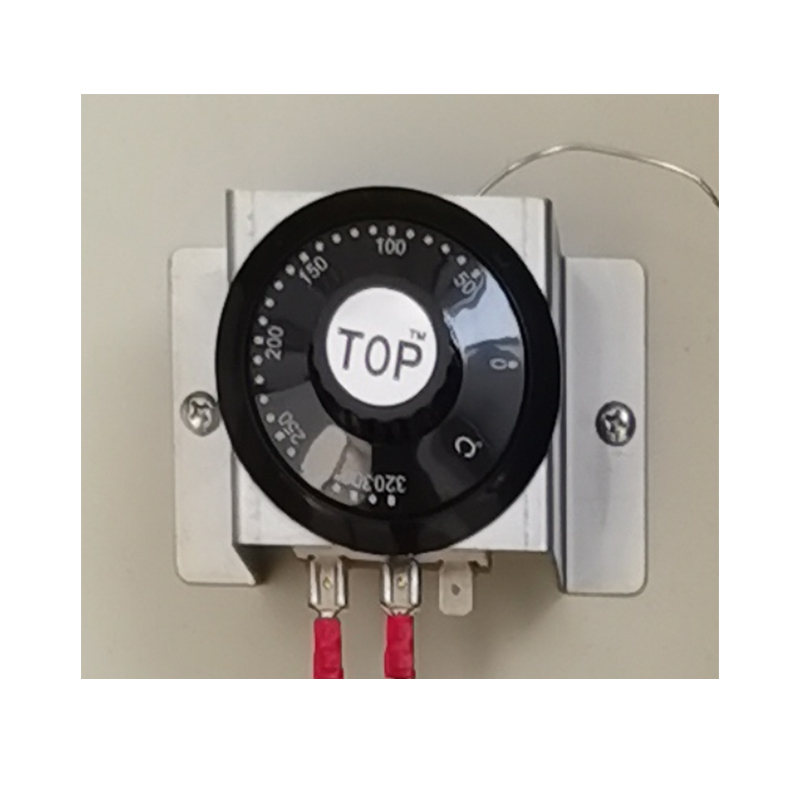

Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection; Refrigerant High-pressure Protection; Water Shortage Protection; Earth leakage Protection

Power supply

AC 380V 50Hz; 3Phase


IEC61215, UL 1703, IEC61646….



3 Years Warranty, Lifelong Follow-up Services

LIB test chambers product all provide a three-year long-term warranty, and lib provides free maintenance and after-sales service within three years from the date of purchase.
