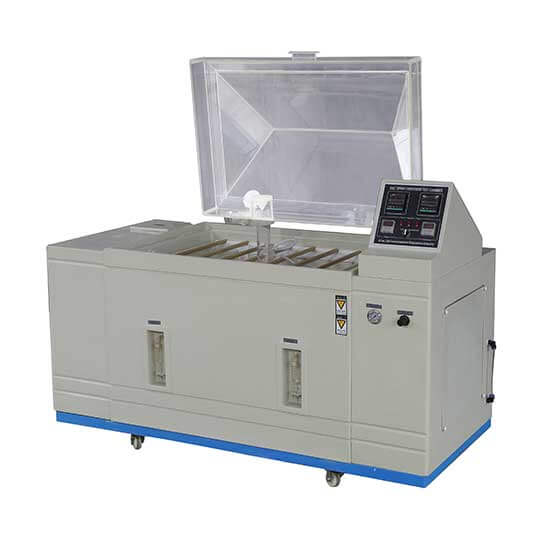

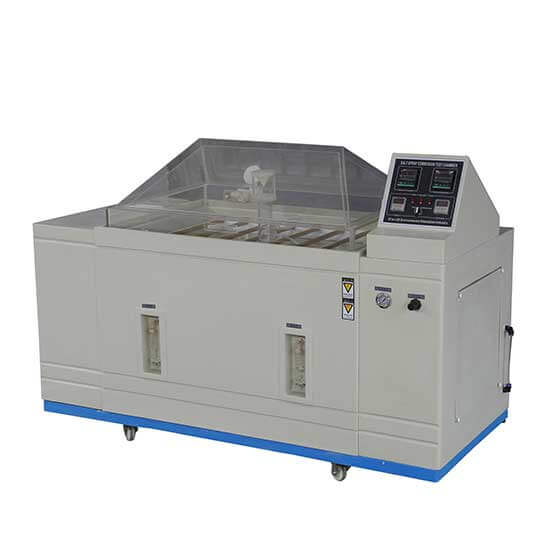

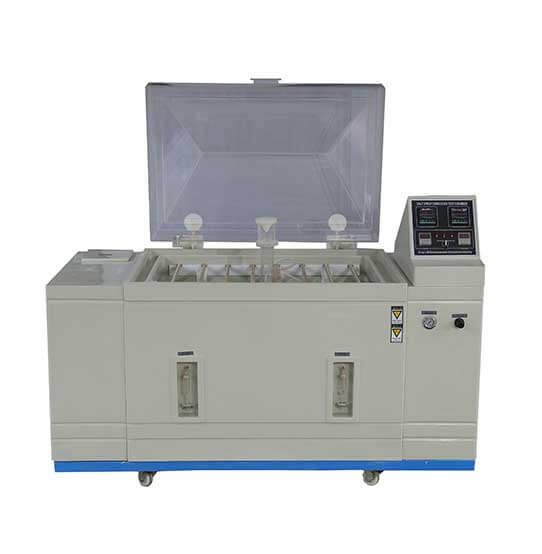

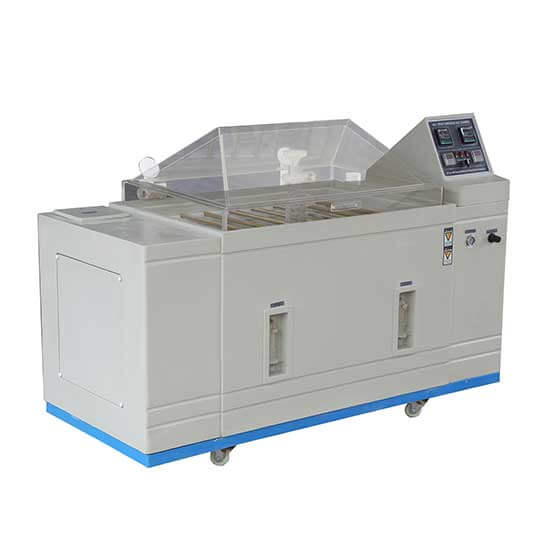

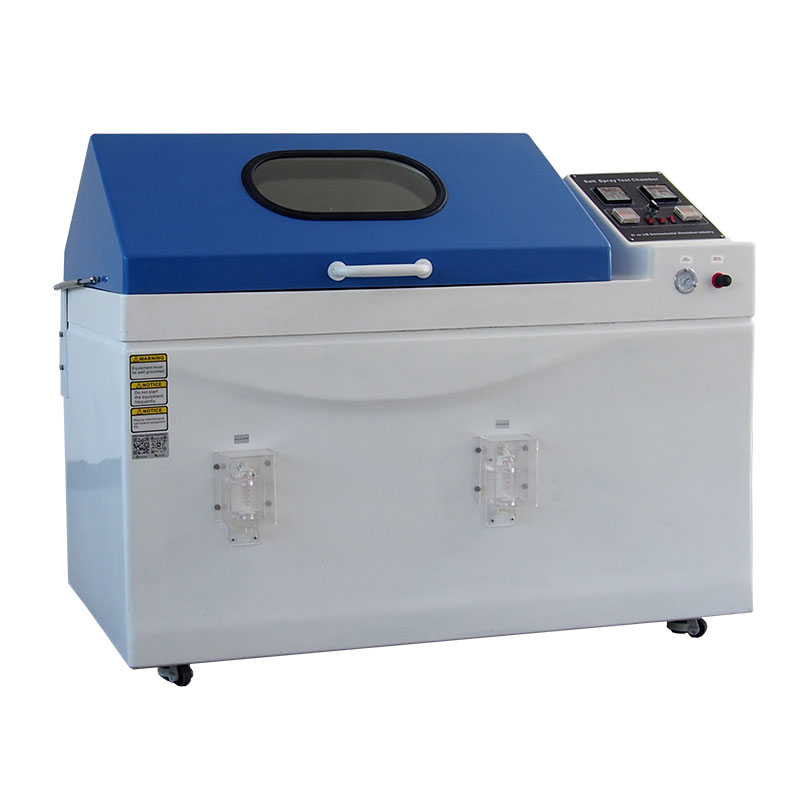

Salt Spray Corrosion Test Chamber

INTRODUCTION

Salt spray test chamber is used to test the anti-corrosion quality of all the materials surfaces of painting, coating, electroplating in condition of salt spray environment. Basic salt spray test chambers meet ASTM, ISO, IEC and other International Standards test methods, capacity available in 108L, 320L, 410L, 780L, 1000L, 1600L capacity.

Reliable performance, quick delivery and good service make this product very competitive.

CHARACTERISTIC

  • Temperature control and display unit
  • Salt fog measure and control
  • Continuous / periodic salt spraying

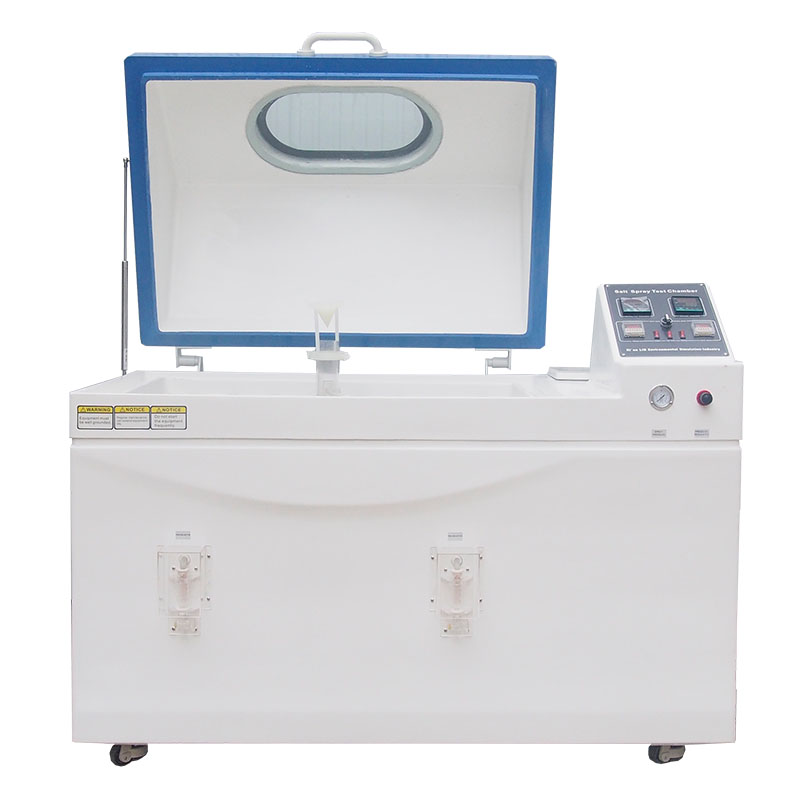

  • Transparent lid to observe samples

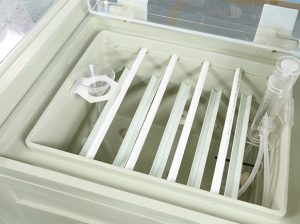

  • Standard sample holders
  • Casters and holders are standard
  • Hydrostatic hood seal
  • Standard and custom.
  • CE mark

PARAMETERS

Model S-150 S-250 S-750 S-010 S-016 S-020
Internal dimensions (mm) 470*590*400        640*1000*500 750*1100*500 1000*1300*600 900*1600*720 1000*2000*800
Overall dimensions (mm) 620*1400*1050 810*1800*1180 920*1900*1200 1200*2200*1400 1300*2500*1600 1420*3000*1850
Temperature range Ambient ~60℃
Humidity range 95% ~ 98% RH
Temperature fluctuations +/- 0.5 ℃
Temperature deviation: +/- 2.0 ℃
Test time 1~999 hours, settable
Spray deposition 1~2ml / 80cm2 · h
Spray type Continuous / Periodic
Temperature Controller LED display, P.I.D+S.S.R. microcomputer integrated controller
Temperature sensor PT100Ω / MV A-class

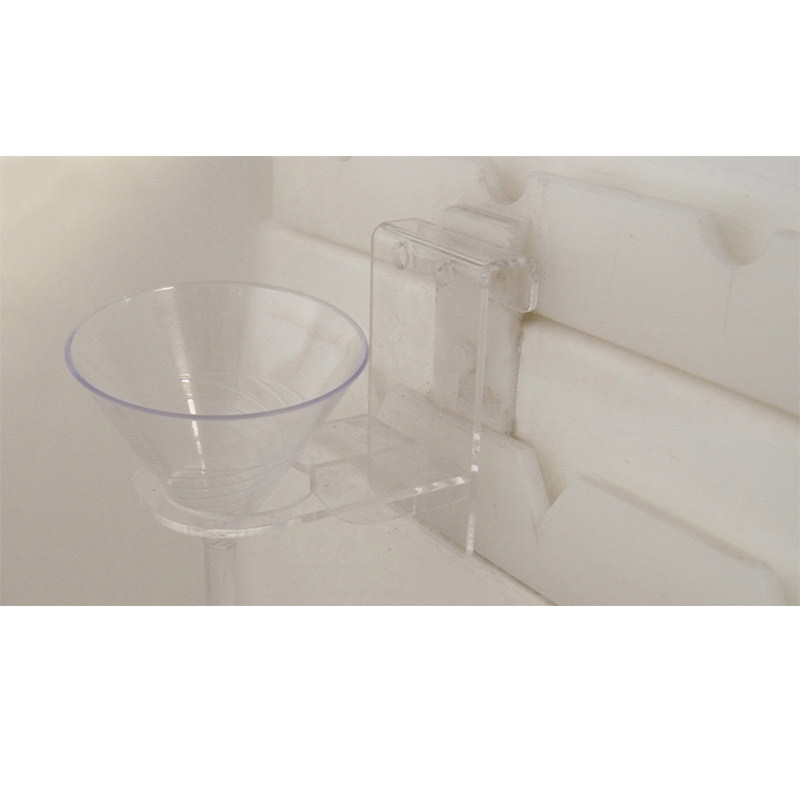

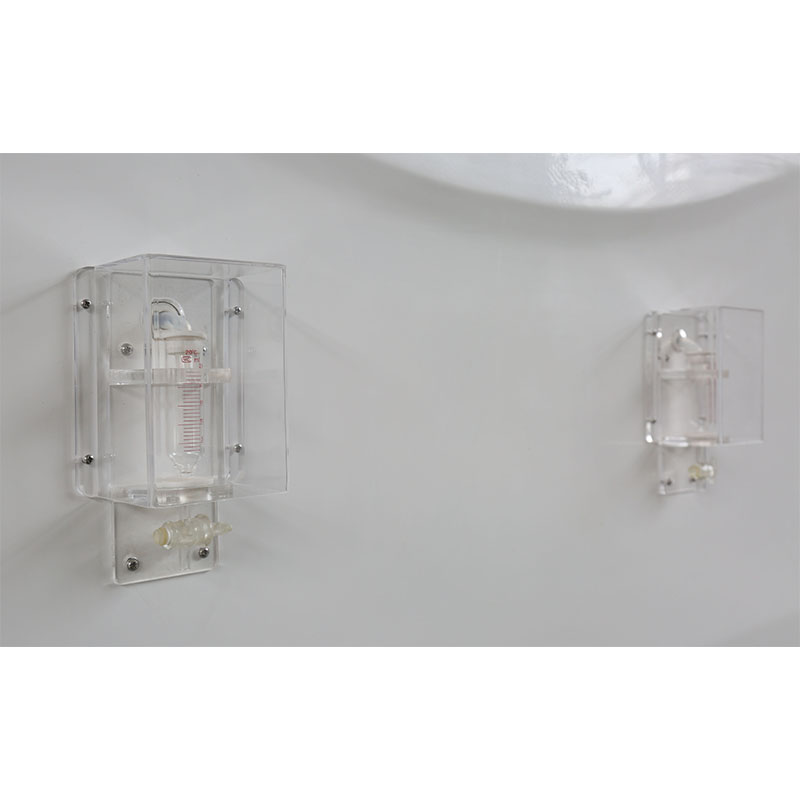

Salt fog collected Fog collector and fog measure cylinder
salt water filtration Salt water filter near the suction tubes( Avoid the nozzle blockage)
Salt water preheating Saturated air barrel

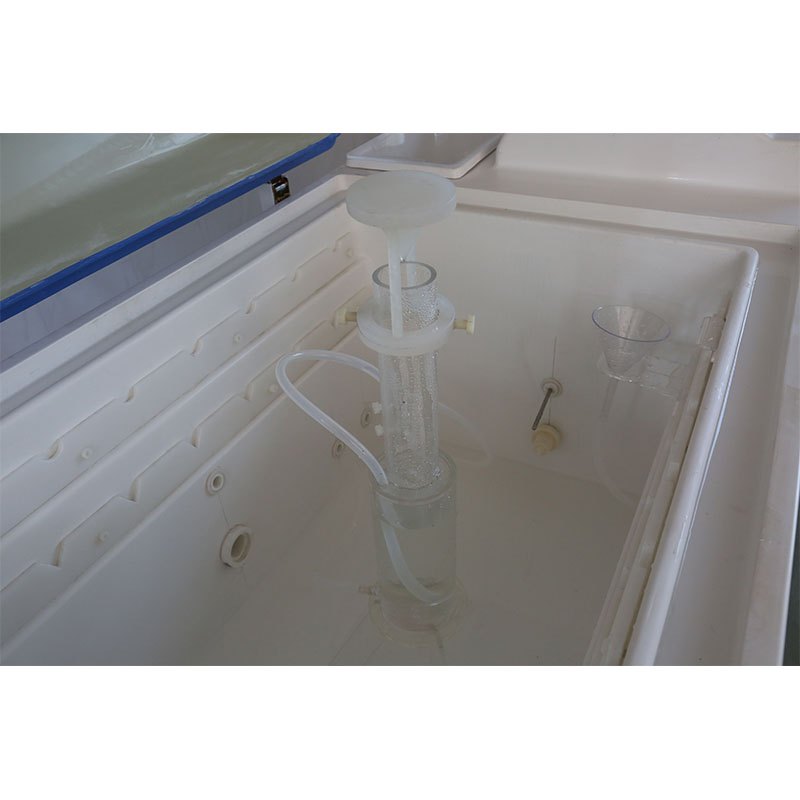

Spraying system Atomizer tower and Spray nozzles  (Fog is more fine and uniform distribution)
Interior /Exterior material Glass fiber reinforced plastics

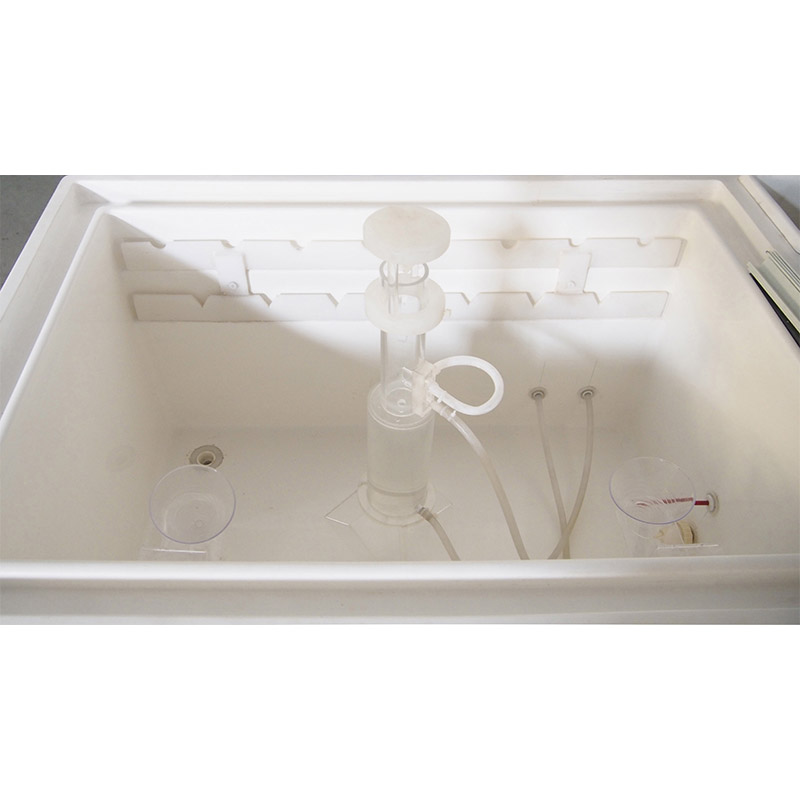

Standard configuration Sample bracket / sample holder / spray nozzle / Fog collectors / measure cylinder
safety device over-temperature protection, water shortage protection, over current protection, earth leakage protection
Sealing Hydrostatic hood seal
Standard ISO 3768/3769/3770, DIN50021-75, ASTM B-117, JIS H8502, IEC 68-2-11,IEC68-2-52, MIL-STD-750, ISO 9227
Power Supply 220V 50HZ/AC380V 50HZ
