Home Product Temperature Cycling Test Chamber – Cooling and Heating

Temperature Cycling Test Chamber – Cooling and Heating


Over 29 different models let you choose size, configuration and performance to suit many types of environmental test conditions. Temperature change rates from 1 to 15°C/min.Low temperature available: A: -20℃, B: -40℃, C: -70℃ , D: -86℃.E:-200℃( liquid nitrogen refrigeration.

Included are ultra low temperature test chamber, fast temperature change rate chambers (15℃/min) and liquid nitrogen refrigeration test chamber.

To perform cold resistance test, thermal cycling test, ultra low temperature test, high temperature test, storage condition, and calibration function.


  • Wide temperature ranges and volume selection
  • Reliable performance
  • Temperature control and display unit
  • Programmable color LCD touch screen controller
  • Multi-language interface
  • USB and Ethernet
  • Mechanical compression refrigeration system

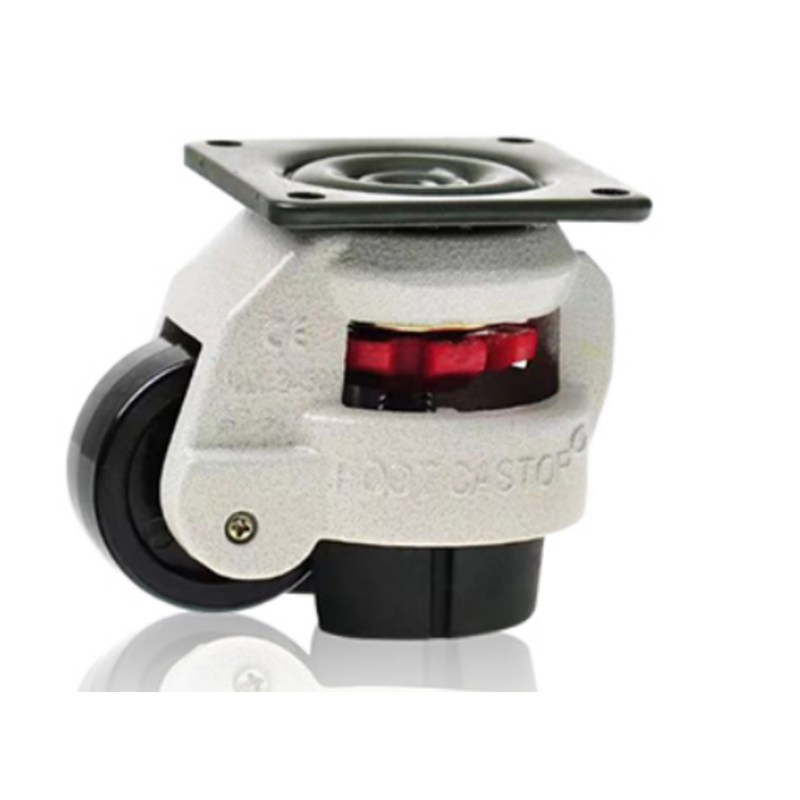

  • Casters, shelf, and cable port are standard
  • Adjustable and removable sample shelves
  • Safety protection system
  • CE mark


Product Details


PID programmable color touch screen controller, network connection computer;
Can edit 100 programs 20 segment;
LIB also can preset program into the controller based on user testing requirements;
The set system language is English for standard.

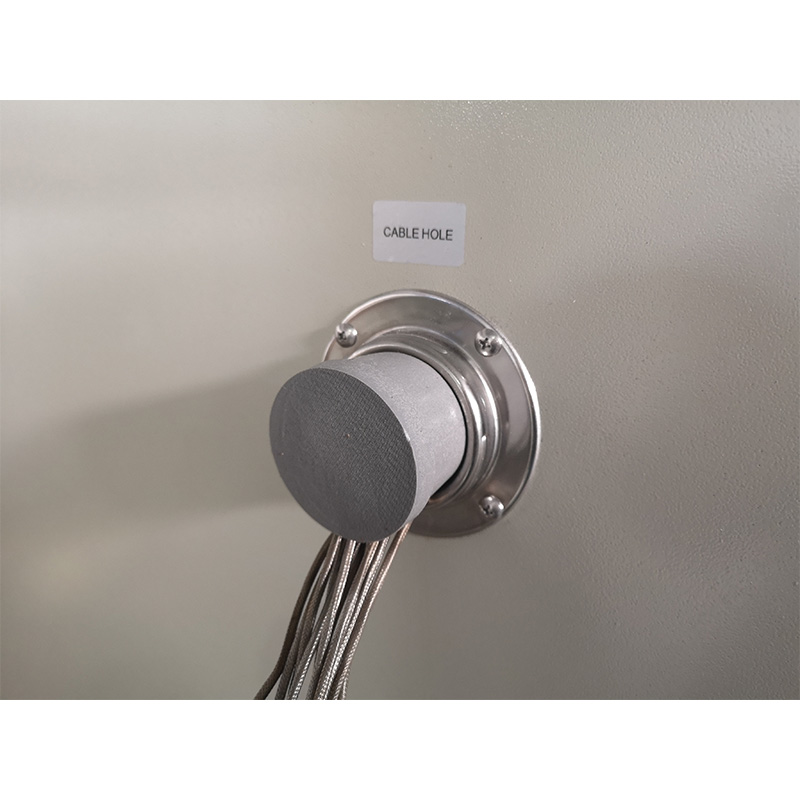

Cable Hole
The standard inner hole diameter is 50mm.
Soft silicone plug seal; Metal enclosure closed, beautiful designed.


Application Area

Temperature Cycling Test Chamber – Cooling and Heating is widely used in automobile, aerospace, materials, electronics, military, paintings, battery, cable, pv panels, pharmaceuticals, navigation, commodity industry, for testing the function and service life of the product by simulating harsh natural environment.


Model T-100 T-225 T-500 T-800 T-1000
Internal dimension (mm) 400*500*500 500*600*750 700*800*900 800*1000*1000 1000*1000*1000
Overall dimension (mm) 860*1050*1620 960*1150*1860 1180*1350*2010 1280*1550*2110 1500*1550*2110
Capacity 100L 225L 500L 800L 1000L
Temperature range -20℃ ~+150 ℃
Low type A: -40℃   B:-70℃   C -86℃
Temperature fluctuations ± 0.5 ℃
Temperature deviation ± 2.0 ℃
Heating rate 3 ℃ / min
Cooling rate 1 ℃ / min
Controller Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB
Cooling system Mechanical compression refrigeration system

Safety device

Over-temperature protection; over-current protection; Refrigerant high-pressure protection; Earth leakage protection
Exterior material Steel Plate with protective coating
Interior material SUS304 stainless steel
Power Supply 220V 50HZ/380V 50HZ
Environmental conditional 5℃~+40 ℃   ≤85% RH



3 Years Warranty, Lifelong Follow-up Services

LIB test chambers product all provide a three-year long-term warranty, and lib provides free maintenance and after-sales service within three years from the date of purchase.



Professional customer service team, sales staff, after-sales team to solve customers’ problems online at any time.  We set up agent centers and local service centers to improve service efficiency.

LIB Industry concentrates on providing the Turn-key solution for environmental testing, that research, design, producing, commissioning, delivery, install and training, provide the whole products and service according to customer’s requirements. Tell us what you need, let us help you.
