+250℃ +500℃ +800℃ Industry Drying Ovens


LIB designed and produced high temperature drying ovens at temperatures up to +250°C, +500°C, +800°C, +1000°C, +1200°C with small, medium and large volumes.

Ovens are used for high temperature drying, paint drying, drying glass and plastics, ink, and removing moisture, wood drying and high temperature tests. Applied to aerospace, automotive, electronics, metalworking.

Drying ovens are available in various sizes and temperature ranges, including standard and custom oven.


  • High temperature to +250°C, +500°C, +800°C, +1000°C, +1200°C
  • Electric heating type
  • Wide temperature ranges and volume selection
  • Reliable performance
  • Temperature control and display unit
  • Programmable color LCD touch screen controller
  • USB and Ethernet

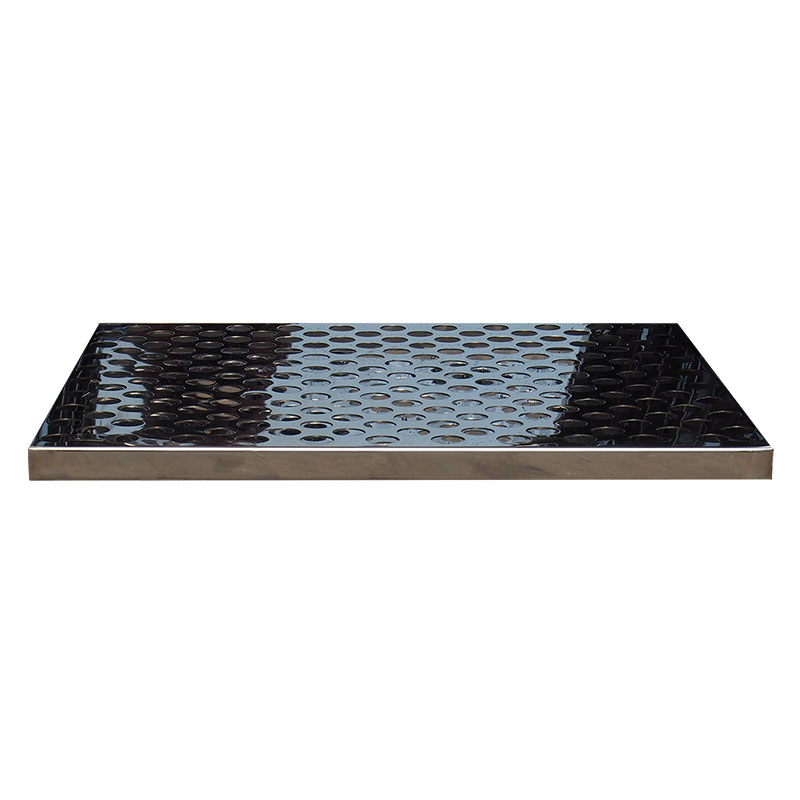

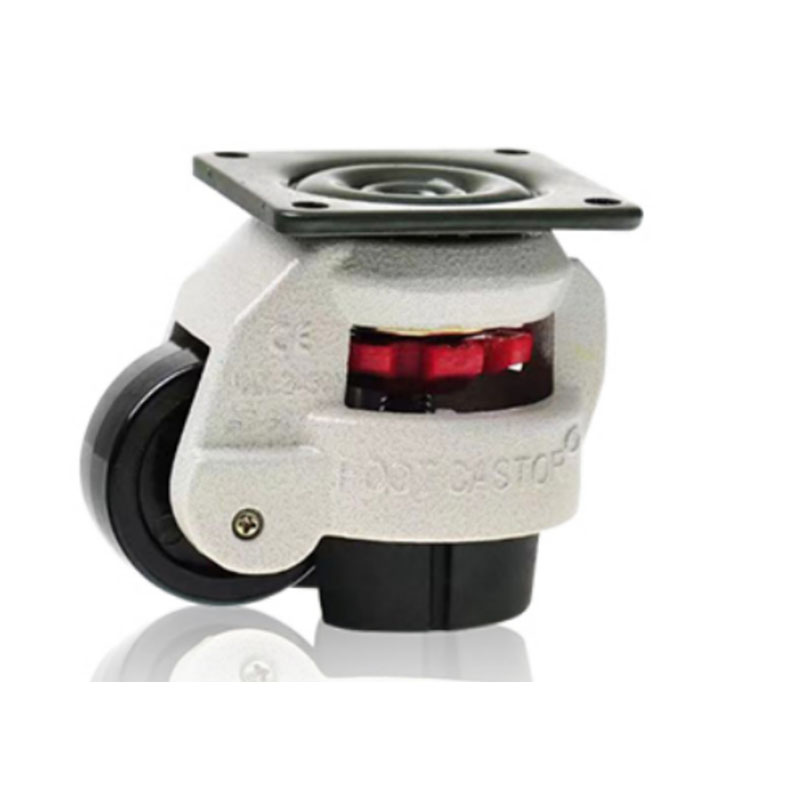

  • Casters and shelf are standard
  • Safety protection system
  • CE mark


Product Details

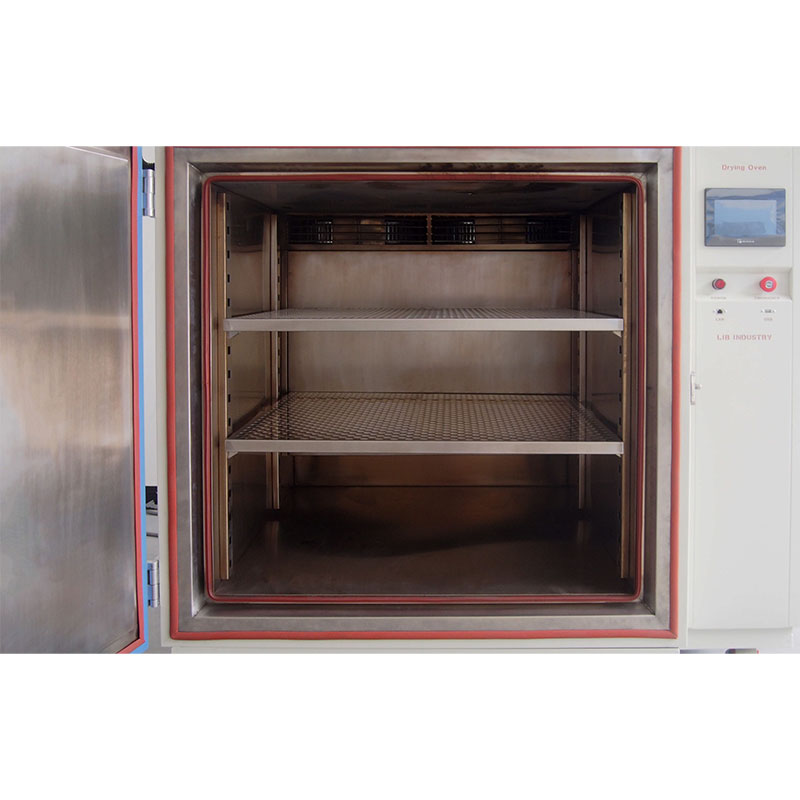

The internal material is 304 stainless steel, mirror surface, rust-proof to high and low temperature and moisture corrosion;

Nice ruggedness and long life.

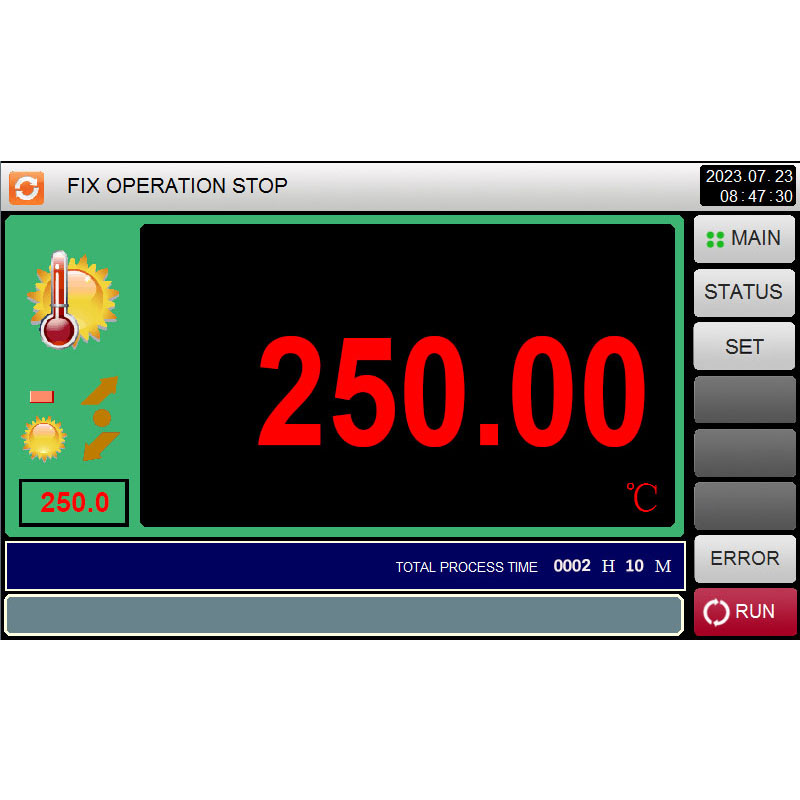

PID color touch screen controller, control and display temperature, time and other parameters.
The set system language is English for standard.


Application Area

+250℃ +500℃ +800℃ Industry Drying Ovens is widely used in automobile, aerospace, materials, electronics, military, paintings, battery, cable, pv panels, pharmaceuticals, navigation, commodity industry, for testing the function and service life of the product under extremely high temperatures environment.


Model 0-100 0-225 0-500 0-800 0-1000
Internal dimensions (mm) 400*500*500 500*600*750 700*800*900 800*1000*1000 1000*1000*1000
Overall dimensions (mm) 750*880*850 800*950*1000 1100*1100*1300 1100*1450*1400 1300*1400*1400
Temperature range Ambient ~+250 ℃; ( Ambient ~+400 ℃;  Ambient ~+900 ℃)
Temperature fluctuations ± 0.5 ℃
Temperature deviation ± 2.0 ℃
Heating rate About 6 ℃ / min
Controller Programmable color LCD touch screen controller
Exterior material Steel Plate with Protective coating
Interior material SUS304 stainless steel
Timing Function 0.1~999.9 (S、M、H) settable
Power Supply AC220V 50HZ AC220V 50HZ AC220V 50HZ AC220V 50HZ AC380V 50HZ



3 Years Warranty, Lifelong Follow-up Services

LIB test chambers product all provide a three-year long-term warranty, and lib provides free maintenance and after-sales service within three years from the date of purchase.



Professional customer service team, sales staff, after-sales team to solve customers’ problems online at any time.  We set up agent centers and local service centers to improve service efficiency.

LIB Industry concentrates on providing the Turn-key solution for environmental testing, that research, design, producing, commissioning, delivery, install and training, provide the whole products and service according to customer’s requirements. Tell us what you need, let us help you.
