Home Product 3TS Series Thermal Shock Test Chamber ( samples remain stationary)

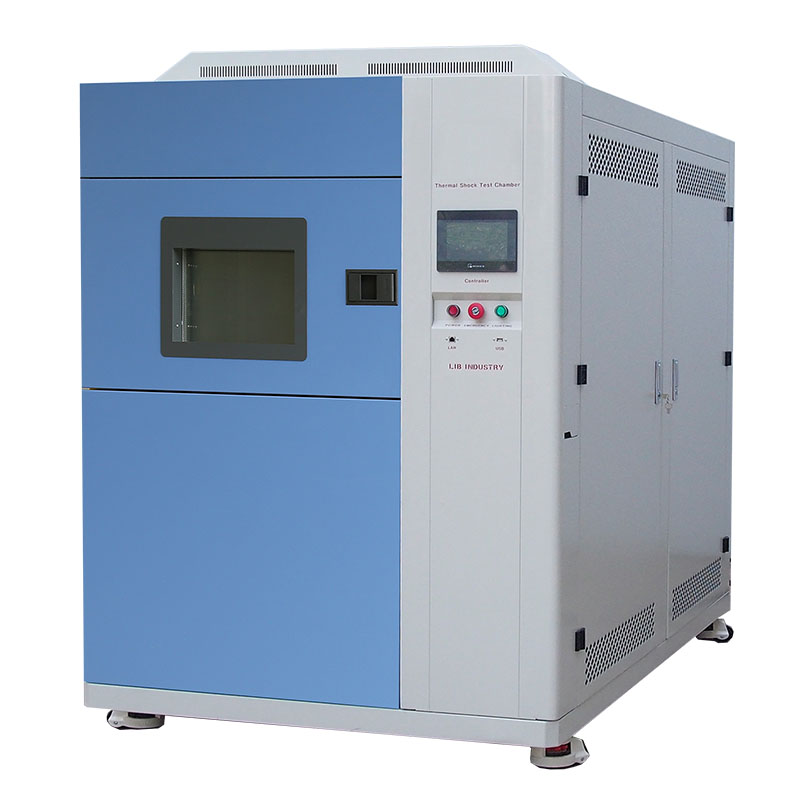

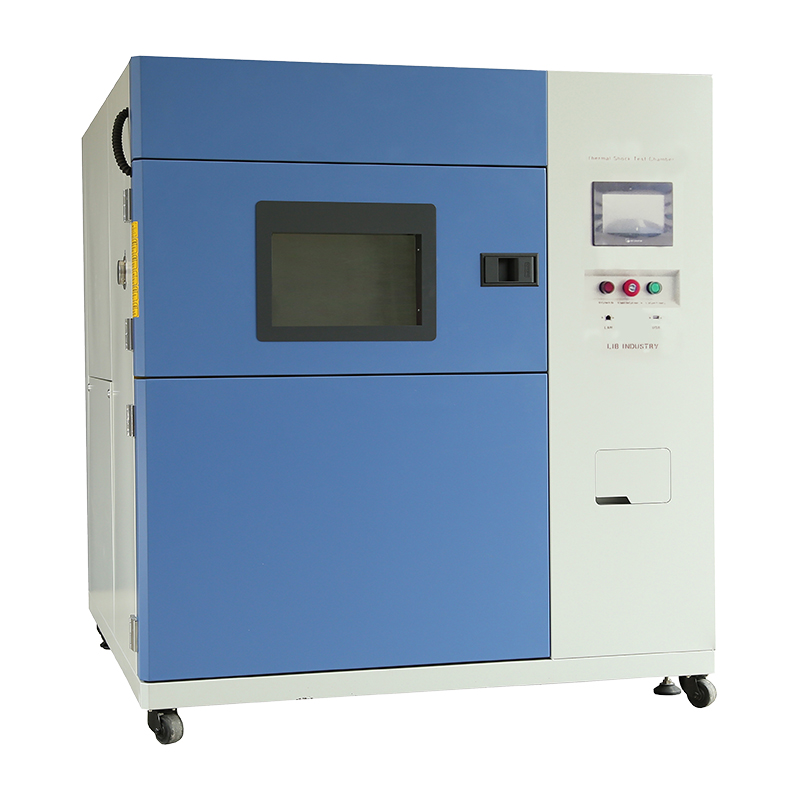

3TS Series Thermal Shock Test Chamber ( samples remain stationary)


LIB 3TS series thermal shock test chamber, it is just one chamber for test room, it circulates cold and hot air through the pneumatic damper on the left and right sides.This design makes external size smaller, and this 3TS series thermal shoc chamber are pre-heated and pre-cooled to achieve faster test temperature.

The test chamber can pre-record teh programs, so that customers can start test only click program numbers. Standard and custom models meet different requirements.


  • The test specimens remain stationary and don’t moved
  • Pneumatic damper type thermal shock chamber
  • One test room configuration
  • Temperature recovery time less than 15 minutes
  • Programmable color LCD touch screen controller
  • Mechanical compression refrigeration system
  • Casters, shelf, and cable port are standard
  • Lamp inside of chamber
  • Ethernet and USB(option)

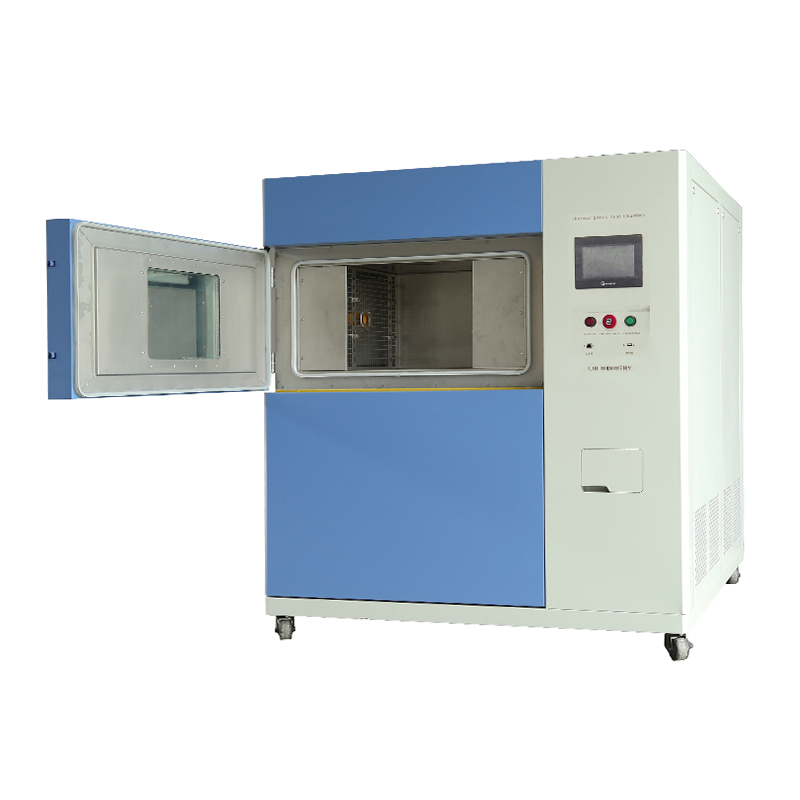

  • Large viewing window

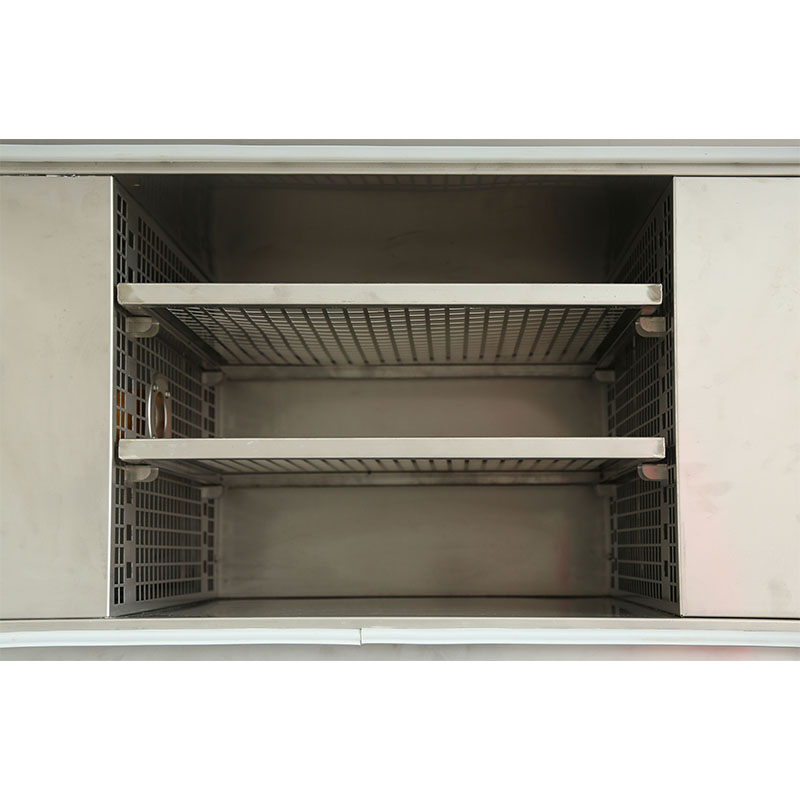

  • Adjustable and removable sample shelves
  • Safety protection system
  • CE mark


Product Details

Cooling system
The refrigerant completes a refrigeration cycle through four basic processes of evaporation, compression, condensation, and throttling in the system.

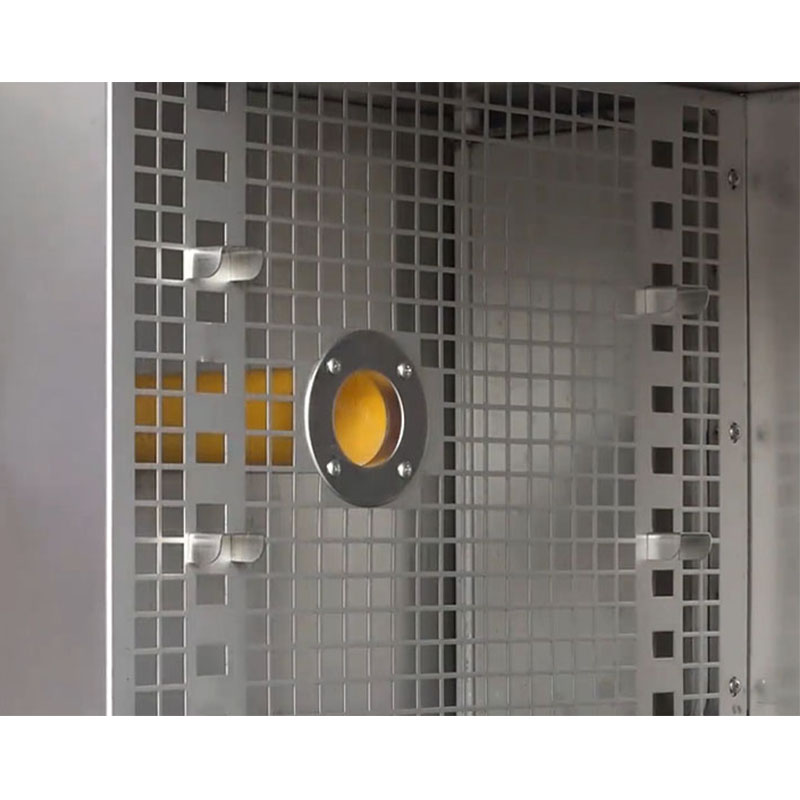

Cable Hole
The standard inner hole diameter is 50mm.
Soft silicone plug seal; Metal enclosure closed, beautiful designed.


Application Area

3TS Series Thermal Shock Test Chamber ( samples remain stationary) is widely used in automobile, aerospace, materials, electronics, military, paintings, battery, cable, pharmaceuticals, navigation industry, for testing the function and service life of the product by simulating harsh natural environment.


Model 3TS-100 3TS-210 3TS -300 3TS -500
Internal dimensions(mm) 500*500*400 700*600*500 700*780*550 900*800*700
Overall dimensions(mm) 1150*1950*2100 1350*2100*2200 1350*2250*2300 2500*2250*2150
Sample Loads 10kg 15kg 25kg 35kg

Pre-heat room


Upper limit preheat temperature +220℃
Heating time Ambient temperature to ~ + 200℃, within in 30 minutes.


Pre-cool room

Lower limit pre-cool temperature -70℃
Cooling time Ambient temperature to ~ -70℃, within in 30 minutes
Test room High temperature  exposure  range Ambient temperature +20 to +200°C
Low temperature exposure range –65 to -5°C
Recovery time Within 15 minutes
Temperature fluctuation ≤±0.5℃
Temperature deviation ≤±3℃
Controller Programmable color LCD touch screen controller
Cooling system Mechanical compression refrigeration system
Safety device

Over-temperature protection;

over-current protection; Refrigerant high-pressure protection; Earth leakage protection;

Exterior material Steel Plate with protective coating
Interior material SUS304 stainless steel
Power Supply 380V 50HZ
Environmental conditional 5℃~+40 ℃   ≤85% RH



3 Years Warranty, Lifelong Follow-up Services

LIB test chambers product all provide a three-year long-term warranty, and lib provides free maintenance and after-sales service within three years from the date of purchase.



Professional customer service team, sales staff, after-sales team to solve customers’ problems online at any time.  We set up agent centers and local service centers to improve service efficiency.

LIB Industry concentrates on providing the Turn-key solution for environmental testing, that research, design, producing, commissioning, delivery, install and training, provide the whole products and service according to customer’s requirements. Tell us what you need, let us help you.
