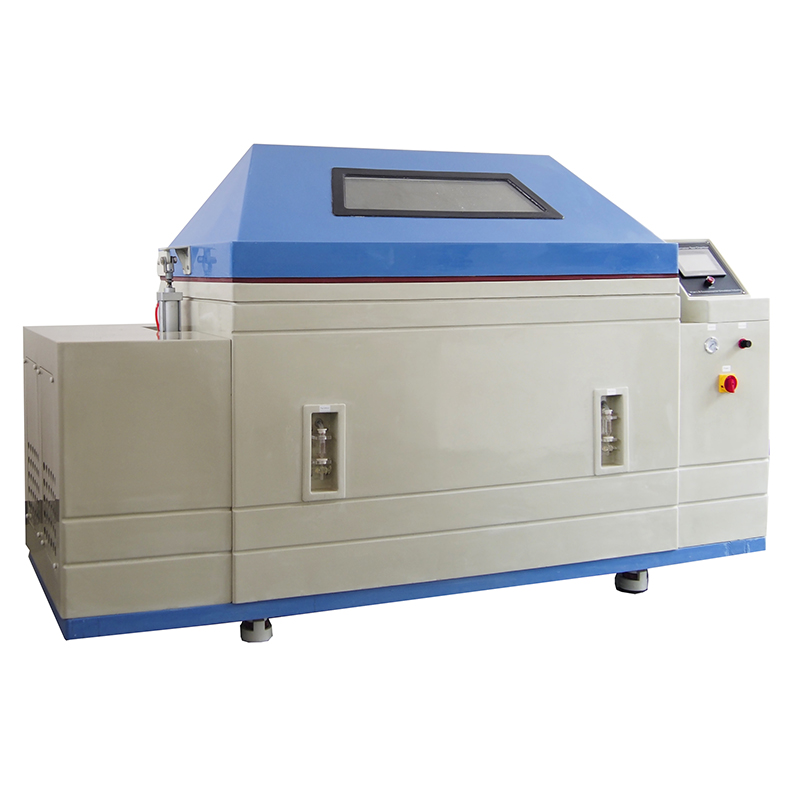

left side

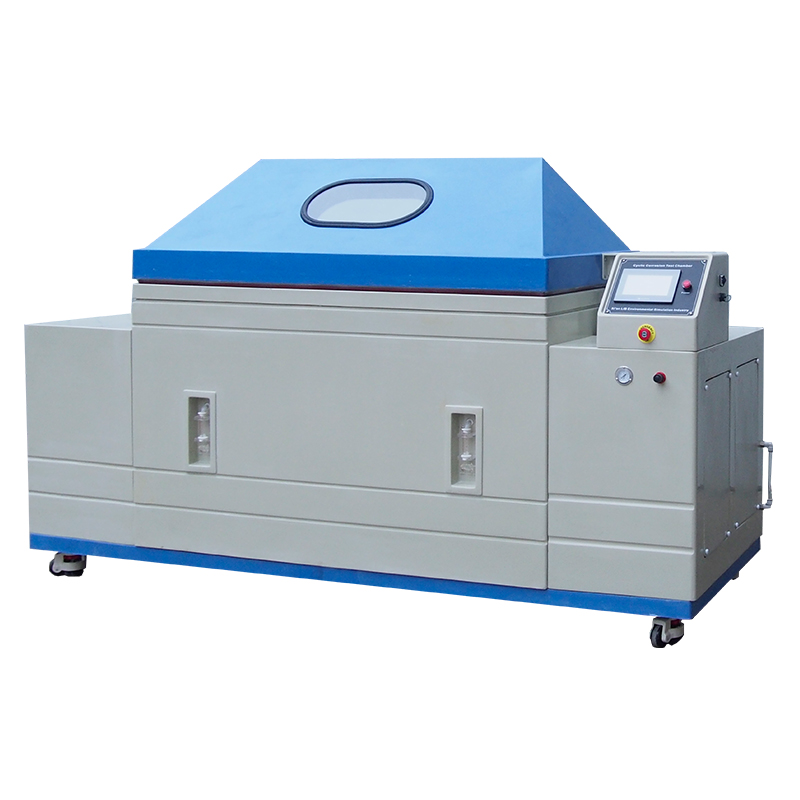

right side

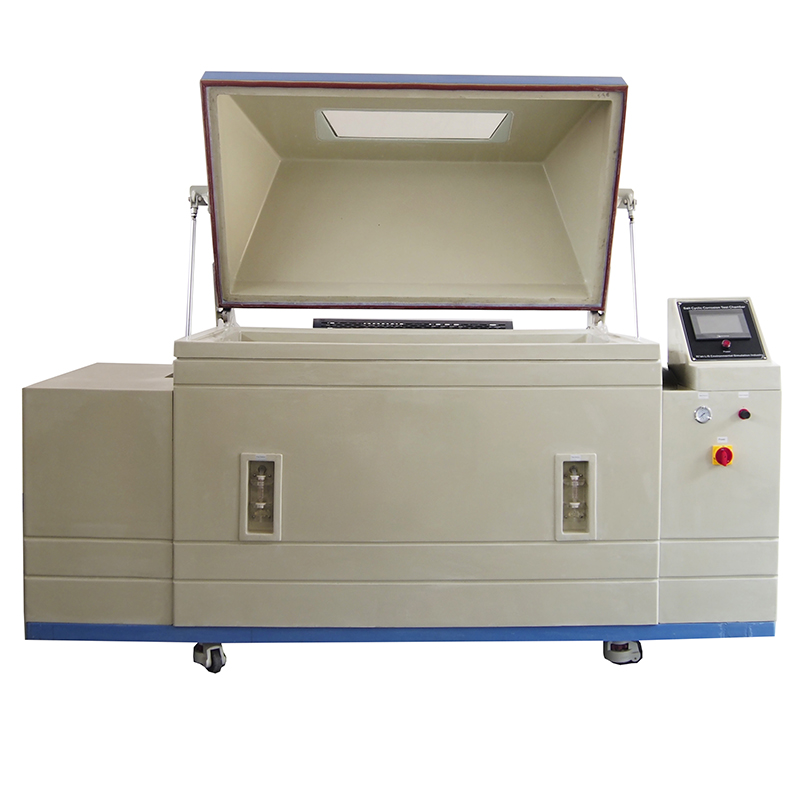

openning state

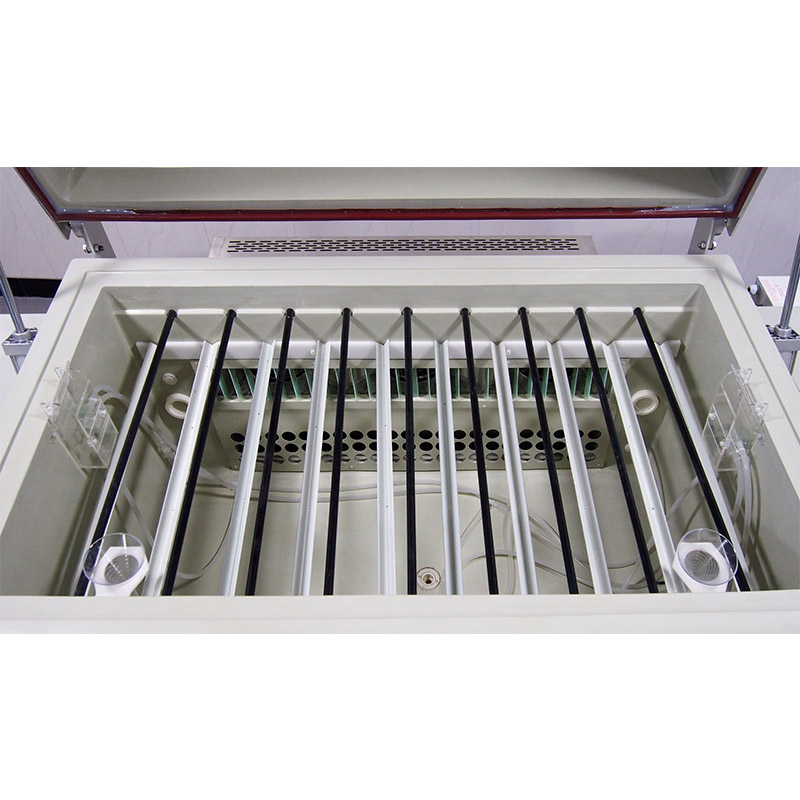

workroom

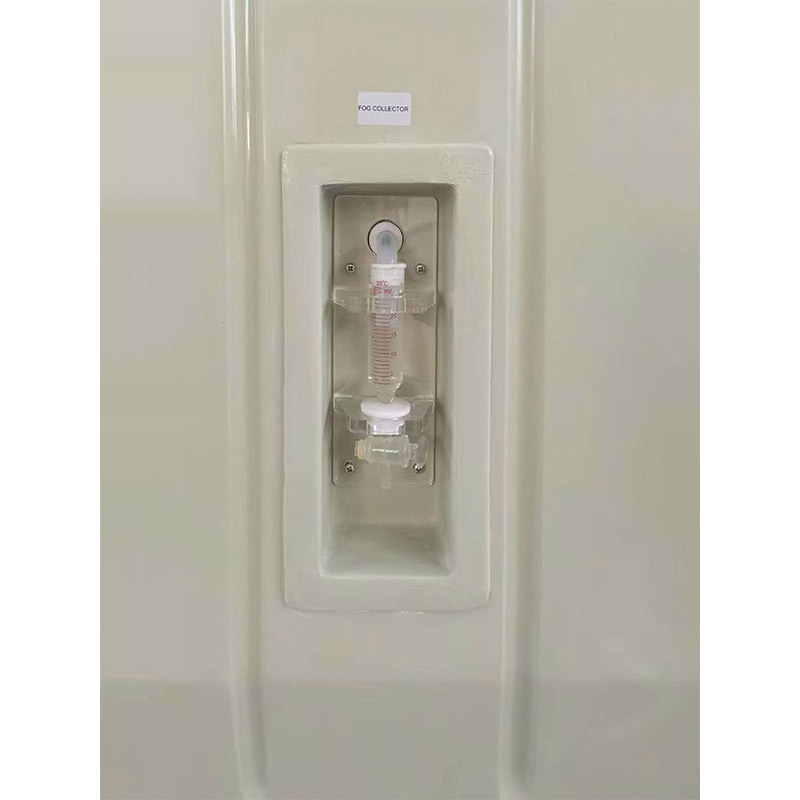

cylinder

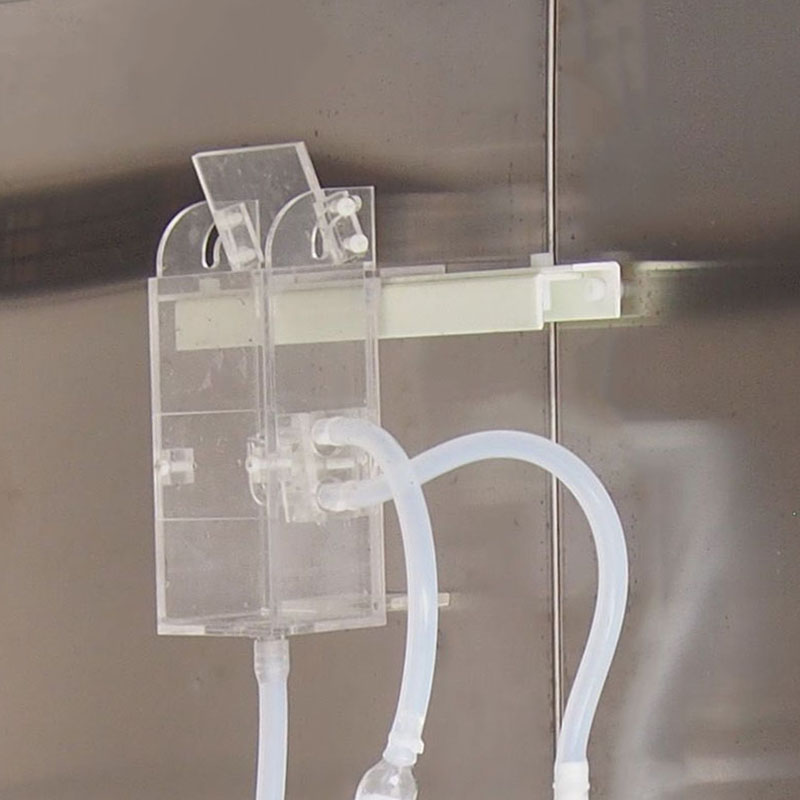

salt spray tower

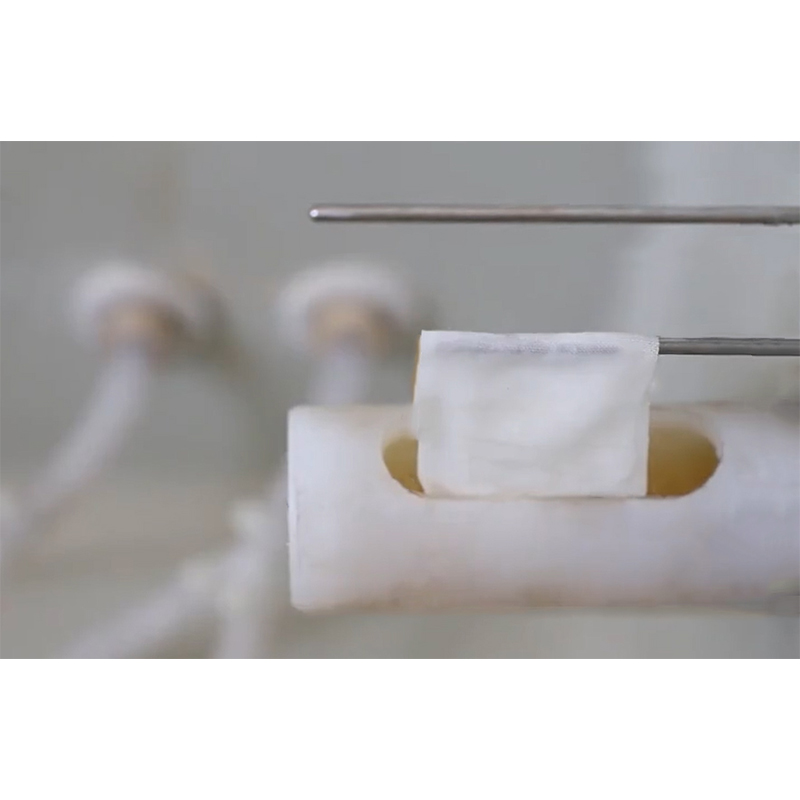

sensor

Cyclic Corrosion Fog Spray Chamber (SO2 gas)

INTRODUCTION

—Cyclic salt spray chamber is different from basic salt spray test chamber.

—Cyclic corrosion test chamber exposes sample to a series of different environments in repetitive cycles that incorporate temperature, humidity, salt spray and dry.

—Accelerated corrosion test methods included ASTM B117, ASTM BG85, ISO9227, IEC60068-2-52, iec61701-2, ISO7253 and many others.

—SC series corrosion chambers are upgrade to programmable controller and Ethernet access.

—All models are automated, and can be working continuously. Various models can meet different test requirements.

CHARACTERISTIC

Corrosion-Resistant Structure:  Constructed with glass fiber reinforced plastics for superior resistance to corrosion, high temperatures, and aging—ensuring long-term durability in harsh environments.

Automated Lid Operation: Features a pneumatic open/close lid system, streamlining test preparation and enhancing operator safety during loading and unloading.

Precision Climate Control: Integrates temperature and humidity measuring, control, and display units with ranges from +10 °C to +90 °C and 30%RH to 98%RH for accurate environmental simulation.

Integrated Salt Fog Testing: Delivers consistent salt spray output at 1–2 ml/80 cm²·h, enabling reliable corrosion performance testing across a wide range of materials and coatings.

Smart Touchscreen Interface: Programmable color PID touchscreen controller with optional USB and Ethernet connectivity for intuitive operation, data export, and remote access.

Optional SO₂ Test Integration & CE Compliance: Supports optional SO₂ gas monitoring and control for advanced corrosion analysis, with standard safety protection systems and CE marking for global compliance.

MODEL

Model SC-010 SC-016 SC-020
Internal dimensions (mm) 800*1450*680 1000*1600*800 1000*2000*900
Overall dimensions (mm) 1400*2500*1720 1600*2650*1840 1600*3050*1940
Temperature range 10℃ ~90℃
Humidity range 30% ~ 98% RH
Temperature tolerance +/- 2.0 ℃
Humidity tolerance +2%,-3%
Salt concentration tolerance ±1%
Spray deposition 1~2ml / 80cm2 · h
Controller Programmable color LCD touch screen controller
Cooling system Mechanical compression refrigeration system
Spraying system Atomizer tower and Spray nozzles  (Fog is more fine and uniform distribution)
Interior /Exterior material Glass fiber reinforced plastics
safety device

Humidifier dry-combustion protection; over-temperature protection;

over-current protection; Refrigerant high-pressure protection; Water shortage protection,

Earth leakage protection;

Power Supply AC 380V 50HZ
Test standard IEC60068-2-52, IEC61701-2, ASTM G85,ISO 7253



FQAs

Q1: Can the chamber perform both salt spray and SO₂ corrosion tests?

A: Yes, it supports integrated salt fog testing and optional SO₂ gas monitoring and control for comprehensive corrosion analysis.

Q2: What warranty and after-sales services does LIB provide?

A: LIB provides a 3-year warranty and lifelong maintenance. If equipment problems cannot be solved, we offer free replacement of the test chamber to ensure your operations continue smoothly.

Q3: How does LIB provide shipping and technical support?

A: LIB offers fast and secure worldwide shipping via multiple transport methods, with spare parts typically delivered within 7–15 days. Our professional English-speaking technical team is available 24/7 for ongoing support and troubleshooting. Contact us anytime for reliable assistance.
