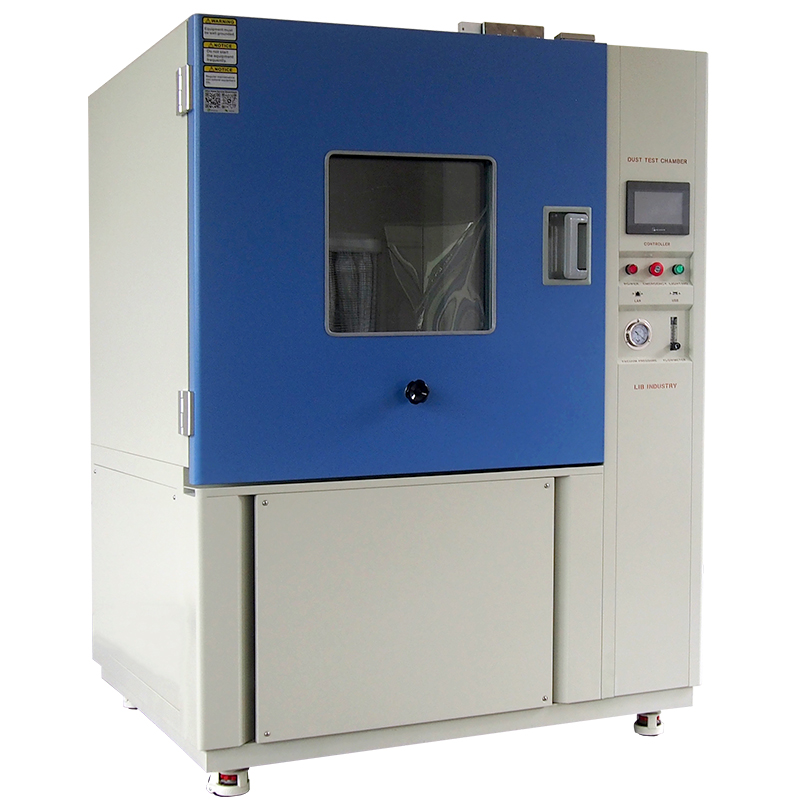

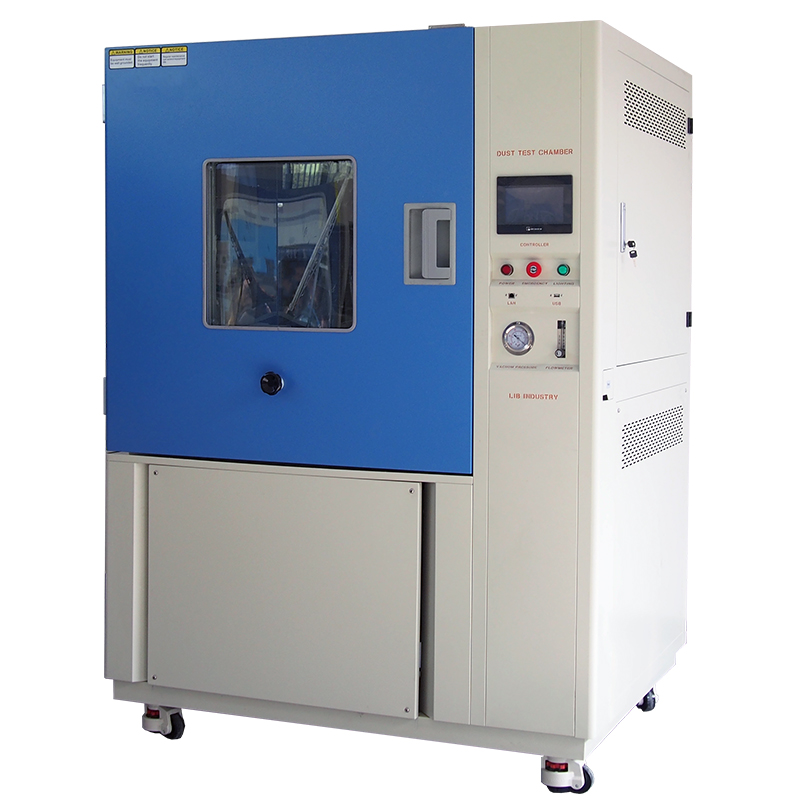

IP5X IP6X Sand and Dust IP Test Chamber

INTRODUCTION

IP5X IP6X Sand and Dust IP Test Chamber are capacity of 800 liters 1000 liters, 1500 liters, 2000 liters and larger volume. Considering that some specimens are small and large, so we designed and produced different size and configuration.

Dust IP test equipment are made for the simulation of dust and sand conditions. These dust IP test chambers are used to test the exposure of test the exposure of automotive and electronic components under extreme environmental conditions in order to validate product seal.Dust ingress test methods included IEC60529, ISO20653 and many others.

The airflow circulates upward from the bottom, blowing the dust circulation,forcing dust around the specimens. All models are upgrade to programmable controller and Ethernet access that provides simple operation and control.

CHARACTERISTIC

  • Capacity available  800 liters, 1000 liters, 1500 liters, 2000 liters
  • IEC60529, ISO20653 standard performed
  • IPX5 IPX6 IP Rating dust ingress test
  • IP68 IP54 IP55 dust and rain tests (our rain chambers available)

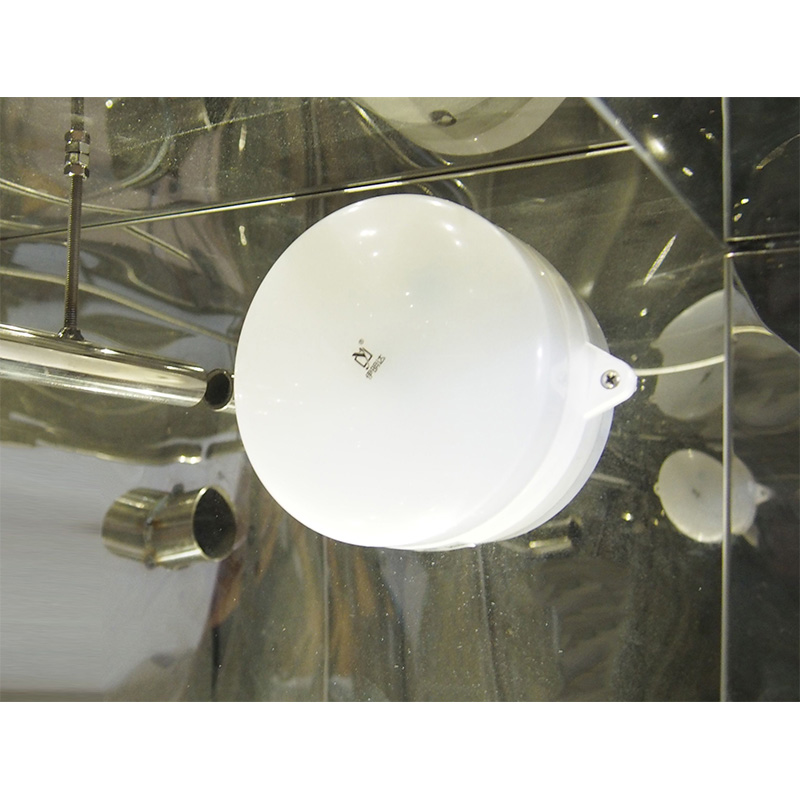

  • Internal illumination in test room

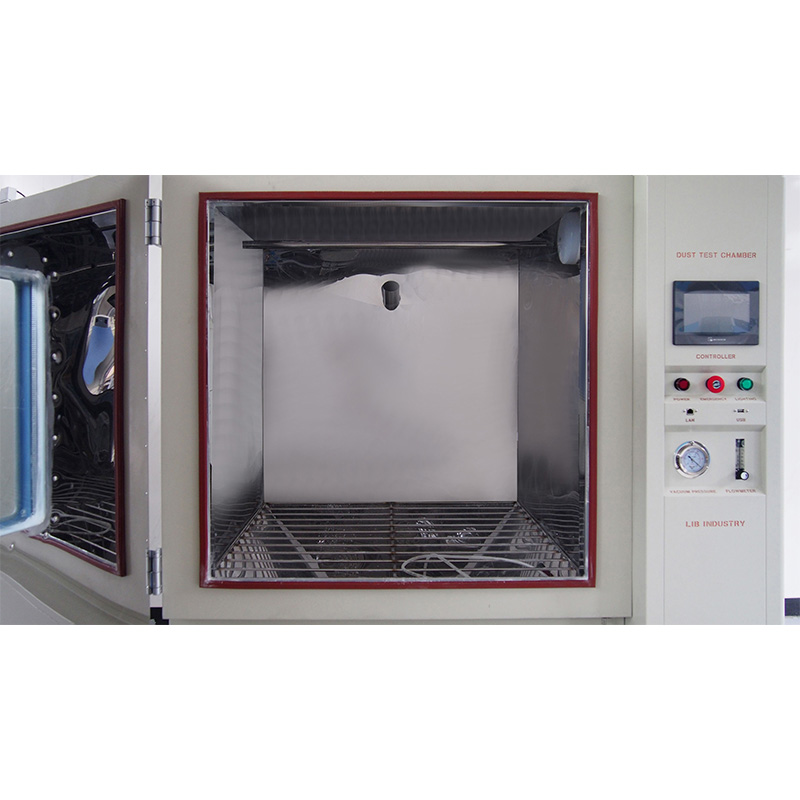

  • Strong stainless steel specimen shelves

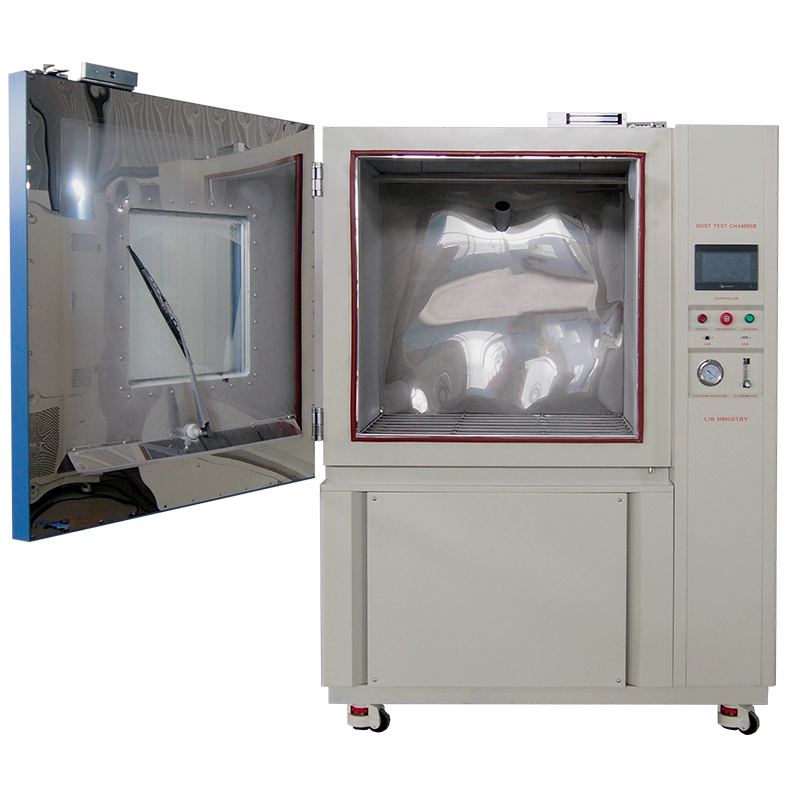

  • Viewing window with wiper
  • Dust blowing through special wind tunnel and air outlet
  • Constant dust concentration
  • Programmable color LCD touch screen controller
  • Build -in power interface and vacuum system for specimens
  • Multi-language interface
  • USB and Ethernet
  • Reliable performance
  • Safety protection system
  • Standard and custom
  • CE mark



Product Details

Controller
PID programmable color touch screen controller, network connection computer.
Can edit 100 programs 20 segment.
LIB also can preset program into the controller based on user testing requirements.

Internal Power

The workroom is equipped with a single-phase 16A internal power interface (positive and negative terminals) to power up the test specimen. The power-on time and cycle can be controlled by the controller.



Application Area

IP5X IP6X Sand and Dust IP Test Chamber is mainly used in automobile, electronics, military industry, for testing the dustproof performance of the protective material by simulating the natural wind and sand. The main components are communication equipment, outdoor lighting, auto parts, motorcycles and other products.

MODEL

Model DI-800 DI-1000 DI-1500 DI-2000
Internal dimensions (mm) 800*1000*1000 1000*1000*1000 1000*1500*1000 1000*2000*1000
Overall dimensions (mm) 1040*1450*1960 1200*1450*1960 1250*1900*1960 1300*2400*1960
Temperature range Ambient to +50℃
Normal wire diameter 50um
Normal width of a gap between wire 75um
The Talcum powder amount 2kg ~ 4kg/m3
Fight time 0 ~ 99H59M
Fan cycle time 0 ~ 99H59M
Specimen power outlet Dust-proof socket AC220V 16A
Controller Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB
Exterior material Steel Plate with protective coating
Interior material SUS304 stainless steel
Safety System Electric leakage, short circuit, Over-temperature, motor overheating Over-current protection/ Power failure memory function for controller
Power supply 380V 50HZ



Warranty

3 Years Warranty, Lifelong Follow-up Services

LIB test chambers product all provide a three-year long-term warranty, and lib provides free maintenance and after-sales service within three years from the date of purchase.



Service

Professional customer service team, sales staff, after-sales team to solve customers’ problems online at any time.  We set up agent centers and local service centers to improve service efficiency.

LIB Industry concentrates on providing the Turn-key solution for environmental testing, that research, design, producing, commissioning, delivery, install and training, provide the whole products and service according to customer’s requirements. Tell us what you need, let us help you.
