Lead Provider of Environmental Test Chamber

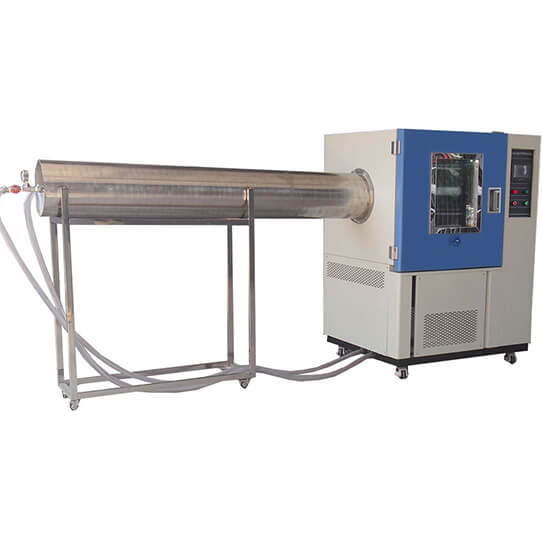

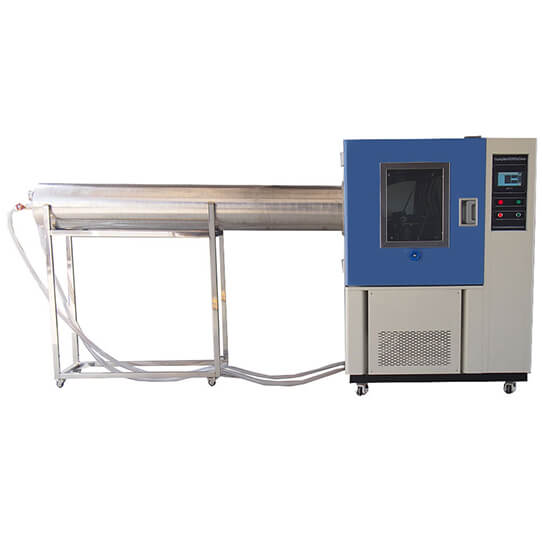

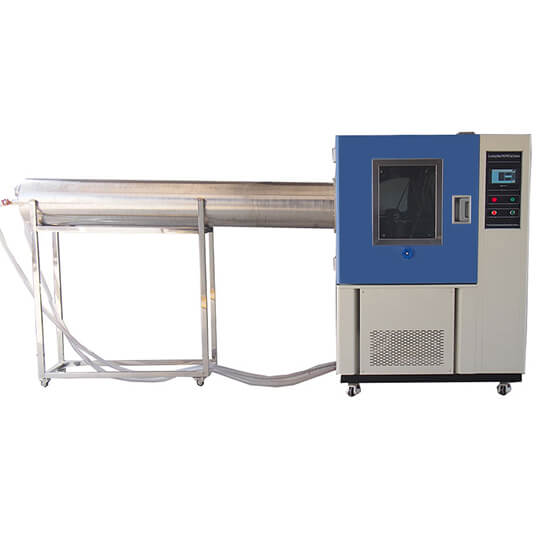

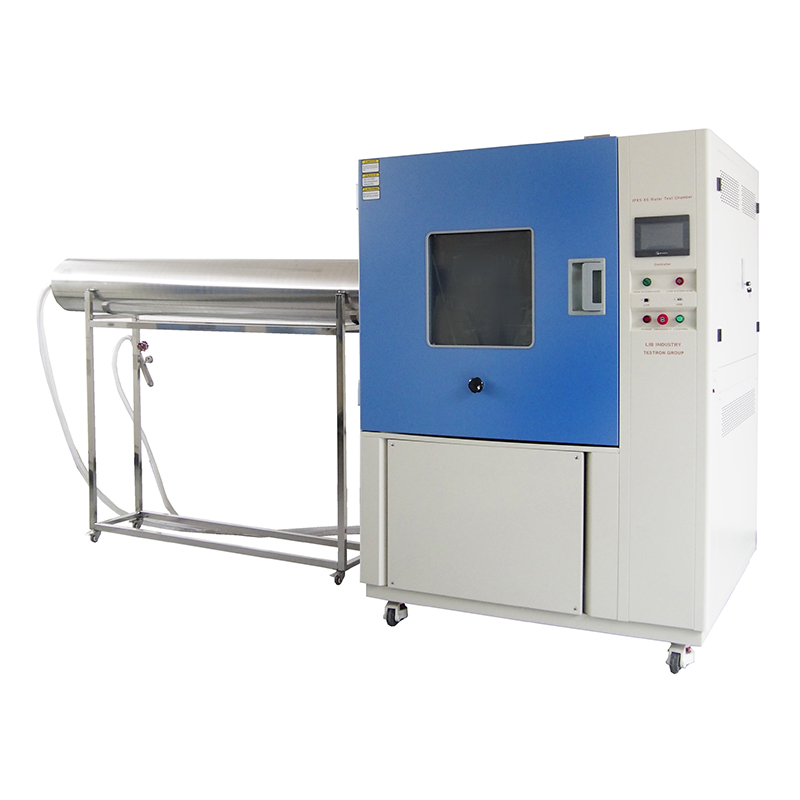

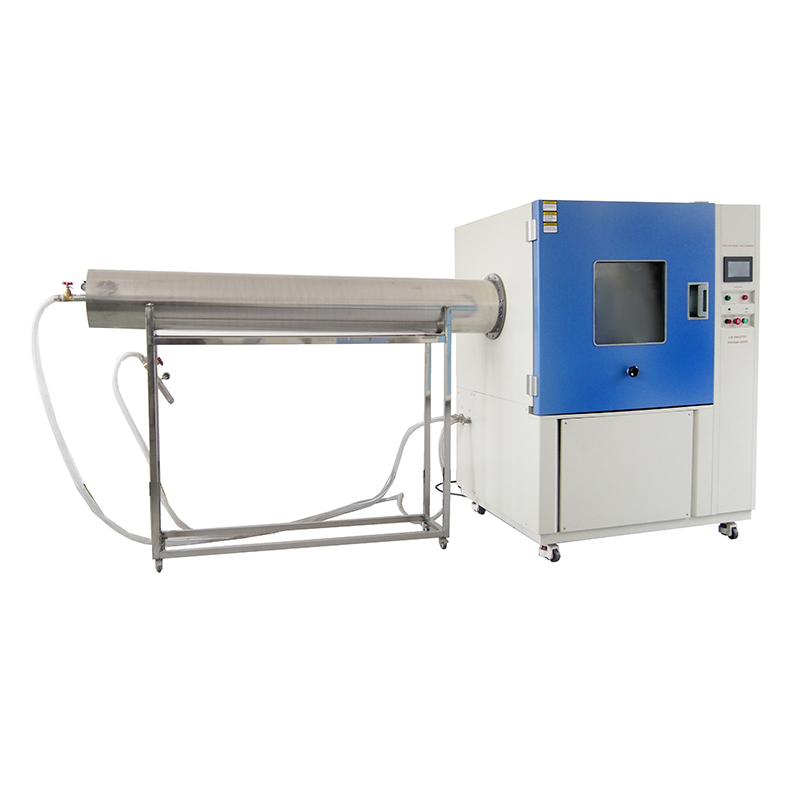

—IPX5 IPX6 Water Jetting Test Chamber is applied to test the watertightness of enclosures of automotive parts, outdoor lamps and electronics parts.
—The chambers built with the water tightness of sealed components such as head lamp, Power connector.
—Waterproof power connector in the test room can easily supply electricity to the specimens.
—IPX5 and IPX6 functions on one test chamber,make testing convenient and cost-effective.

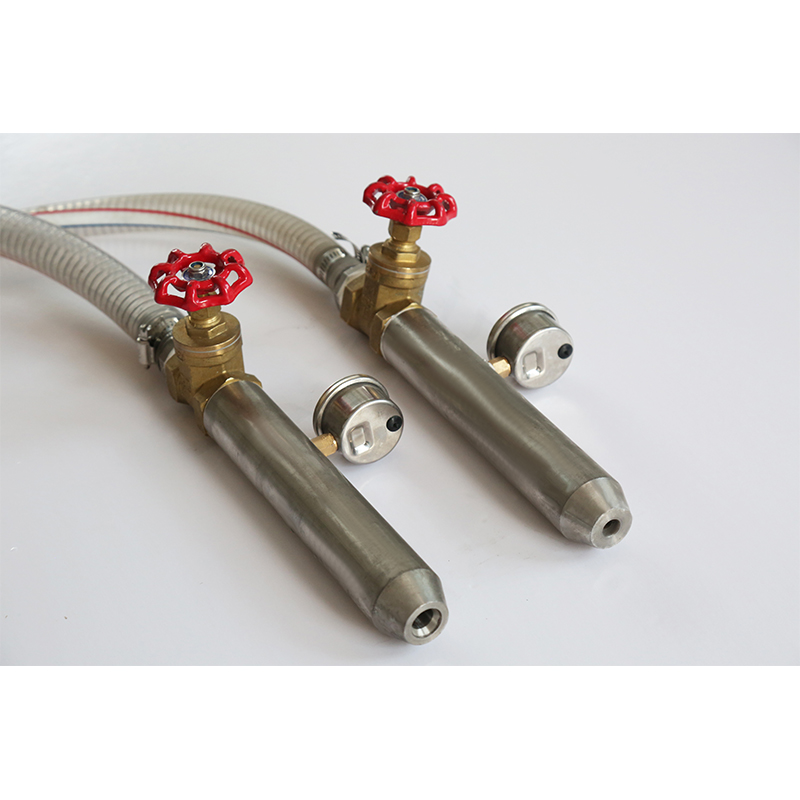

Dual IPX5/IPX6 Water Jet Testing: Supports IPX5 and IPX6 waterproof tests using precision 6.3 mm and 12.5 mm nozzles, accurately replicating medium and high-pressure jet conditions in compliance with IEC 60529.

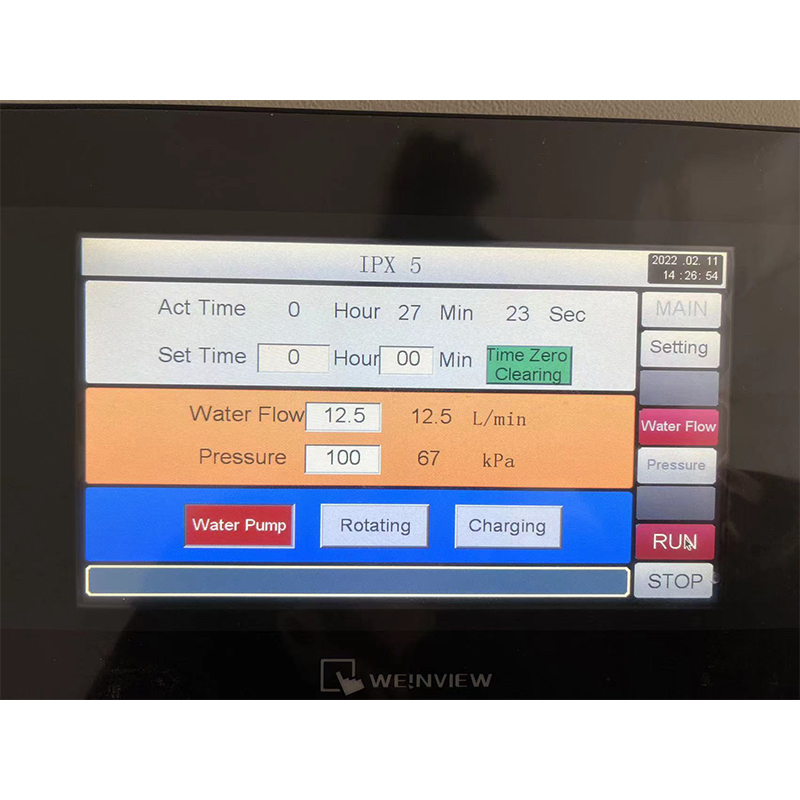

Real-Time Flow Rate Control: Integrated electromagnetic flowmeter and PID controller ensure precise flow rates of 12.5 L/min (IPX5) and 100 L/min (IPX6) with automatic adjustment, eliminating manual calibration errors.
Durable Stainless Steel Construction: 304 stainless steel test room and reinforced hoses provide strong resistance to corrosion and wear, reducing maintenance frequency and prolonging equipment lifespan.

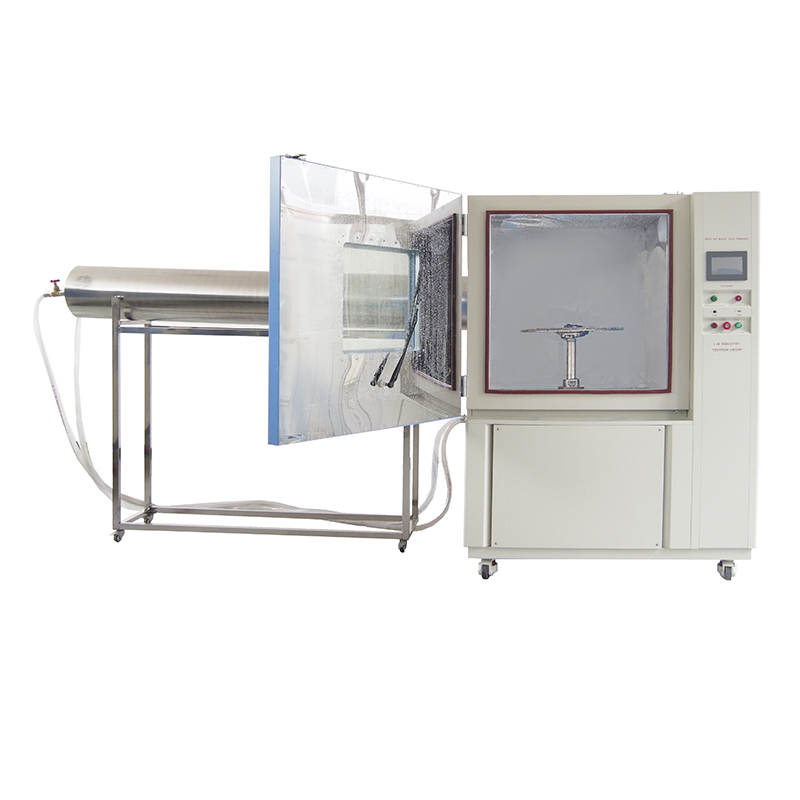

Integrated Lighting & Viewing Window: Built-in LED lighting and a transparent, impact-resistant viewing window offer clear visibility during testing, allowing real-time monitoring of product performance.

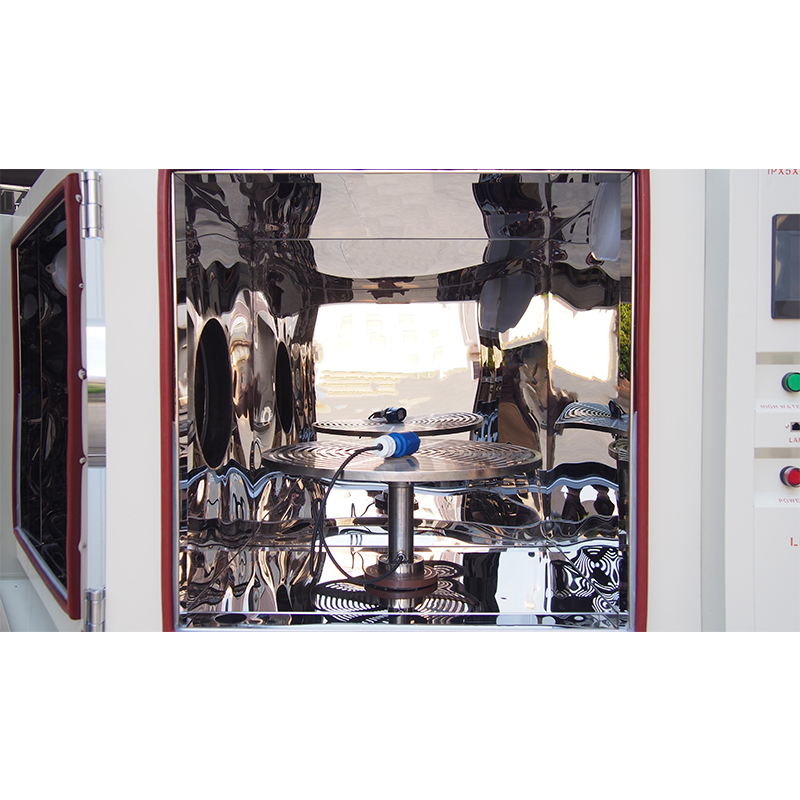

Adjustable Specimen Turntable: Height-adjustable turntable (350–500 mm) with 1 r/min rotation ensures uniform water coverage across test surfaces, enhancing test accuracy and repeatability.
Certified Safety & Power Integration: Includes a waterproof power connector, automatic water supply system, multiple safety protections, and CE certification for reliable, safe testing.
| Model | R56-800C |
| Workroom dimension (mm) | 800*800*800 |
| External dimension (mm) | 950*3150*1800 |
| Diameter of turntable (mm) | 600 |
| Water flow rate | IPX5: 12.5L/min ±5% ; IPX6: 100L/min ±5% |
| Water tank size | 450*250*450 D*W*H |
| Nozzle Internal Diameter | IPX5 nozzle Dia. 6.3mm, IPX6 nozzle Dia. 12.5mm |
| Water pressure control | Flow meter |
| Water supply system | Storage water tank, Booster pump, Automatic water supply, Water purification system |
| Exterior material | Steel Plate with protective coating |
| Interior material | SUS304 stainless steel |
| Power supply | 380V 50HZ |
FQAs
Q1: Can I monitor the specimen during high-pressure water jet testing?
A: Yes. The chamber features built-in LED lighting and a transparent, impact-resistant viewing window, allowing you to clearly observe the specimen’s real-time performance throughout the test without interrupting the procedure.
Q2: What warranty and after-sales services does LIB provide?
A: LIB provides a 3-year warranty and lifelong maintenance. If equipment problems cannot be solved, we offer free replacement of the test chamber to ensure your operations continue smoothly.
Q3: How does LIB provide shipping and technical support?
A: LIB offers fast and secure worldwide shipping via multiple transport methods, with spare parts typically delivered within 7–15 days. Our professional English-speaking technical team is available 24/7 for ongoing support and troubleshooting. Contact us anytime for reliable assistance.
