IPx1 IPx2 IPx3 IPx4 Drip and Spray Water Test Chamber

INTRODUCTION

IPx1 IPx2 IPx3 IPx4 Drip and Spray Water Test Chamber can perform tests in accordance with IEC60529, and IPX1 IPX2 IPX3 IPX4 protection code.The chambers built with the water tightness of sealed components such as head lamp, Power connector. Waterproof power connector in the test room can easily supply electricity to the specimens.

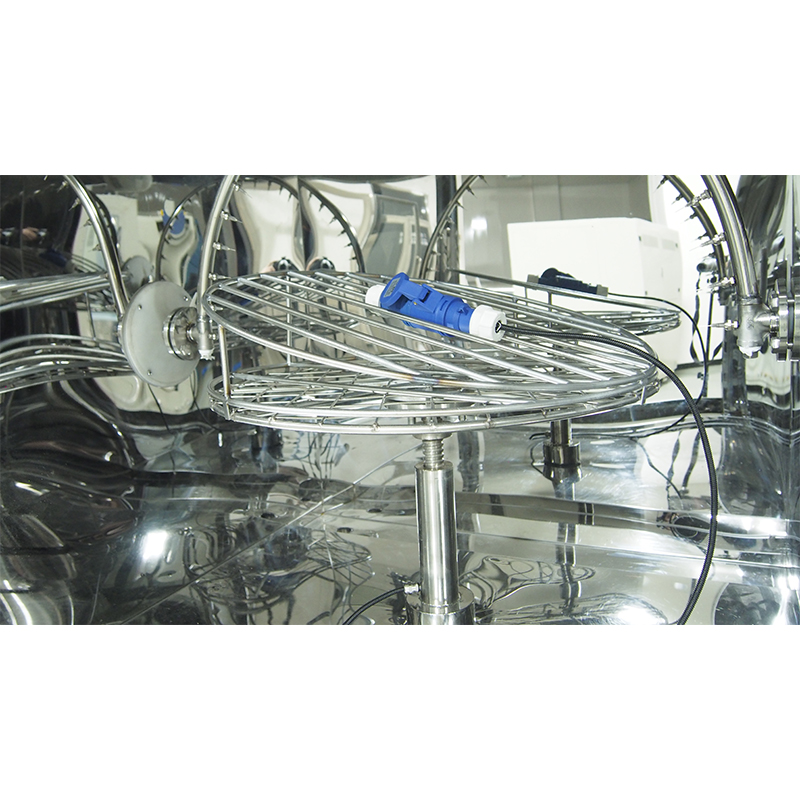

The water spray Chamber built with a water re-circulation system that reduced water use and a series of water pipes. Incorporated rotating turntable can promote even spray of water over the surface of the products under testing. Automatic water supply ensures adequate supply of water and automatic testing. All models are upgrade to programmable controller and Ethernet access that provides simple operation and control. Various size and configuration to suit many types of test conditions.

CHARACTERISTIC

  • Combined one chamber to do IPx1 IPx2 IPx3 IPx4 IP Rating tests
  • Capacity of 729 liters and 2700 liters, standard and cu
  • Protection against drip, spraying and splashing water
  • Control and adjust water flow
  • Eliminates water consumption by circulation unit
  • Waterproof power connector in the test room
  • Automatic water supply
  • Programmable color display touch screen controller
  • USB and Ethernet
  • A viewing window with wiper
  • Internal illumination in test room
  • Safety protection system
  • CE mark

PARAMETERS

Model R-800C R-1200C
Internal dimensions (mm) 800*800*800 1200*1200*1200
Overall dimensions (mm) 1020*1360*1560 1450*1450*2000

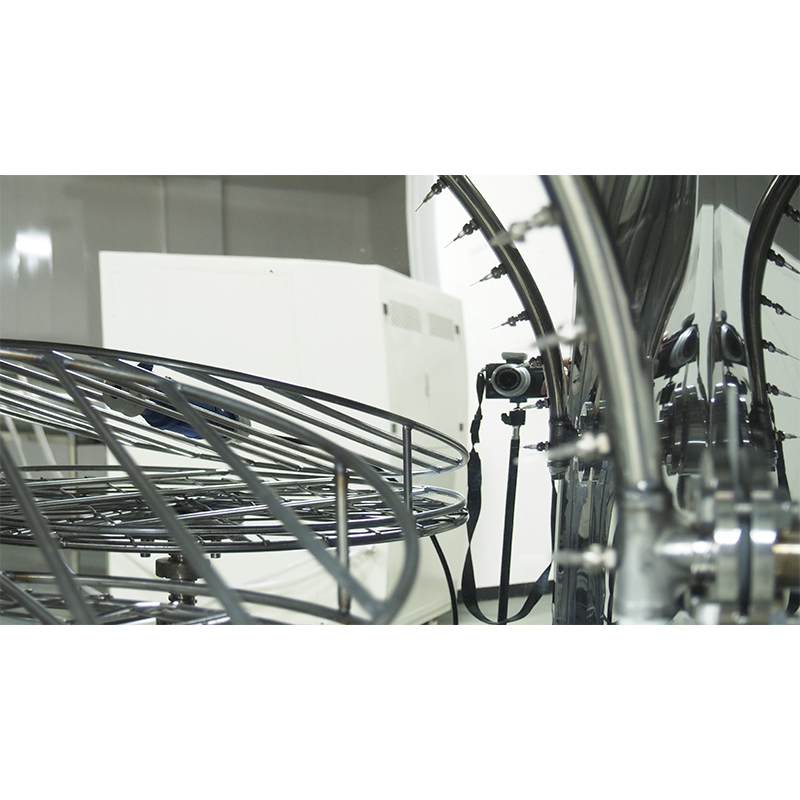

Oscillating tube radius 400mm 600mm
Spraying hole diameter φ0.4mm
Hole spacing 50 mm
Swing angle of oscillating tube 0 to ±180°  ( adjustable)
Drip Tray IPX1 IPX2 drip nozzle diameter φ0.4mm
Turntable rotation speed 1r/min, or steeples speed regulating (optional)
Controller Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB
Water supply system Automatic water supply, circulation unit
Safety protection device Electric leakage, short circuit, motor overheating, over-current protection
Exterior material Steel Plate with protective coating
Interior material SUS304 stainless steel
Power AC380V 50HZ
Standard IEC 60529, ISO20653
