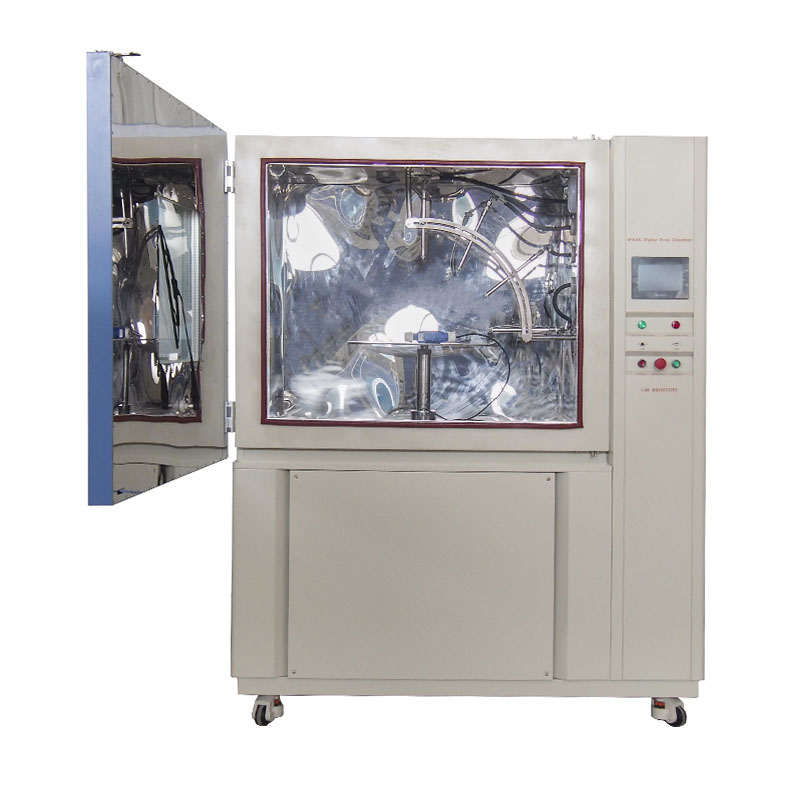

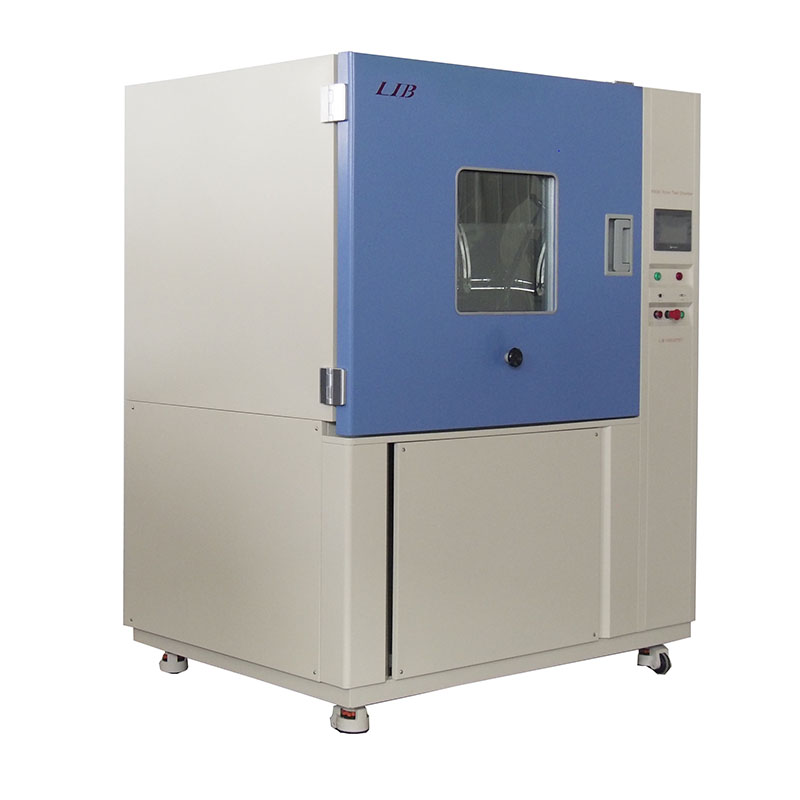

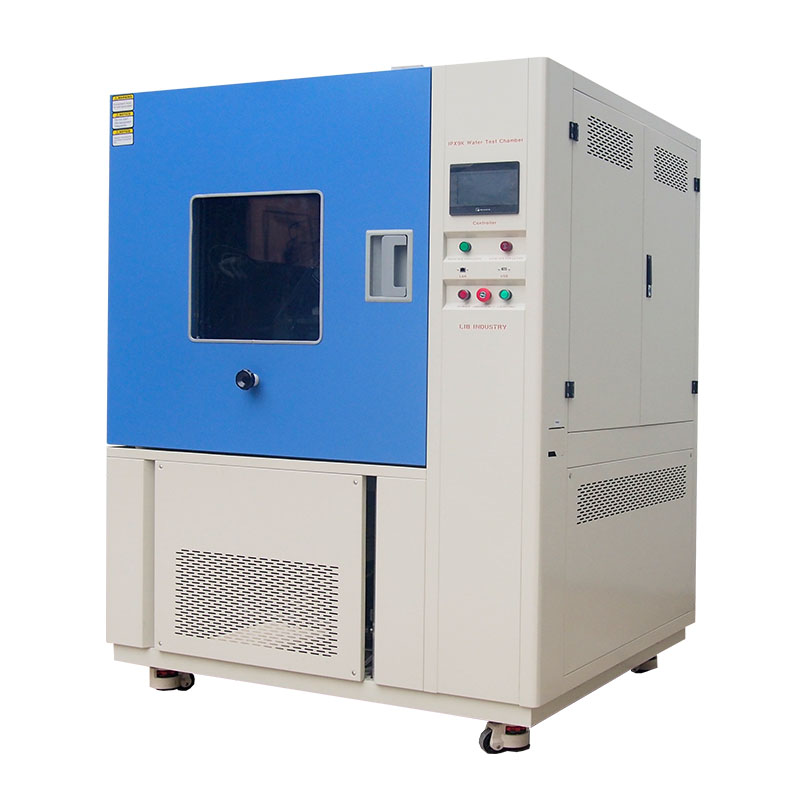

IPx9K High Pressure Water Spray Test chamber

INTRODUCTION

IPX9K high pressure water spray test chamber is widely used in the electronics, military and consumer product industries. IPX9K is the highest rating currently available for water ingress protection in accordance with IEC 60529 and ISO 20653.

Products under test is subjected to high pressure (8000 – 10000 Kpa), high temperature (+80°C) and water jets at a flow rate of 14 – 16 L/min.

IPX9K steam jet cleaning chamber built with a water re-circulation system that reduced water use and a series of water pipes. Automatic water supply ensures adequate supply of water and automatic testing.

All models are upgrade to programmable controller and Ethernet access that provides simple operation and control.

CHARACTERISTIC

  • IPX9K: protection against high pressure and temperature water jets
  • Rotating turntable for specimens, turntable speed: 5 r/min ± 1 r/min
  • Spray positions: 0, 30°, 60° 90°
  • The test duration is 30 s per position
  • Eliminates water consumption by circulation unit
  • Waterproof power connector in the test room
  • Automatic water supply
  • Programmable color display touch screen controller
  • USB and Ethernet
  • A viewing window with wiper

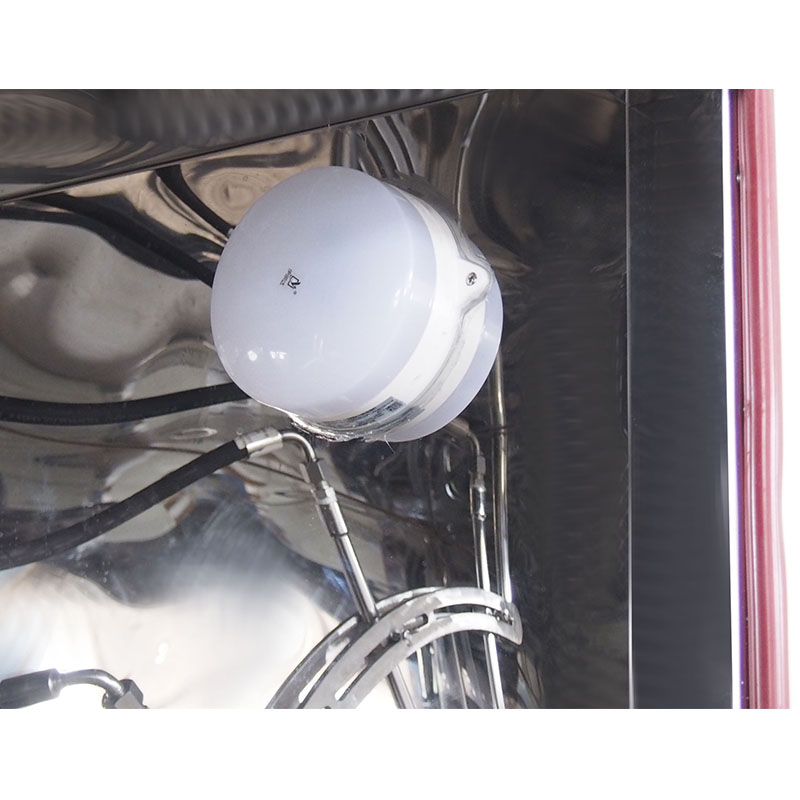

  • Internal illumination in test room
  • Safety protection system
  • CE mark



Product Details

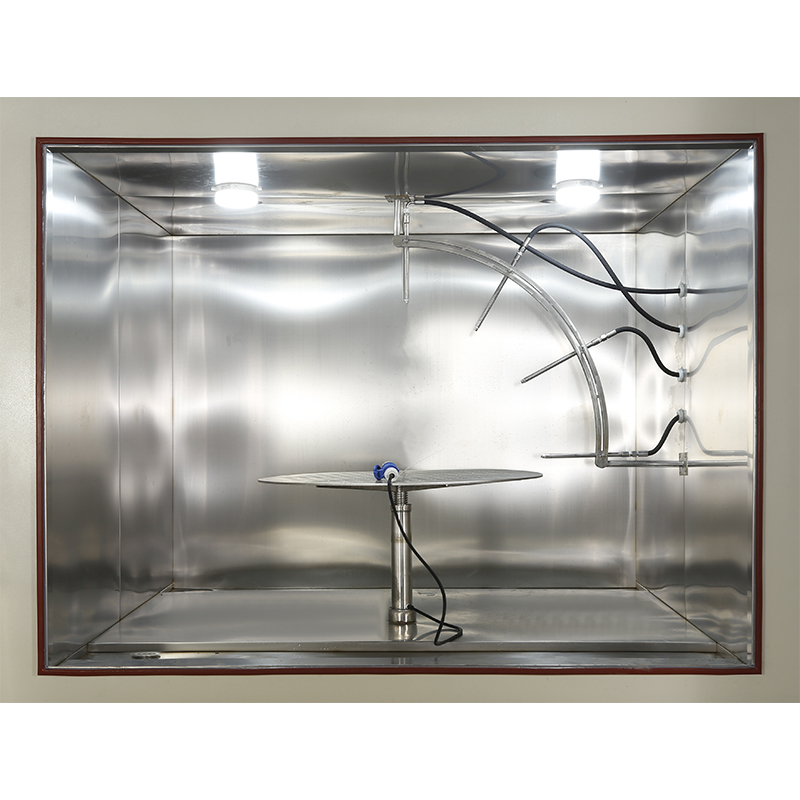

Workroom

The internal material is 304 stainless steel, mirror surface, rust-proof, high temperature and corrosion resistance;
The workroom is equipped with a single-phase 16A internal power interface to power up the test specimen;

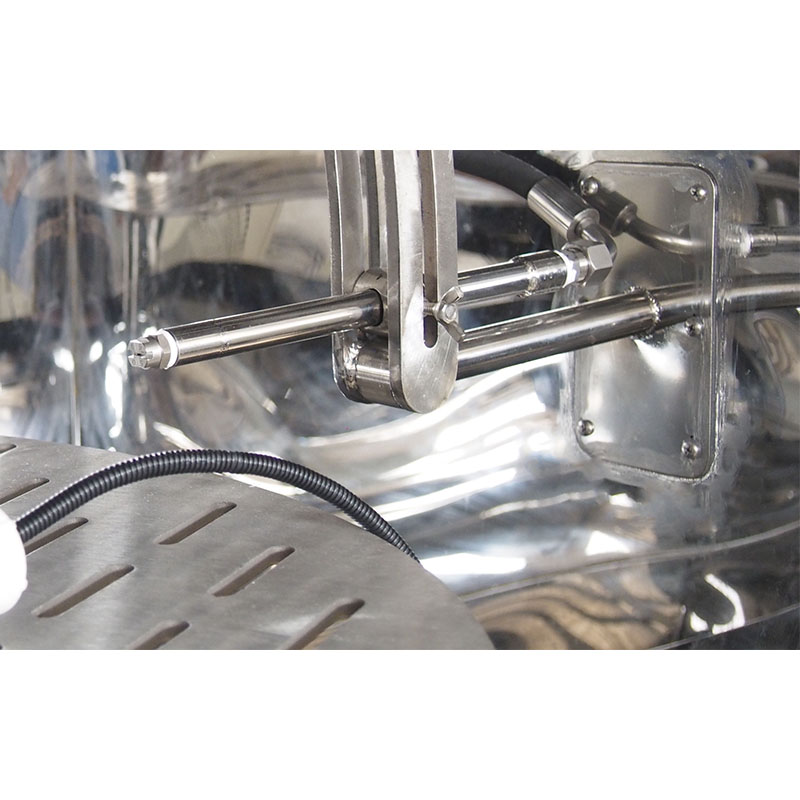

There are four nozzles, and the samples can be placed at four angles (0 °, 30 °, 60 °, 90 °) for high temperature and high pressure water jetting test;

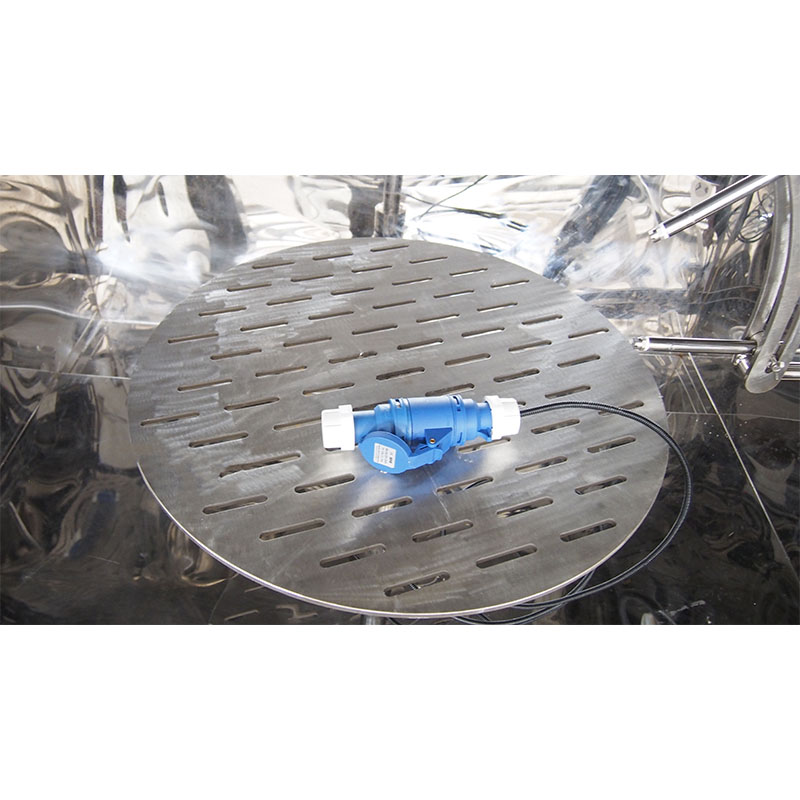

The turntable is made of 304 stainless steel, the speed and angle can be adjusted.





Application Area

IPx9K High Pressure Water Spray Test chamber is mainly used in automobile, electronics, military industry, for testing the waterproof performance of the protective material by simulating the natural wind and sand. The main components are communication equipment, outdoor lighting, auto parts, motorcycles and other products.

MODEL

Model R9K-1200
Internal dimensions (mm) 1000*1200*1000 D*W*H
Overall dimensions (mm) 1250* 1700* 2050 D*W*H
Water Spray Temperature ambient ~ 88℃ (Adjustable)
Water Spray Angle 0°,30°,60°,90°
Spray Nozzle Four, 30 seconds each position
Spray Range 30° ± 5°(Single hole);   Space 100-150mm
Distance from water spraying to specimens 10~15cm
Water Pressure 8000-10000 Kpa (adjustabl)
Water Flow Rate 14L-16L/min
Testing Platform Speed 5 ±1 r.p.m
Test Platform height 200-450mm, adjustable
Test Platform diameters 600mm
Load ≤100kg
Controller Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB
Pressure meter Alarm function Power protection, timing (to be automatic stop), water protection, motor overheating protection, water temperature overheating automatic drainage, water function
Interior material SUS304 stainless steel
Exterior material Steel Plate with protective coating
Power Supply 380V 50HZ



Warranty

3 Years Warranty, Lifelong Follow-up Services

LIB test chambers product all provide a three-year long-term warranty, and lib provides free maintenance and after-sales service within three years from the date of purchase.



Service

Professional customer service team, sales staff, after-sales team to solve customers’ problems online at any time.  We set up agent centers and local service centers to improve service efficiency.

LIB Industry concentrates on providing the Turn-key solution for environmental testing, that research, design, producing, commissioning, delivery, install and training, provide the whole products and service according to customer’s requirements. Tell us what you need, let us help you.
