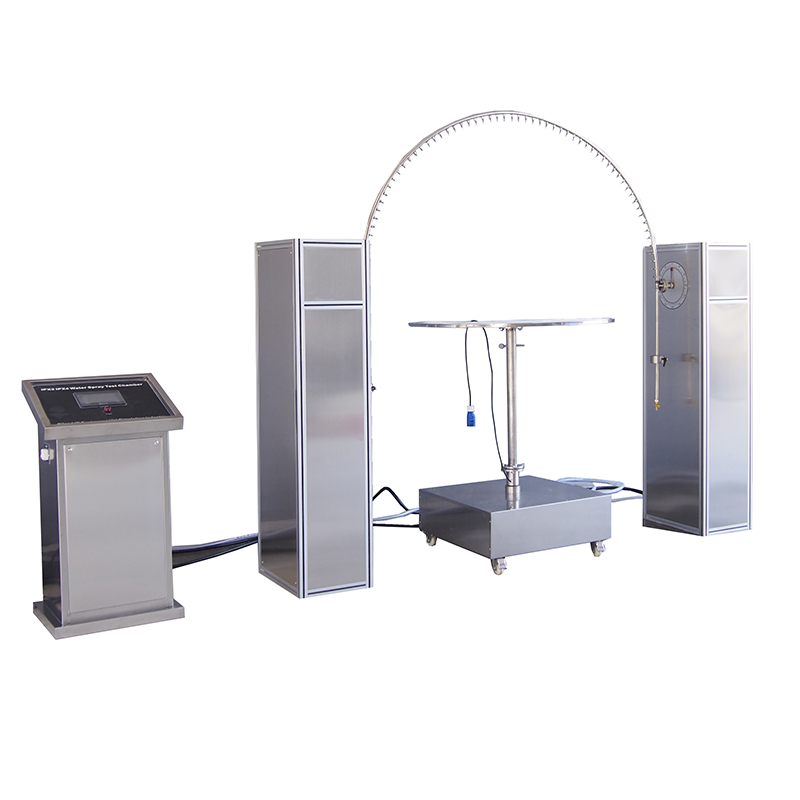

left

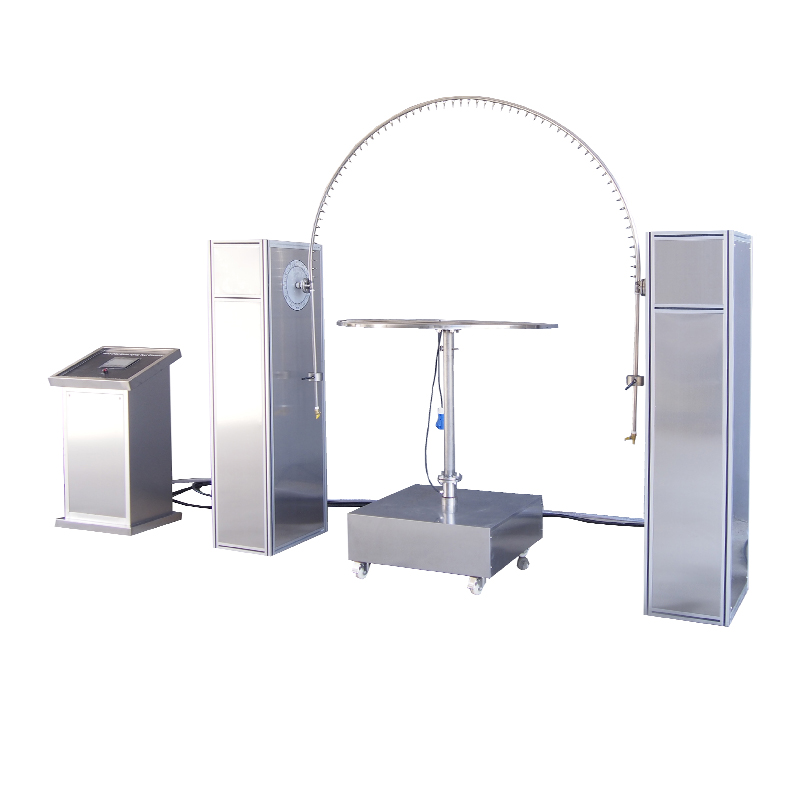

right

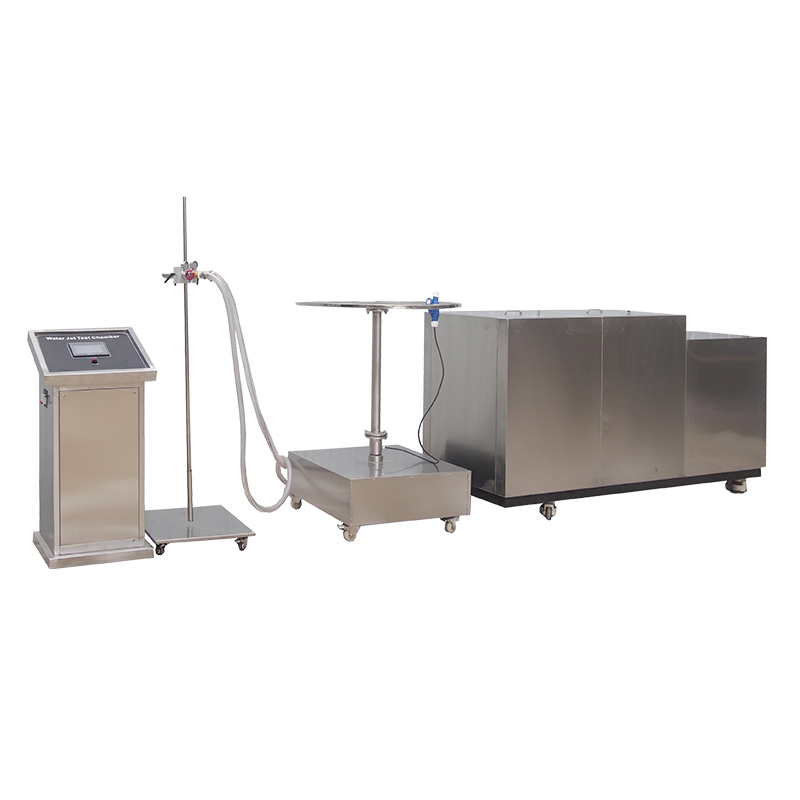

IPX5X6 grade

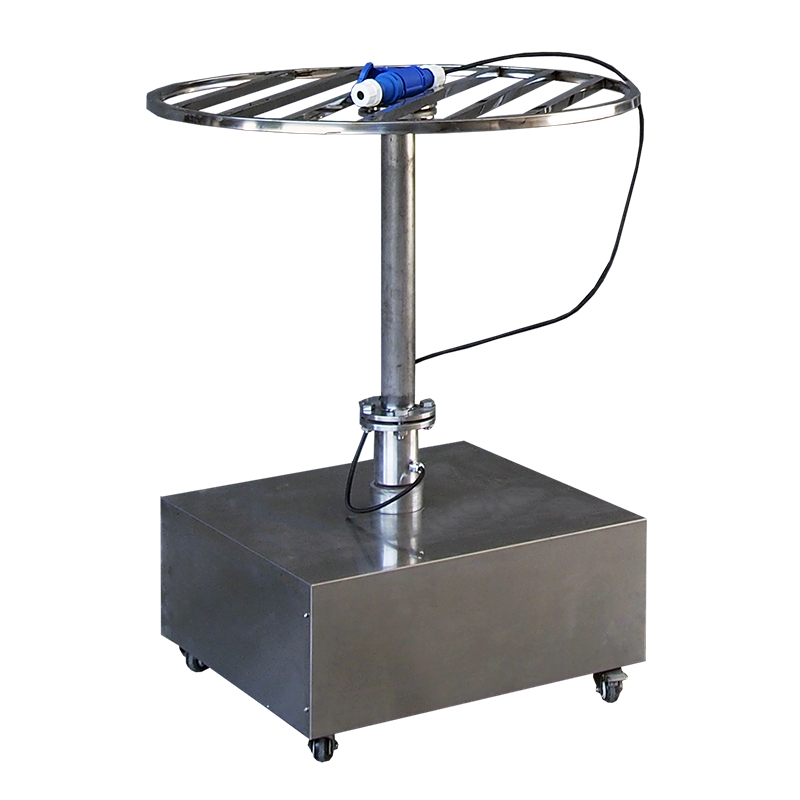

turnable

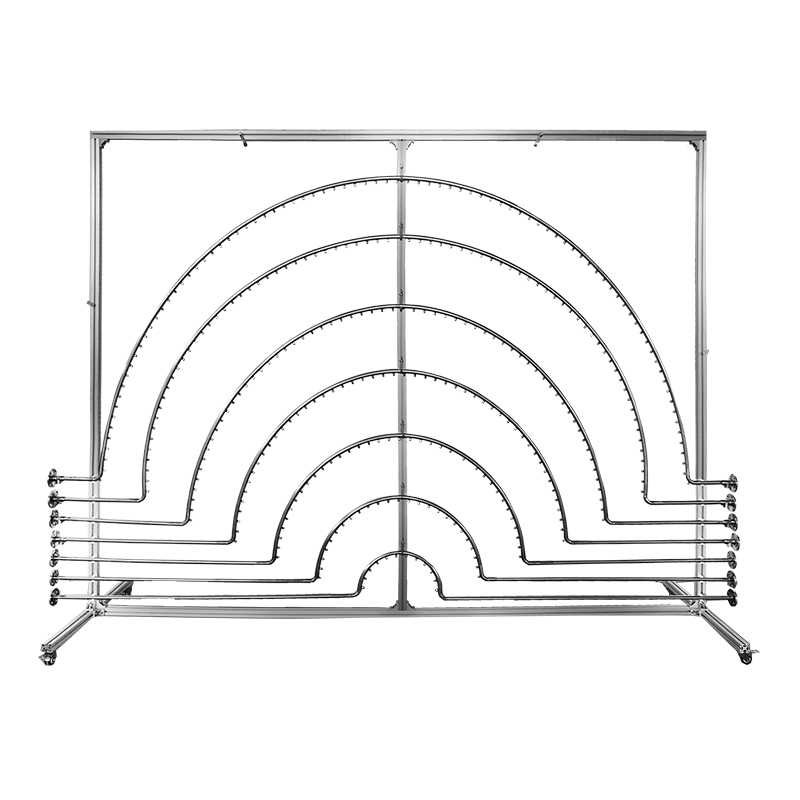

oscillating tube

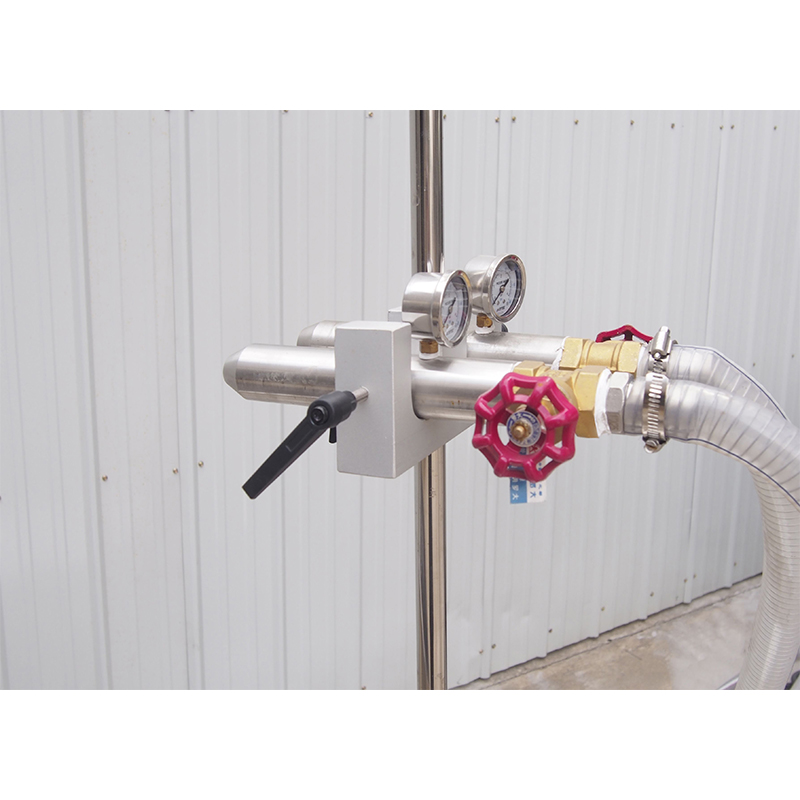

IPX5 spray nozzle

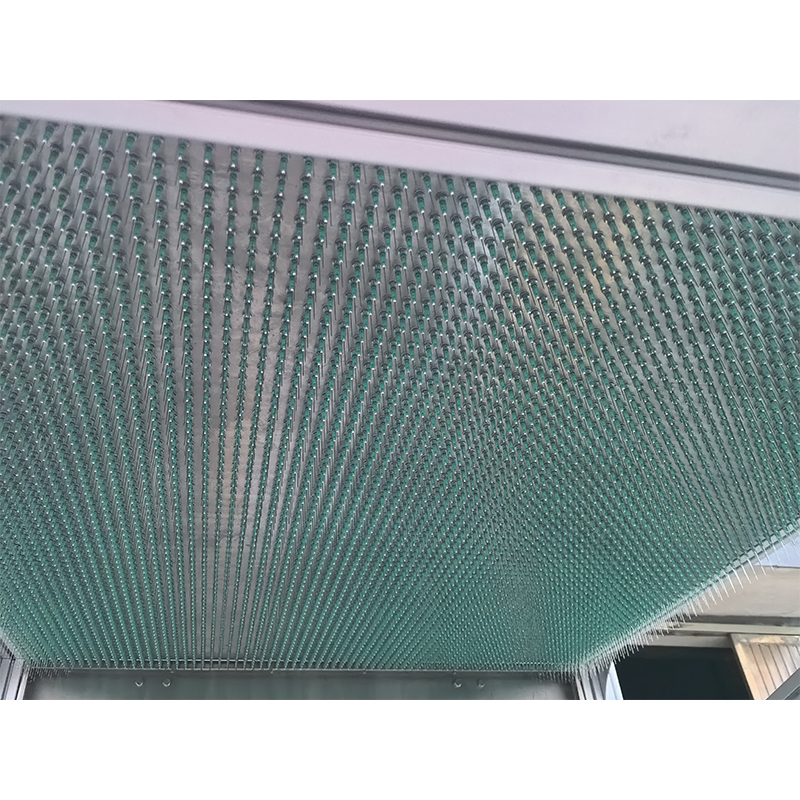

dripping tube

A Whole Set of Water Ingress IP Test Equipment -No Housing Type

INTRODUCTION

—A Whole Set of water spray IP Test Equipment, IPX1 X2 X3 X4 X5 X6 X7 X8 whole set of water ingress IP test equipment -No Housing Type.

—One complete system to perform IP dust and rain test, one stop solution for IP test.

—Open-Frame Structure provides 360° access ideal for large specimens and real-time observation.

—Built-In Water Recycling closed-loop circulation system with UV sterilization reduces water waste and supports sustainability.

—Flexible Turntable System adjustable height and tilt supports up to 50 kg for various product sizes and testing positions



CHARACTERISTIC

Comprehensive IPX Test System: Provides a complete set of IPX1–IPX8 waterproof testing equipment, ideal for building a full laboratory-grade waterproof test system.

Multi-Level Drip & Spray Testing: Includes IPX1 vertical drip, IPX2 15° inclined drip, and IPX3/IPX4 oscillating spray tests, covering essential ingress protection levels.

Wide Range of Oscillating Tubes: Equipped with 8 oscillating tubes (radius: 200mm to 1600mm), allowing flexible spray testing to accommodate various specimen sizes.

High-Velocity Jet Testing Capability: Supports IPX5 and IPX6 testing for strong water jet resistance, simulating high-pressure water exposure for outdoor-use products.

Immersion Testing Functionality: Includes IPX7 and IPX8 immersion tanks to evaluate short-term and long-term submersion resistance under different water depths.

Laboratory Integration Ready: Designed for full integration into lab environments, offering structured, scalable waterproof testing with accurate, repeatable results.

MODEL

Model RNH-12   (IPX1X2 Test Equipment)
IPX1X2 Drip Tray(mm) 1400(D)*1400(W)
IPX1X2 External Shelf 1600(D)*1600(W)*2500(H)
Water flow rate 1+/-0.5mm/min for IPX1;
3+/-0.5mm/min for IPX2
IPX1X2 hole diameters φ0.4mm
IPX1X2 hole spacing 20mm
Turntable dimensions (mm) 600mm
Turntable loads 50KG
Water supply system Booster pump, Water purification system



Model

RNH34 (IPX3X4 Test Equipment)

Controller

Programmable color touch screen controller, Ethernet for PC link

Standard

IEC60529

Material

SUS304 stainlesssteel

IPX3X4 oscillating tube radius

8pcs. (200mm, 400mm, 600mm, 800mm, 1000mm, 1200mm, 1400mm, 1600mm)

IPX3X4 flow rate per hole

0.07L/min

IPX3X4 spraying hole diameters

φ0.4mm

Hole spacing

50mm

Turntable dimensions (mm)

600mm

Turntable loads

50KG

Water supply

Water purification system



Model

RNH-56 (IPX5X6 Test Equipment)

Controller

Programmable color touch screen controller, Ethernet

Water tank (mm)

800*800*800

Standard

IEC60529

Material

SUS304 stainlesssteel

Diameter of nozzle

IPX5 nozzle 6.3mm;

 IPX6 nozzle 12.5mm.

Water flow rate

12.5L/min for IPX5, 100L/min for IPX6

Turntable dimensions (mm)

600mm

Turntable loads

50KG



FQAs

Q1: Can LIB provide a full IP waterproof test system for my lab setup?

A: Yes. LIB offers a complete IPX1–IPX8 waterproof testing system, fully equipped for lab integration and compliant with international standards.

Q2: What warranty and after-sales services does LIB provide?

A: LIB provides a 3-year warranty and lifelong maintenance. If equipment problems cannot be solved, we offer free replacement of the test chamber to ensure your operations continue smoothly.

Q3: How does LIB provide shipping and technical support?

A: LIB offers fast and secure worldwide shipping via multiple transport methods, with spare parts typically delivered within 7–15 days. Our professional English-speaking technical team is available 24/7 for ongoing support and troubleshooting. Contact us anytime for reliable assistance.
