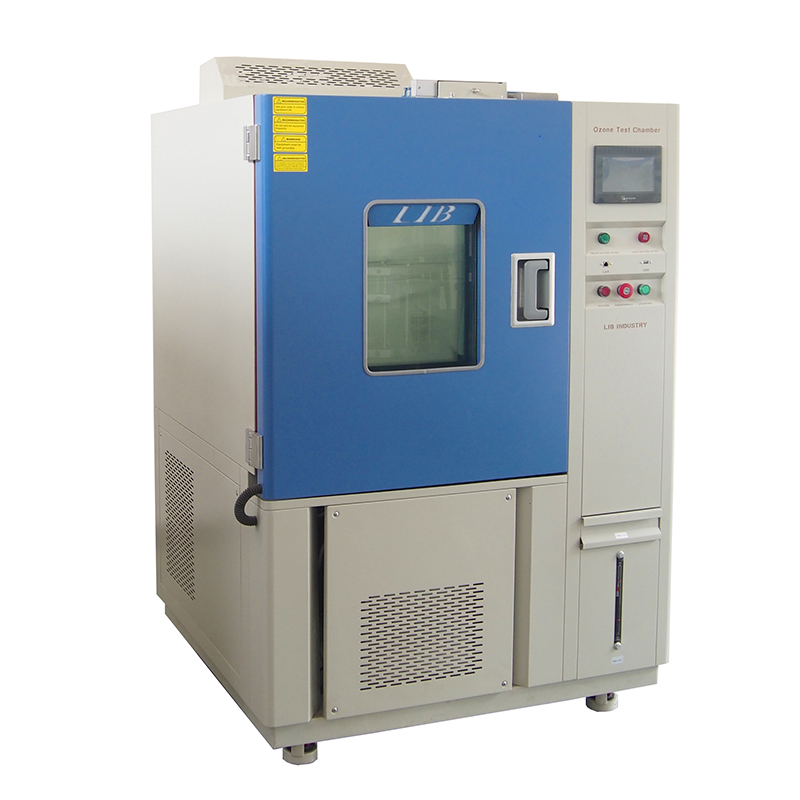

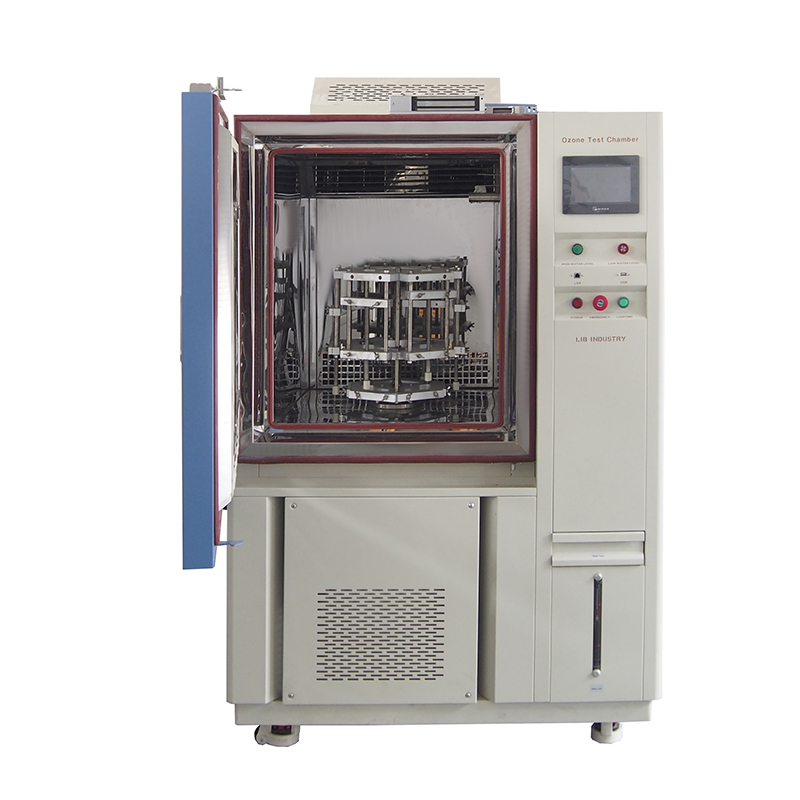

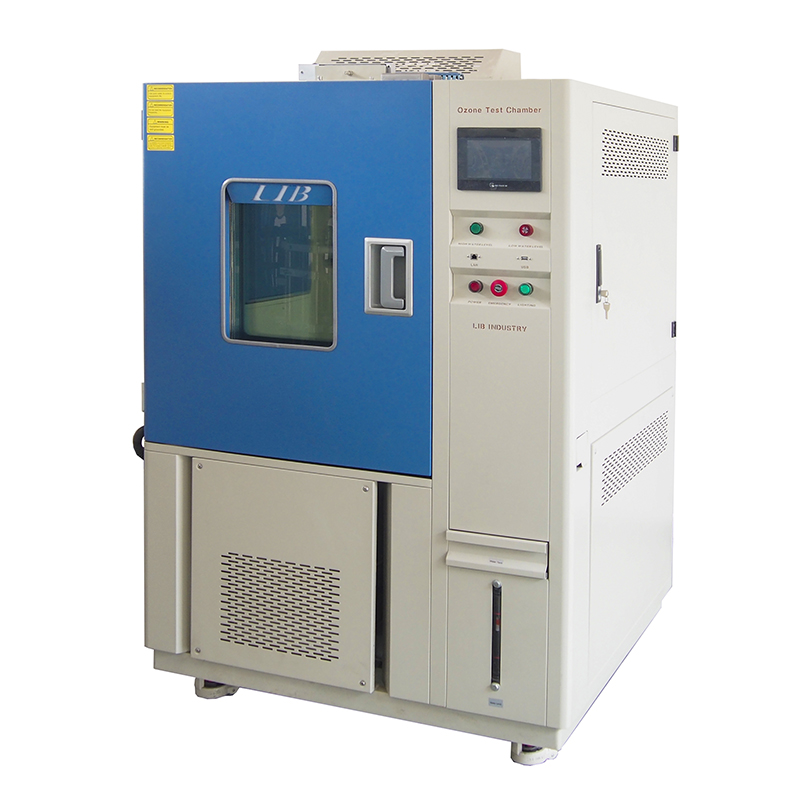

Ozone Aging Test Chamber

INTRODUCTION

Ozone Resistance Test Chambers test elastomers (rubber) in the condition of ozone exposure, to simulate and measure rubber aging by means of ozone within a few days. Built with dynamic and static sample holders and others in accordance with test method of ASTM D1149, IEX6006811-403, ISO1431, ASTM D1171. All models are upgrade to programmable controller and Ethernet access that provides simple operation and control

CHARACTERISTIC

  • The internal material is 304 stainless steel, mirror surface
  • Static + dynamic combined sample holder can stretch samples
  • Automatic control and supply ozone gas
  • Temperature control and display unit
  • Humidity control and display unit
  • PID programmable color touch screen controller, network connection computer
  • Door lock is an electromagnetic lock
  • Install 4 castors for ease moving, and with brakes function
  • USB and Ethernet
  • Electromagnetic lock to prevent door from opening under working
  • The ozone exhaust device is equipped with an activated carbon to absorb ozone to make workplace clean and safe
  • CE mark



Product Details

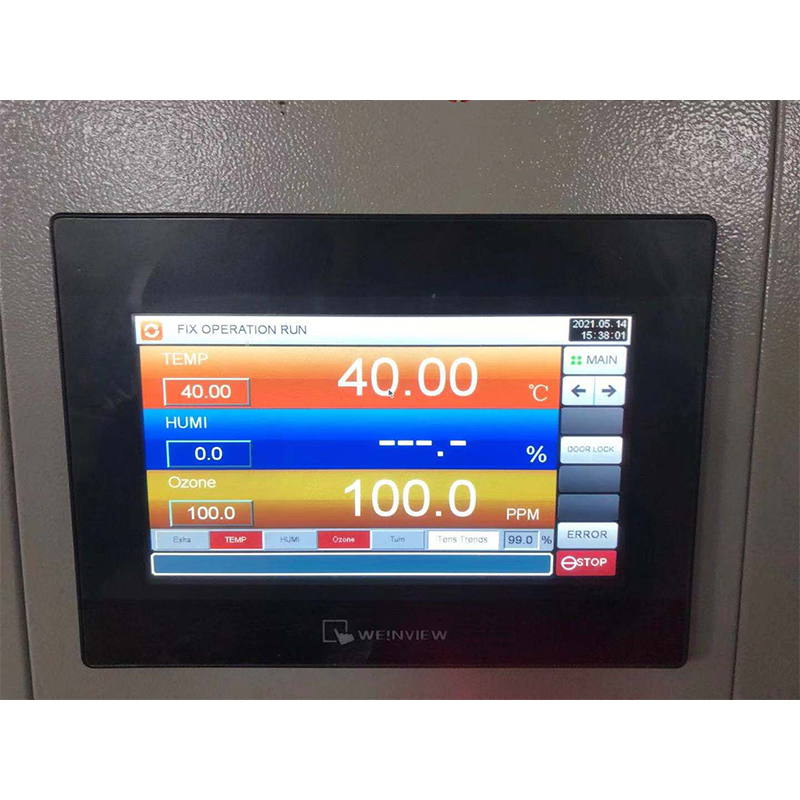

Controller

PID programmable color touch screen controller, network connection computer;
Can edit 100 programs 20 segment;
LIB also can preset program into the controller based on user testing requirements;
The set system language is English for standard.

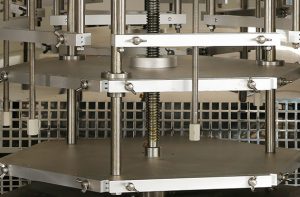

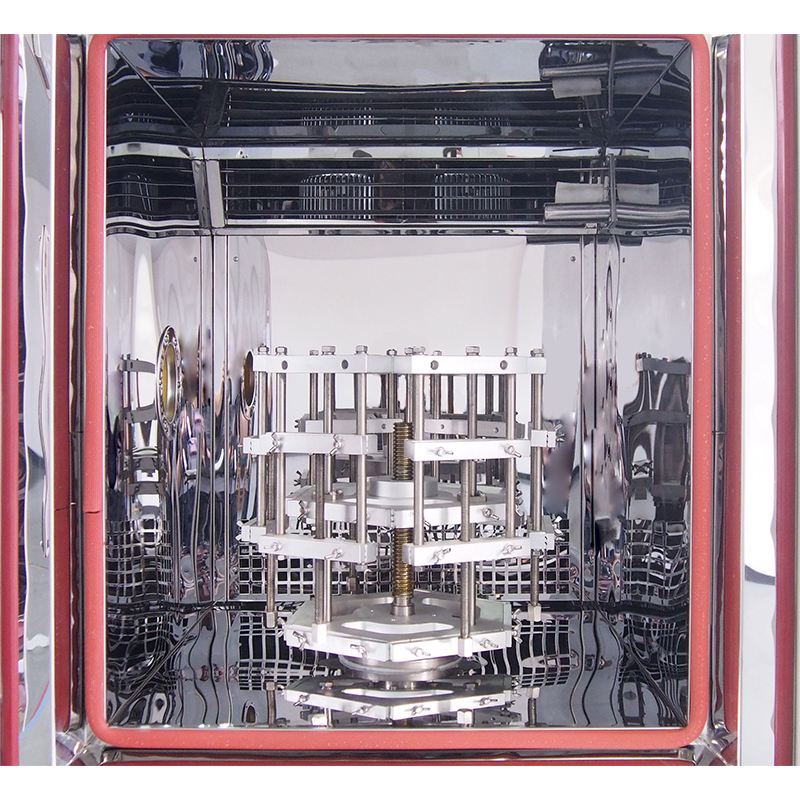

Rotating Sample Holder

Static + dynamic combined sample holder can stretch samples;
Rotating sample holder allows the sample to be evenly exposed to the ozone condition.

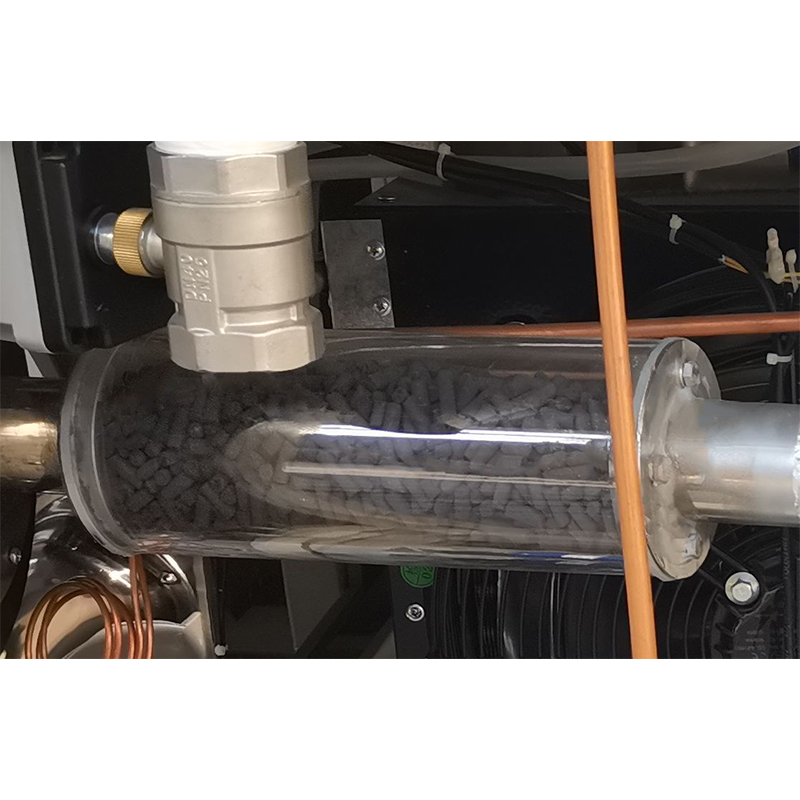

Ozone Exhaust Device

The ozone exhaust device is equipped with an activated carbon to absorb ozone to make workplace clean and safe;

Exhaust the gas after the test, automatic controlled on controller.



Ozone Sensor

Ozone gas concentration detection transmitter;

High accuracy, easy to exchange



Application Area

     Ozone Resistance Test Chambers is widely used in automobile, aerospace, aviation, military, daily necessities, raw materials and other industries, for testing the corrosion resistance and service life of the product by simulating extremely harsh natural environments. The main test pieces have rubber、 cables、tires、 rubber seal strip and other rubber products.

MODEL

Model OC-250 OC-500 OC-800 OC-010
Internal dimensions (mm) 600*600*700 700*800*900 800*1000*1000 1000*1000*1000
Overall dimensions (mm) 960*1150*1860 1180*1350*2010 1280*1550*2110 1500*1550*2110
Temperature range 0℃~100℃
Humidity range 30% – 98%R.H
Temperature fluctuation ±0.5℃
Temperature deviation ± 2.0 ℃
Humidity deviation ± 2.5% RH
Cooling rate Ambient~ 0℃ within 20 min.
Ozone concentration 1~1000PPHM
Sample holder rotate speed 0~10 r/min
Airflow rate 0 ~ 60L/min
Clamps tensile stretch  5%~35%
Controller Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB
Cooling system Mechanical compression refrigeration system
Safety device Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection, Earth leakage protection;
Exterior material Steel Plate with protective coating
Interior material SUS304 stainless steel
Power & voltage AC380V 50HZ
Standard ASTM D 1149; IEC60811-403; ISO 1431; JIS K6259; ASTM D1171
