Xi'an LIB Environmental Simulation Industry

Lead Provider of Environmental Test Chamber

Home Product Walk-In & Drive -In Chambers
front side

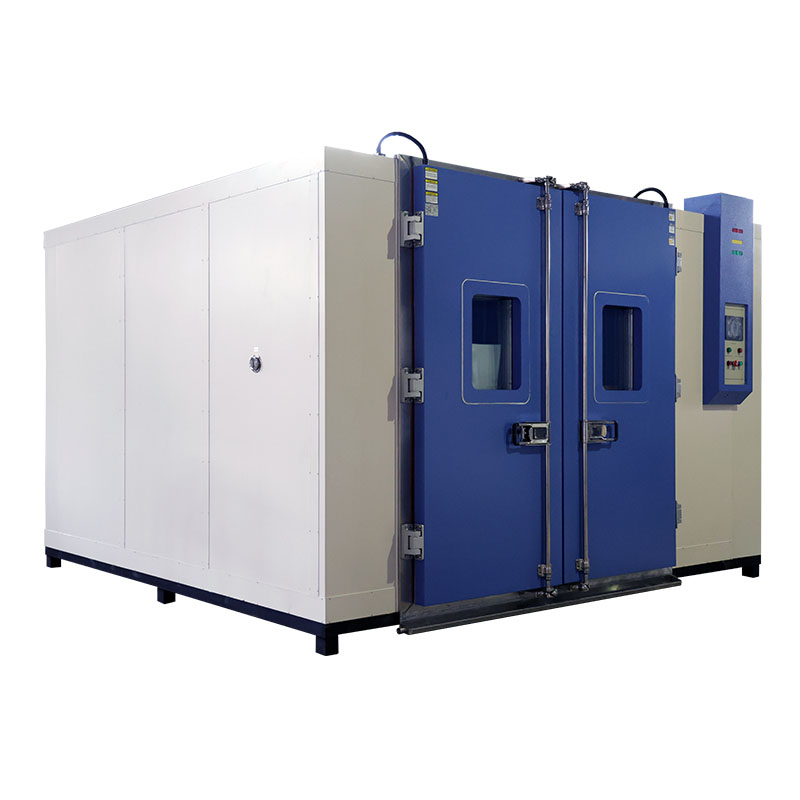

left side

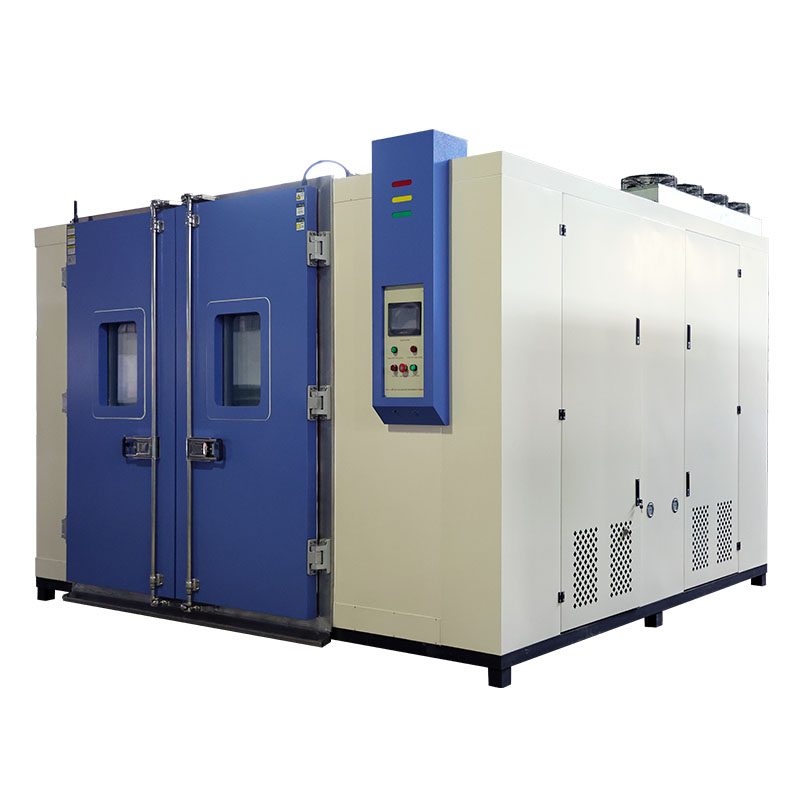

right side

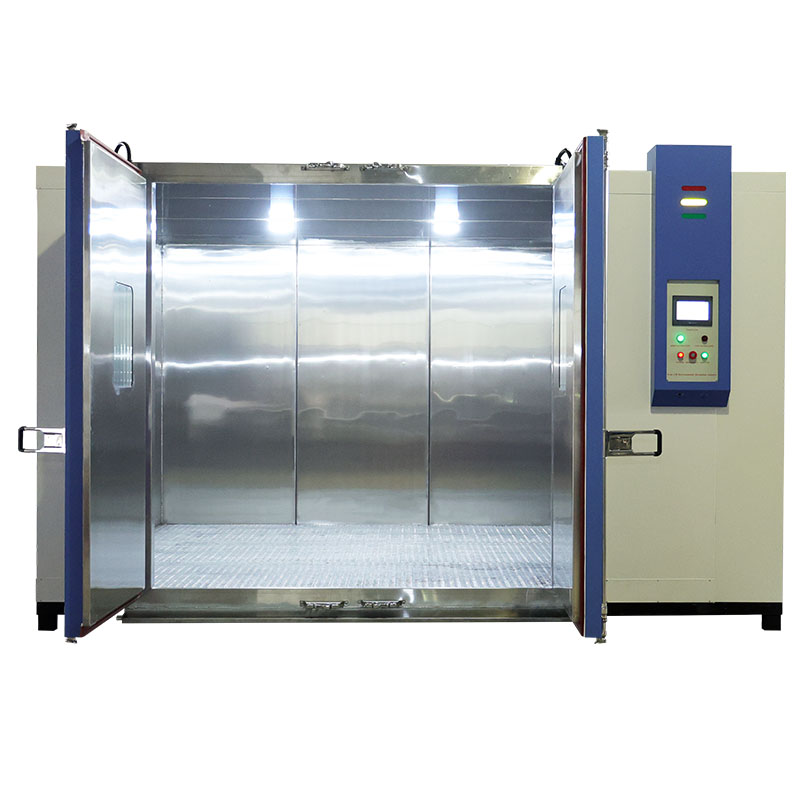

opening side

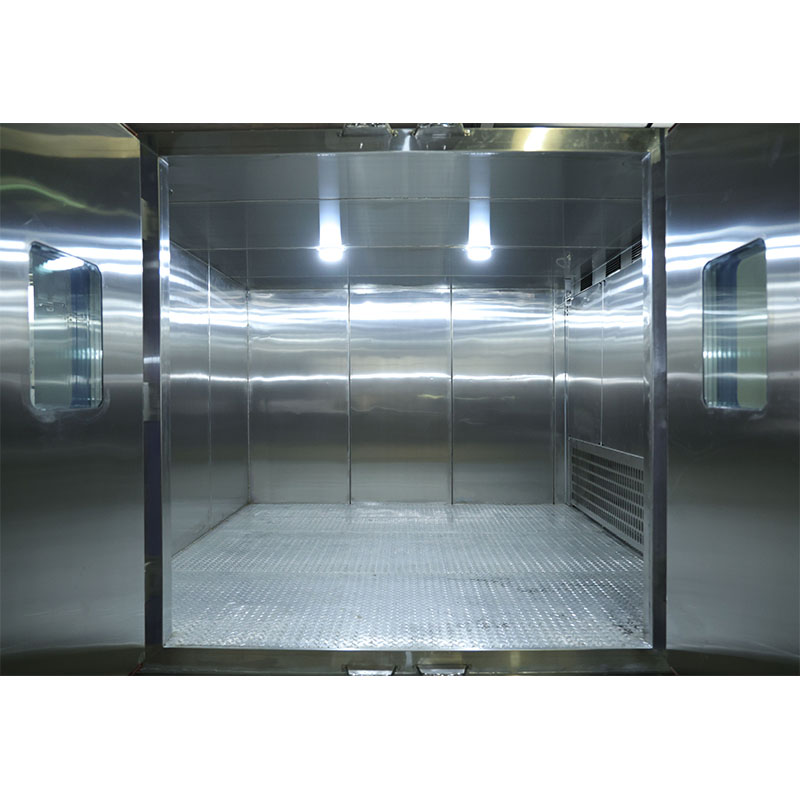

workroom

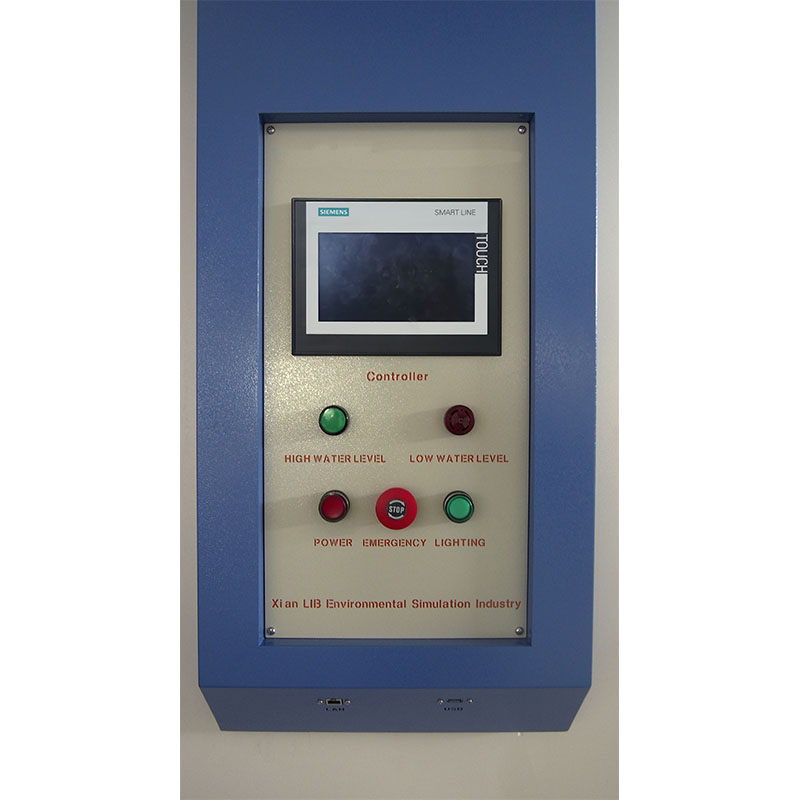

controller

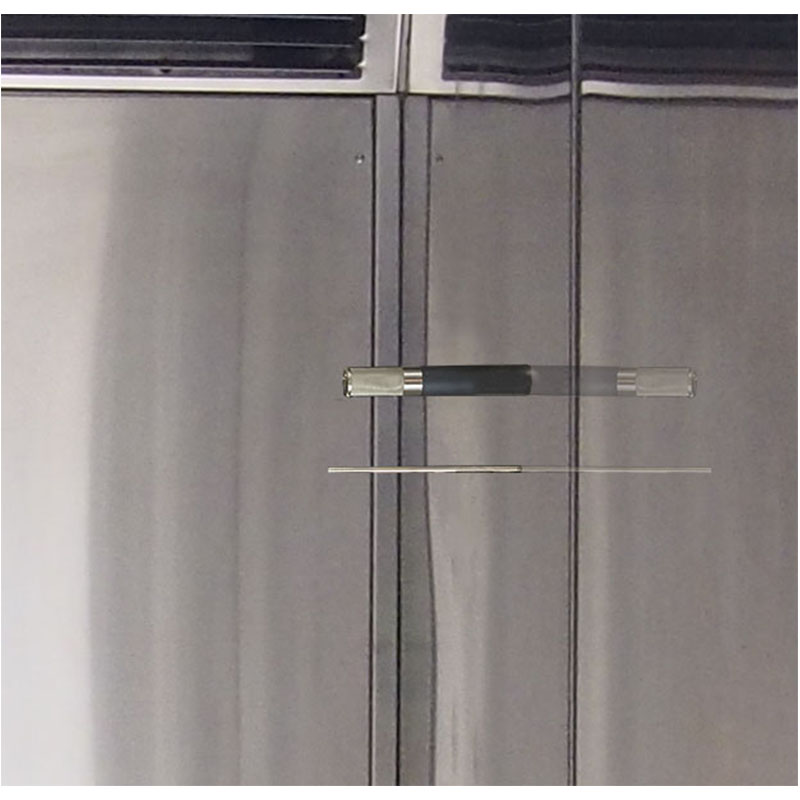

sensor

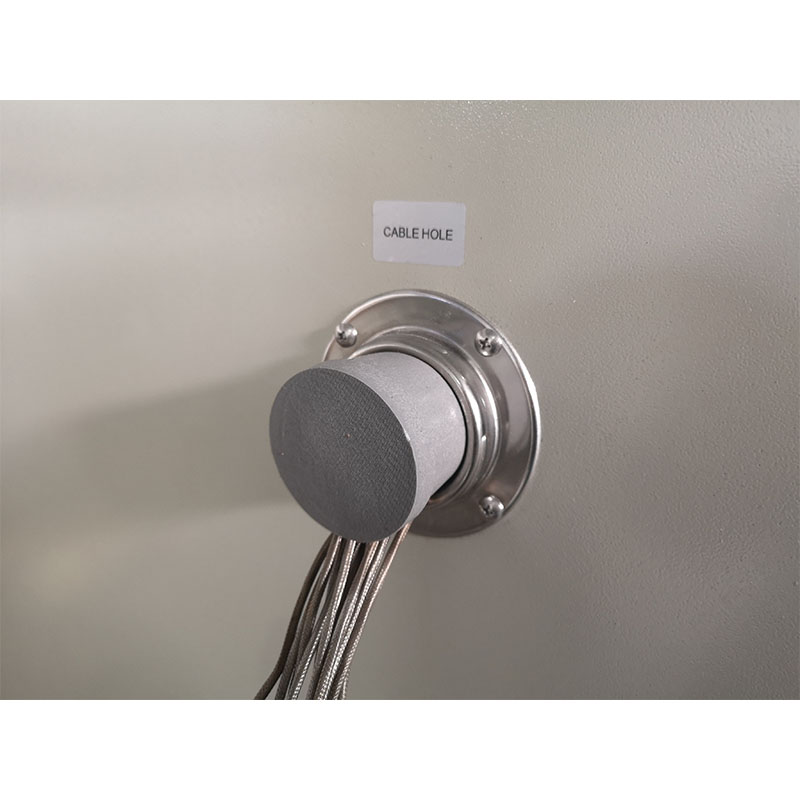

cable hole

Walk-In & Drive -In Chambers

INTRODUCTION

—LIB Industry designs and manufactures walk in chambers.

—These walk-in chambers are in piece assembling structure, which enables on-site installation and commissioning.

—With large volume, the chamber can be used to simulate the single or complicated environmental factors in the atmosphere such as temperature, humidity, salt fog, illumination, dust, rain, and vibration.

—The products can be used to analyze and evaluate the property and performance of the batch elements and parts or machine sets under simulated conditions, and can also be used in experiment and production.

CHARACTERISTIC

Versatile Chamber Configurations: Available as walk-in and drive-in chambers to accommodate large products, vehicles, or palletized loads for full-scale environmental testing.

Flexible Structural Options: Offered in both integrated and disassembling types, ensuring smooth installation in restricted spaces or for later relocation.

Customized Design & Build: Supports tailored design, construction, and configuration based on specific test requirements, industry standards, and facility layout.

On-Site Engineering Support: Professional engineers provide on-site installation, calibration, and technical guidance to ensure successful setup and operation.

Comprehensive Technical Support: Backed by full technical assistance and parts support, ensuring smooth operation, quick issue resolution, and long-term performance stability.

Comprehensive Project Management: LIB offers end-to-end service from consultation to final commissioning, delivering turnkey solutions for complex environmental test chambers.

MODEL

Model

WTH-0015C

Internal dimension (mm)

2500*2500*2500 D*W*H

Overall dimension (mm)

4000*2550*2850 D*W*H

Temperature range

 -70℃ ~ +150℃

Humidity range

10% ~ 95% RH

Temperature fluctuations

± 2.0℃

Humidity  fluctuations

± 5.0% RH

Heating rate

1℃ / min

Cooling rate

1 ℃ / min

Controller

Programmable color LCD touch screen controller, PC Link, Ethernet port

Cooling system

Mechanical compression refrigeration system

Safety device

Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection

Exterior material

Steel Plate with protective coating

Interior material

SUS304stainlesssteel

Power Supply

400V 50HZ

Environmental conditional

5℃~+40 ℃   ≤85% RH



FAQs

Q1: Does LIB provide installation and technical support for large chambers?

A: Yes, LIB offers on-site installation, full technical assistance, and end-to-end project support to ensure your chamber runs smoothly from setup to operation.

Q2: What warranty and after-sales services does LIB provide?

A: LIB provides a 3-year warranty and lifelong maintenance. If equipment problems cannot be solved, we offer free replacement of the test chamber to ensure your operations continue smoothly.

Q3: How does LIB provide shipping and technical support?

A: LIB offers fast and secure worldwide shipping via multiple transport methods, with spare parts typically delivered within 7–15 days. Our professional English-speaking technical team is available 24/7 for ongoing support and troubleshooting. Contact us anytime for reliable assistance.
