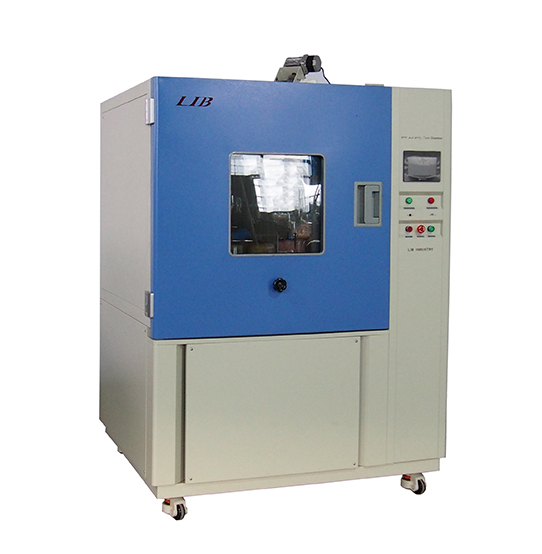

Front side

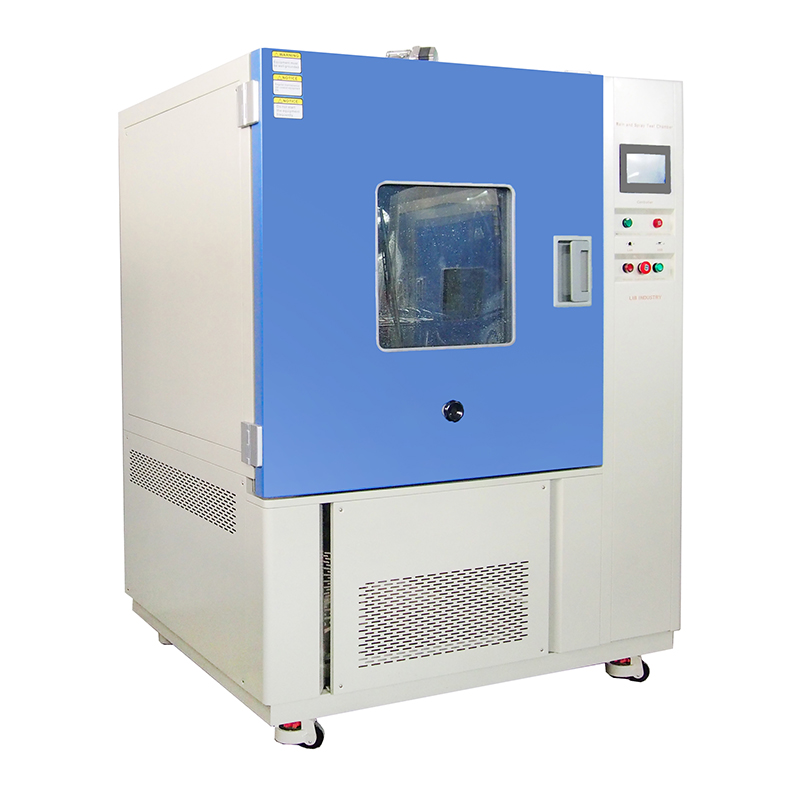

left

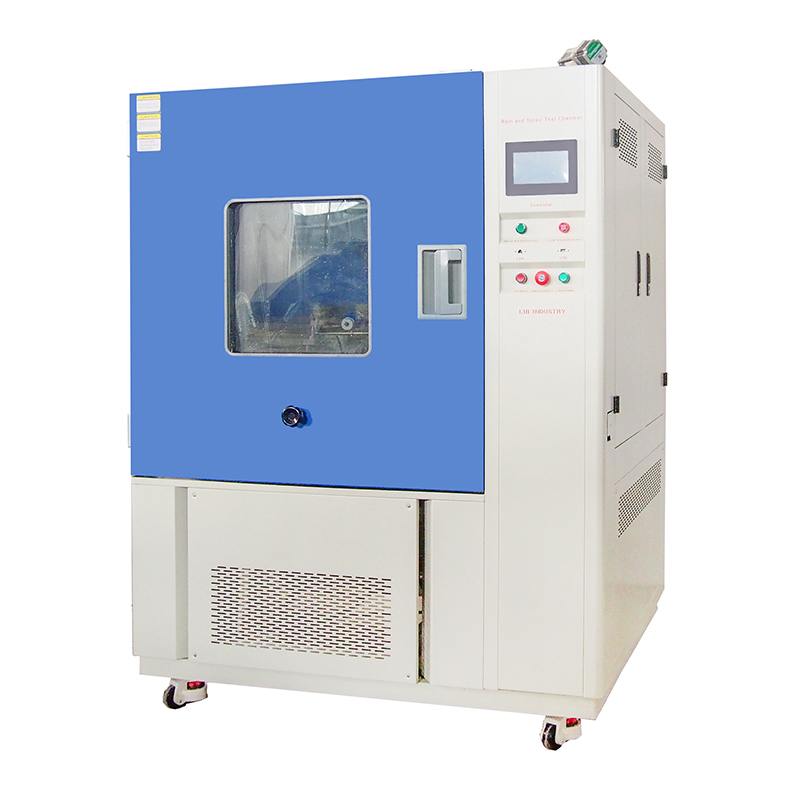

right

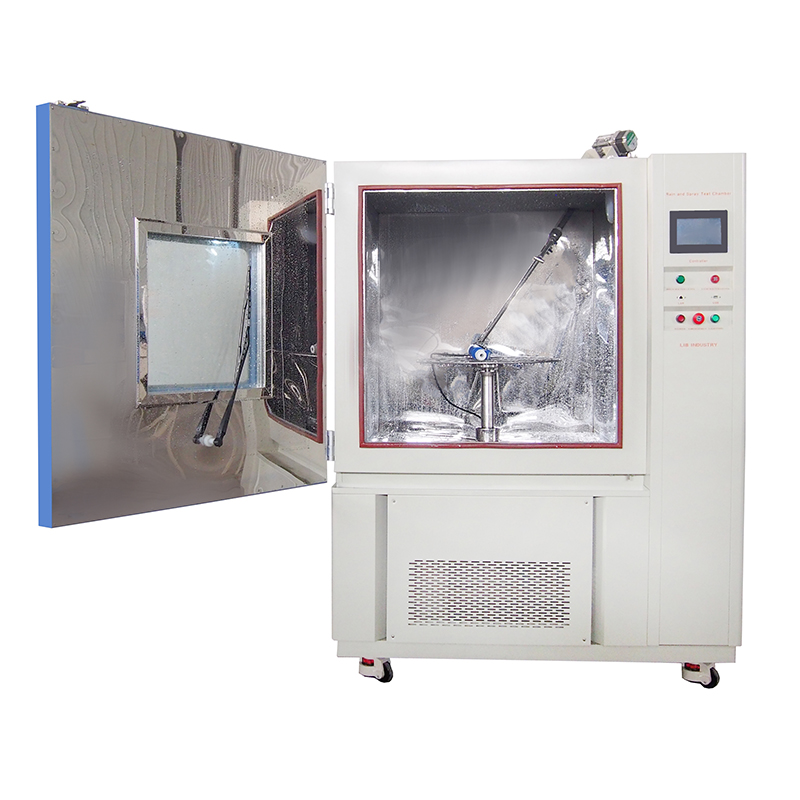

innner

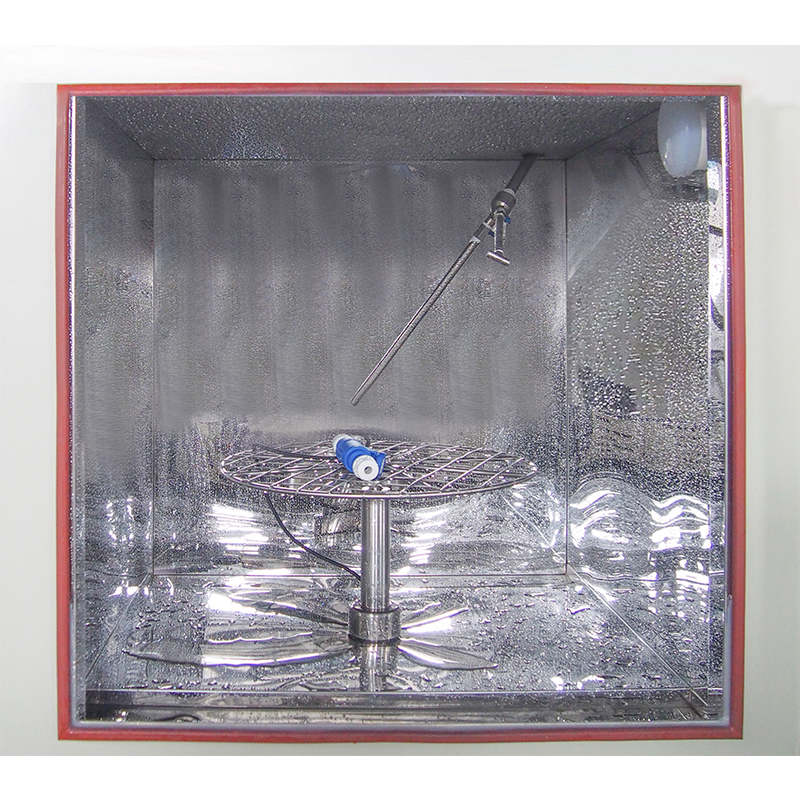

workroom

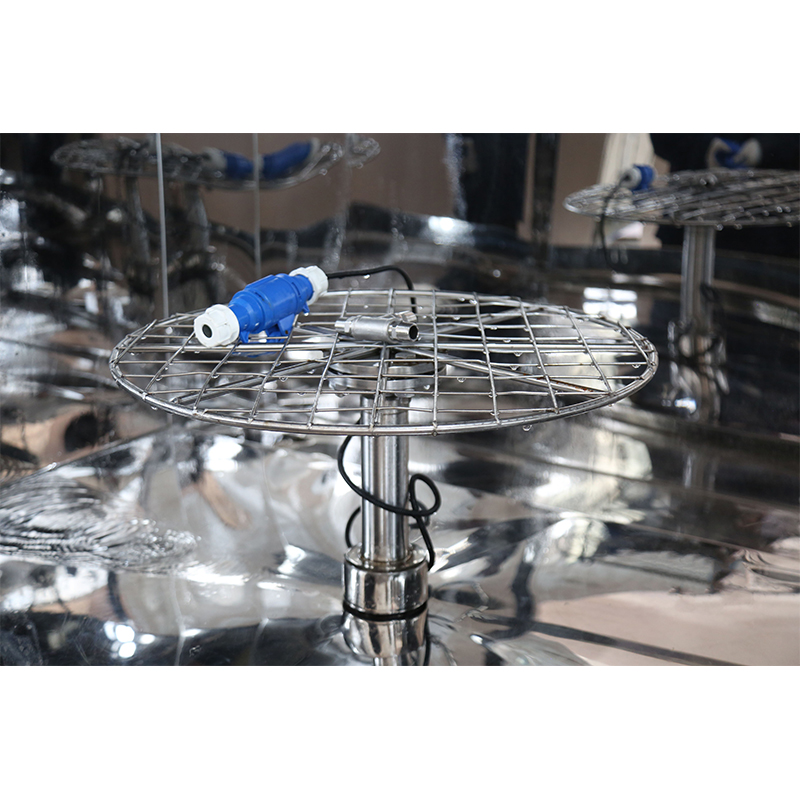

turntable

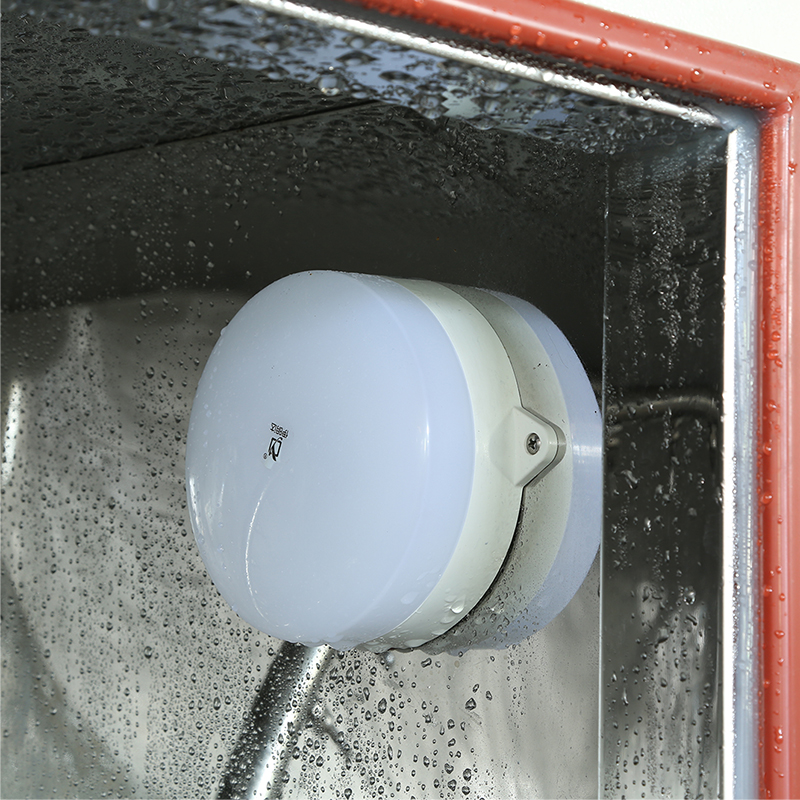

LED light

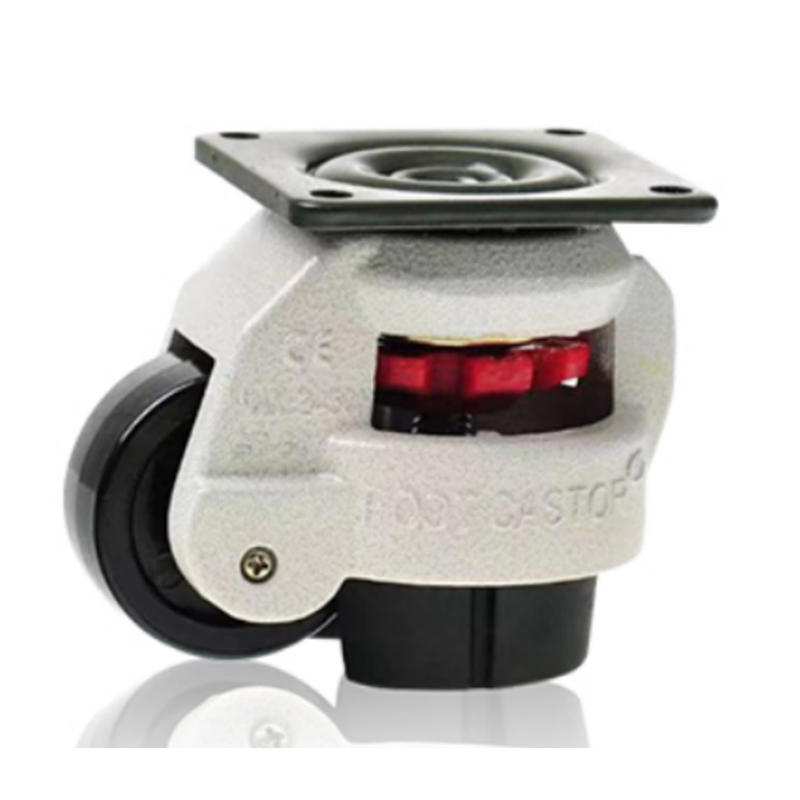

caster

JIS D 0203 Rain and Spray Test Chamber

INTRODUCTION

—LIB JIS D 0203 Rain and Spray Test Chamber can perform the waterproof performance test in accordance with the standard JIS D 0203.

—The workroom is equipped with 40 spray nozzles and 2 rain nozzles, and the spray room is equipped with a water circulation system to reduce water consumption and effectively save water resources.

—Automatic water supply ensures adequate supply of water and automatic testing.

—The multi-function touch screen controller device is used for convenient operation, and the Ethernet connection is convenient for downloading test data, and can also be used for remote control of equipment testing.

—Comply with the certification of production international standards.



CHARACTERISTIC

Compliance: Supports R1/R2 rain and S1/S2 spray tests with 2 rain nozzles and 40 spray nozzles, fully compliant with JIS D 0203 standard for automotive waterproof testing.

Precise Flow & Pressure Control: Equipped with a flow meter to regulate water pressure accurately during testing, ensuring reliable and repeatable results.

Water-Saving Circulation System: Integrated water re-circulation system and automatic water supply reduce consumption and maintain stable water conditions throughout the test.

Durable Stainless Steel Construction: Test chamber is built with mirror-finished 304 stainless steel, offering excellent corrosion resistance and long-lasting structural integrity.

Advanced Programmable Control: Color touchscreen controller with USB and Ethernet access enables easy operation, remote control, and seamless data export.

Certified & Customizable Design: CE certified with standard or fully customized options, tailored for the automotive industry and diverse testing needs.

MODEL

Model

R-1000JIS

Internal Dimensions (mm)

1000*1000*1000 D*W*H

Overall Dimensions (mm)

1100*1460*1900 D*W*H

Interior Volume (L)

1000

Distance from Specimen to Nozzle

Approx.400mm

Rain Nozzle

2 holes

Rain Nozzle Hole

Φ0.5mm

R1 Water Flow Rate

1.9L/min.

R2 Water Flow Rate

3.3L/min.

Spray Nozzle

40 holes

Spray Nozzle Hole

Φ1.2mm

S1 Water Flow Rate

24.5L/min

S2 Water Flow Rate

39.2L/min

Water Pressure at Nozzle

0.03 ~ 0.30MPA

Turntable Rotation Speed

17r/min

Water Pressure Control

Flow meter

Controller

Programmable color LCD touch screen controller

Safety Device

Over-temperature Protection; Over-current Protection;

Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection

Exterior Material

Steel Plate with protective coating

Power Supply

380V 50Hz

Standard

JIS D0203



FQAs

Q1: What types of waterproof tests can this chamber perform?

A: It supports R1/R2 rain and S1/S2 spray tests according to JIS D 0203, ideal for automotive waterproof testing.

Q2: What warranty and after-sales services does LIB provide?

A: LIB provides a 3-year warranty and lifelong maintenance. If equipment problems cannot be solved, we offer free replacement of the test chamber to ensure your operations continue smoothly.

Q3: How does LIB provide shipping and technical support?

A: LIB offers fast and secure worldwide shipping via multiple transport methods, with spare parts typically delivered within 7–15 days. Our professional English-speaking technical team is available 24/7 for ongoing support and troubleshooting. Contact us anytime for reliable assistance.
