Lead Provider of Environmental Test Chamber
—Covers temperature extremes from –50 °C to +150 °C and humidity from 30 % to 98 % RH for comprehensive environmental stress testing.

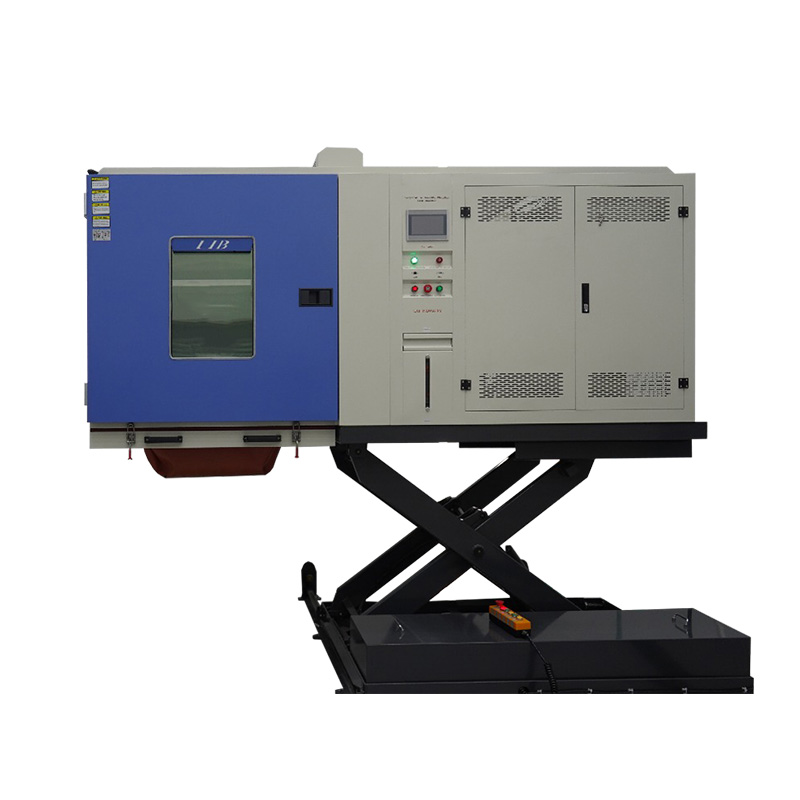

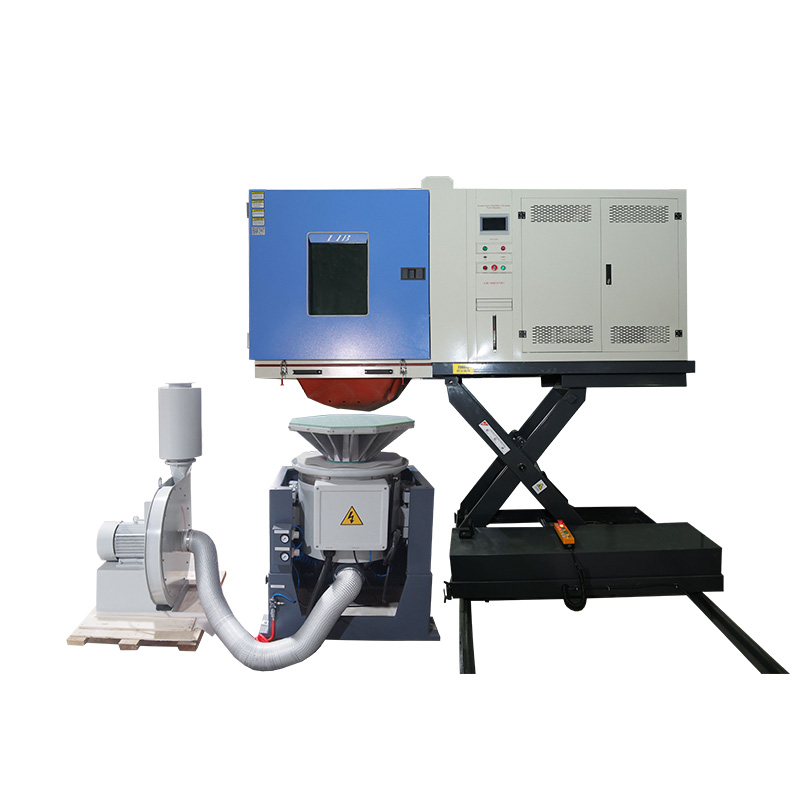

—Built‑in ￠240 mm electrodynamic shaker supports up to 500 kg, with optional hydraulic lift platforms for varying test heights.
—Stainless‑steel SUS304 interior and coated‑steel exterior ensure corrosion resistance and long‑term durability.
—Programmable control via RS232/USB interface enables custom test profiles, data logging, and automated operation.
Integrated Temp‑Humidity‑Vibration Testing: Combines rapid thermal cycling, precise humidity control, and electrodynamic vibration in one chamber to streamline multi‑factor reliability assessments.

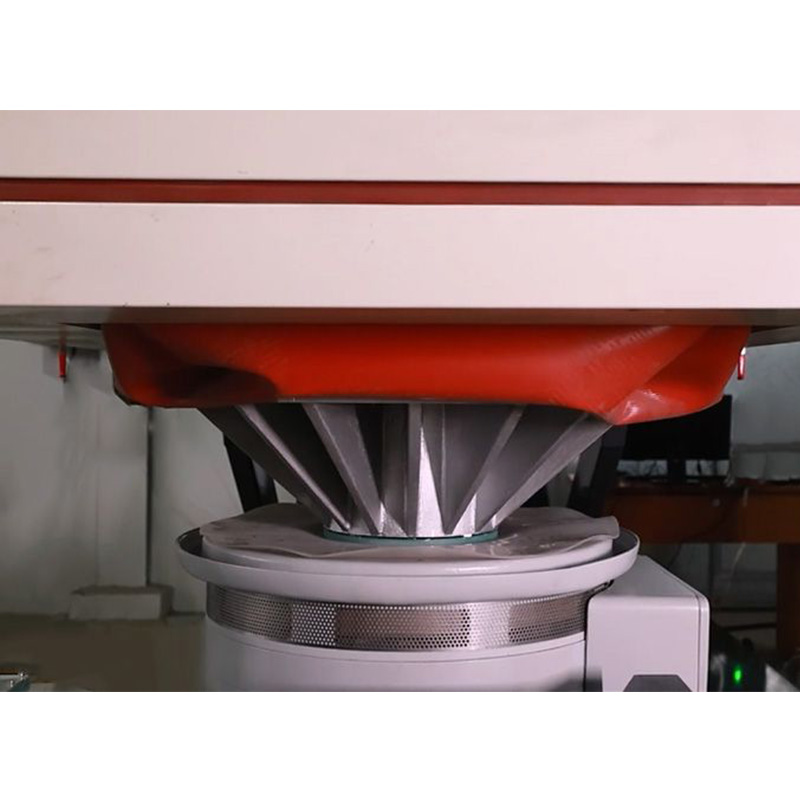

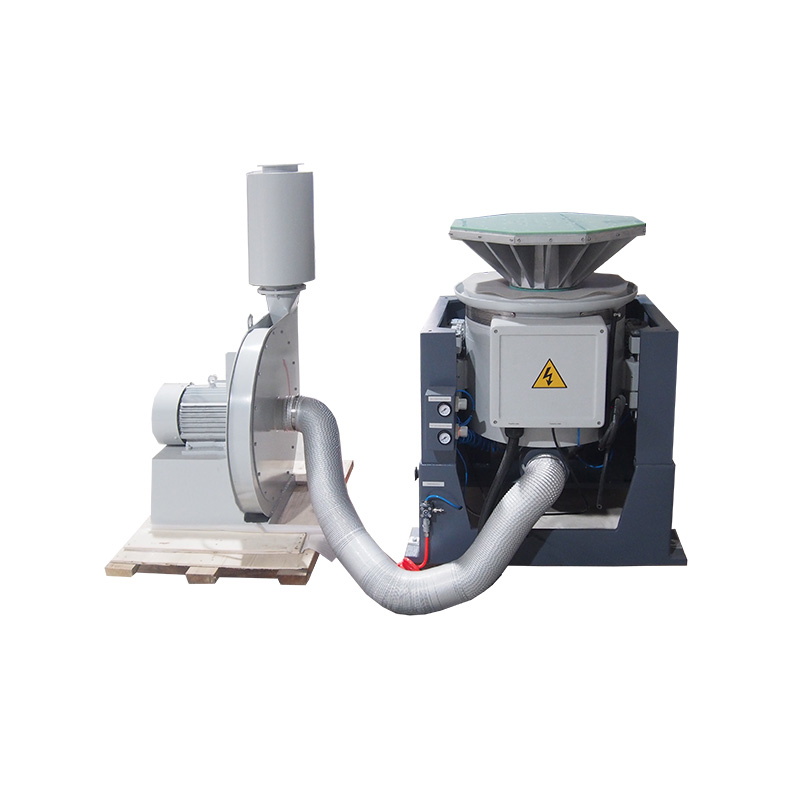

High Load Shaker Capability: 240 mm dynamic diameter shaker delivers up to 500 kg payload capacity, accommodating large or heavy specimens with consistent vibration amplitudes.
Wide Environmental Range: Temperature span of –50 °C to +150 °C (±0.5 °C fluctuation) and humidity range of 30 %–98 % RH (±2.5 % RH deviation) for harsh‑environment simulation.
Rapid Thermal Ramp Rates: Heating and cooling rates up to 5 °C/min enable quick transition between temperature extremes for accelerated stress screening.
Advanced Programmable Controller: PID touchscreen interface with RS232 and USB support for editing 100 programs of 20 segments each, plus automated data export and remote connectivity.
Durable Construction & Safety: 304‑grade stainless‑steel interior, protective‑coated exterior panels, cable ports with plugs, two adjustable shelves, and CE‑style safety features for secure operation.
| Model | THV-1000 |
| Internal Dimension (mm) | 1000*1000*1000 |
| Overall Dimension (mm) | 1800*4600*2600 |
| Temperature Range | -50℃ ～ +150 ℃ |
| Temperature Fluctuation | ± 0.5 ℃ |
| Temperature Deviation | ± 2.0 ℃ |
| Humidity Range | 30% ~ 98% RH |
| Humidity Deviation | ± 2.5% RH |
| Cooling Rate | 5 ℃ / min |
| Exterior material | Steel Plate with protective coating |
| Interior material | SUS304 stainless steel |
| Power supply | 380V 50HZ |
FAQs
Q1: What are the load capacity and workspace dimensions of the LIB Vibration Test Chamber?
A: It provides a 1000 × 1000 × 1000 mm interior, a 240 mm dynamic shaker, and supports up to 500 kg; optional hydraulic lift platforms adjust table height.
Q2: What warranty and after-sales services does LIB provide?
A: LIB provides a 3-year warranty and lifelong maintenance. If equipment problems cannot be solved, we offer free replacement of the test chamber to ensure your operations continue smoothly.
Q3: How does LIB provide shipping and technical support?
A: LIB offers fast and secure worldwide shipping via multiple transport methods, with spare parts typically delivered within 7–15 days. Our professional English-speaking technical team is available 24/7 for ongoing support and troubleshooting. Contact us anytime for reliable assistance.
