Lead Provider of Environmental Test Chamber
—Simulates real-world water intrusion scenarios including low-pressure spray, submersion, and high-pressure jetting per GMW16001.
—Adjustable turntable (1–7 r/min) ensures uniform exposure and dynamic sealing performance evaluation.
—Dual spray system with 30 L/min low-pressure hose and 13 L/min high-pressure nozzle for accurate, repeatable testing.
—Intuitive PID touchscreen controller allows up to 100 programmable test profiles with remote monitoring capability.
Triple Water Intrusion Modes: Supports IPX5 and IPX6 waterproof tests using precision 6.3 mm and 12.5 mm nozzles, accurately replicating medium and high-pressure jet conditions in compliance with IEC 60529.

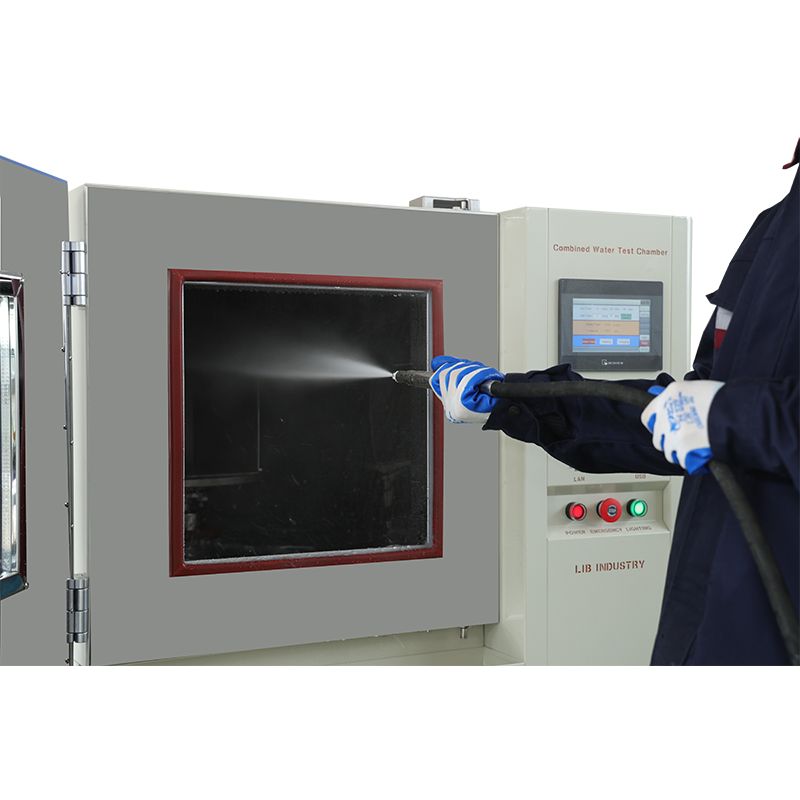

Dual Flow Rates for Precision: Delivers 30 L/min via a 16 mm hose for low-pressure tests and 13 L/min through a 6.35 mm high-pressure nozzle with up to 7600 kPa pressure.
Adjustable Turntable Function: Features a stainless-steel rotating platform with 1–7 r/min speed range, ensuring consistent and even exposure during spray tests.
Programmable Touchscreen Controller: Equipped with a PID color touchscreen interface supporting up to 100 programs with 20 segments each, plus Ethernet connectivity for remote operation.

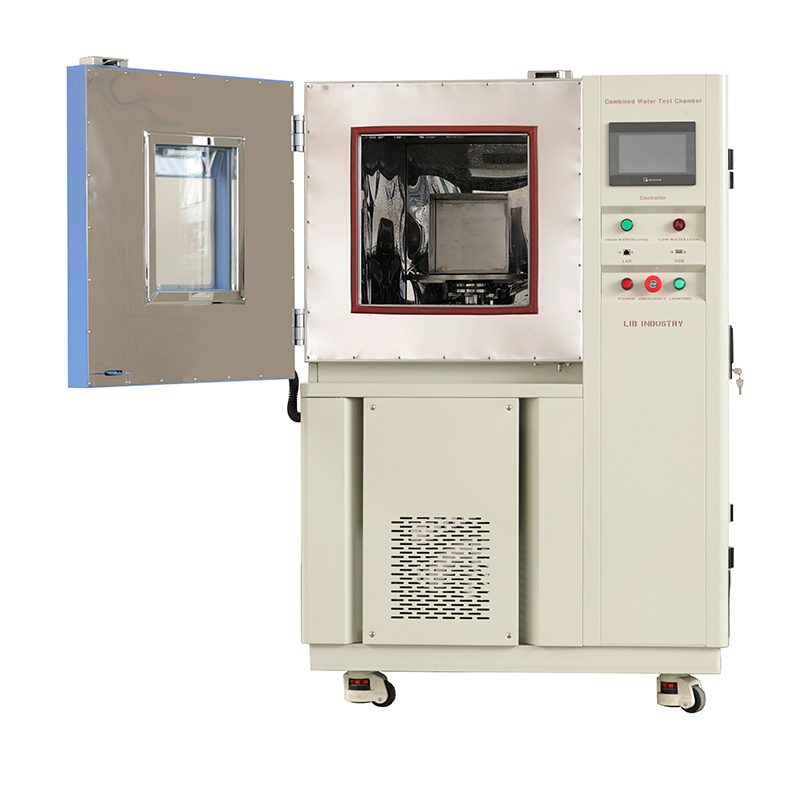

Durable Stainless-Steel Construction: Test chamber made of corrosion-resistant 304 stainless steel with integrated water tank, ensuring long service life and stable performance.
Standard-Compliant Power Supply: Operates on 220V 60Hz single-phase power and includes multiple built-in protections, aligning with automotive-grade test lab safety standards.
| Model | R-300 |
| Turntable Rotation Speed | 1 – 7 r/min (Adjustable) |
| Low pressure Spray | Internal Diameter of Low pressure hose: 16 mm Water Flow Rate：30L/min Minimum test time：3 minutes |
| Water Submersion Test | Water box size (mm)：300*200*200 The height of water：100 mm Minimum test time：1 hour |
| High pressure Spray Test | Internal Diameter of High pressure Nozzle：6.35 mm High pressure Nozzle Type：MEG SSTC2507 High pressure：7600Kpa Water Flow Rate：13L/min |
| Power Supply | 220V 60Hz 1P |
| Standard | GMW16001 |
FAQs
Q1: What types of tests can be performed in the GMW 16001 Water Leak Test Chamber?
A: The chamber performs low-pressure spray, water submersion, and high-pressure jet tests—all in compliance with the GMW16001 automotive waterproofing standard.
Q2: What warranty and after-sales services does LIB provide?
A: LIB provides a 3-year warranty and lifelong maintenance. If equipment problems cannot be solved, we offer free replacement of the test chamber to ensure your operations continue smoothly.
Q3: How does LIB provide shipping and technical support?
A: LIB offers fast and secure worldwide shipping via multiple transport methods, with spare parts typically delivered within 7–15 days. Our professional English-speaking technical team is available 24/7 for ongoing support and troubleshooting. Contact us anytime for reliable assistance.
